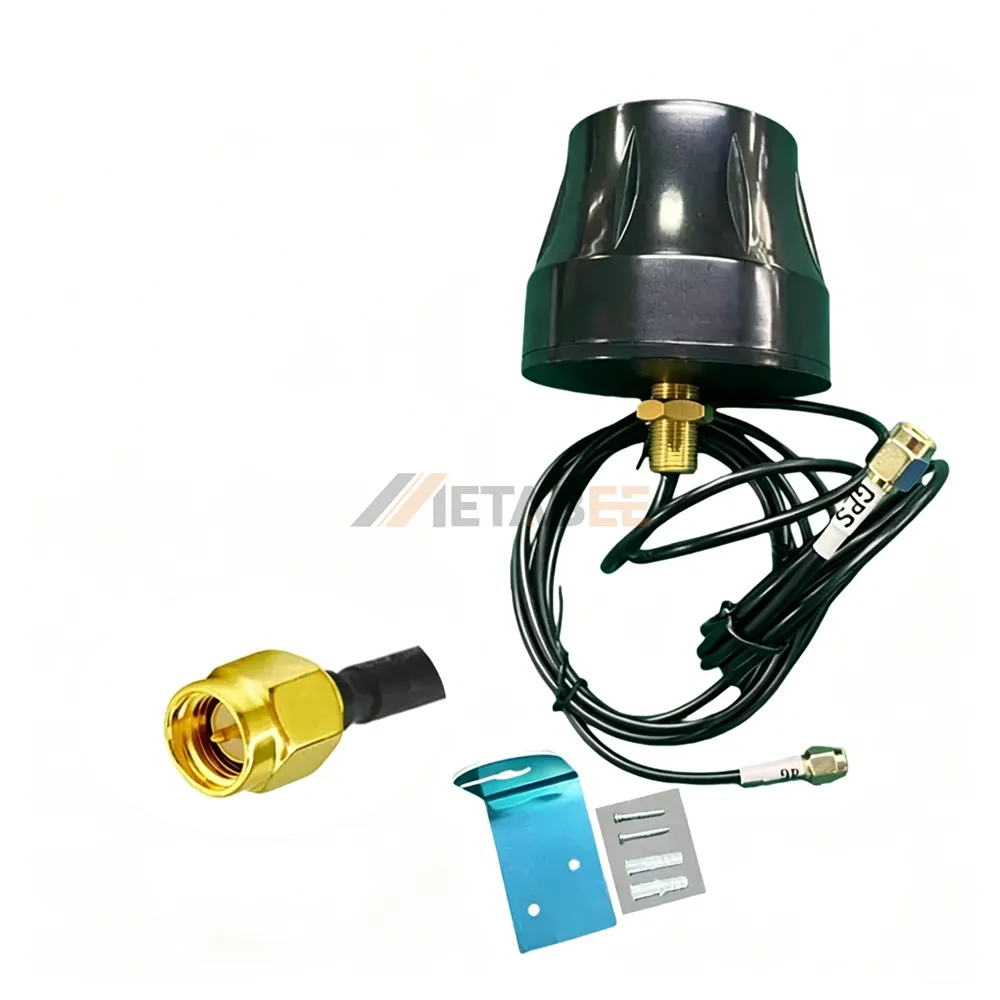

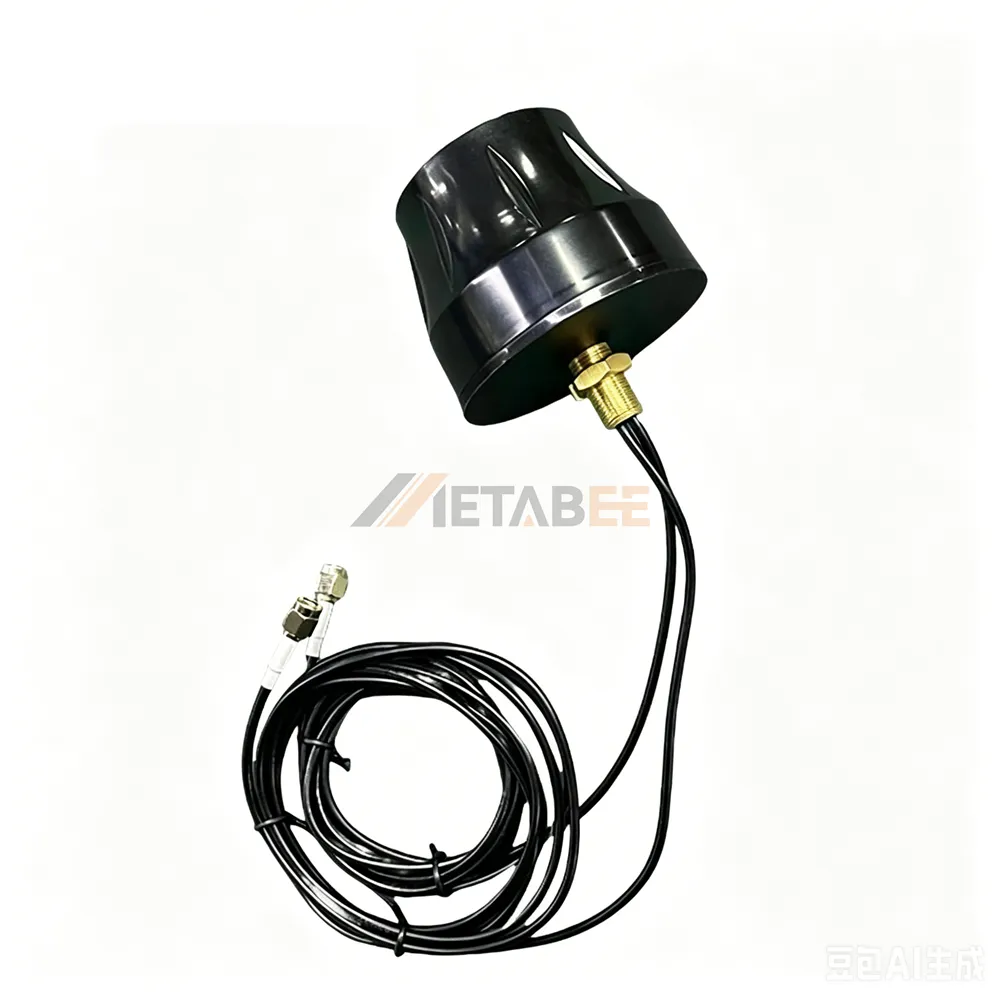

L1 Band GPS/GSM Antenna, SMA Male with RG174 Cable, 1575.42MHz, 4dBi, IP67
Introduction:
The GPS/4G/LTE L1 Band Antenna is engineered for stable high-performance wireless communication and precise GNSS signal reception in demanding environments. Operating at 1575.42 MHz with a 5dBi gain, this antenna delivers enhanced signal strength, reliable positioning accuracy, and efficient LTE connectivity for industrial, automotive, telematics, IoT, and navigation applications. Its omni-directional radiation pattern ensures consistent 360-degree signal coverage, while vertical polarization improves transmission efficiency and reception stability.
Designed with an SMA Male connector and durable RG174 cable, the antenna offers flexible installation and dependable connectivity across a wide range of embedded and outdoor systems. With a VSWR of ≤1.92 and 50 Ohm impedance, it provides optimized signal performance and reduced transmission loss. The rugged IP67-rated enclosure protects against water and dust, making it suitable for harsh operating conditions.
Built for long-term reliability, this antenna supports a maximum input power of 50W and operates efficiently in temperatures ranging from -30°C to 75°C. Its compact structure, robust construction, and stable RF performance make it an ideal solution for GPS, GNSS, LTE, and wireless communication systems requiring dependable outdoor operation.
Key Features
- 1575.42 MHz GPS/GNSS/LTE L1 frequency support
- 5dBi high-gain antenna for improved signal reception
- Omni-directional coverage with vertical polarization
- SMA Male connector with durable RG174 cable
- IP67 waterproof and dustproof industrial design
- Wide operating temperature range from -30°C to 75°C
General Information:
| Product No.: | YC-GP00066 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male or Customized | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1575.42 MHz | |
| Gain: | 5dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this GPS/4G/LTE L1 Band Antenna:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
