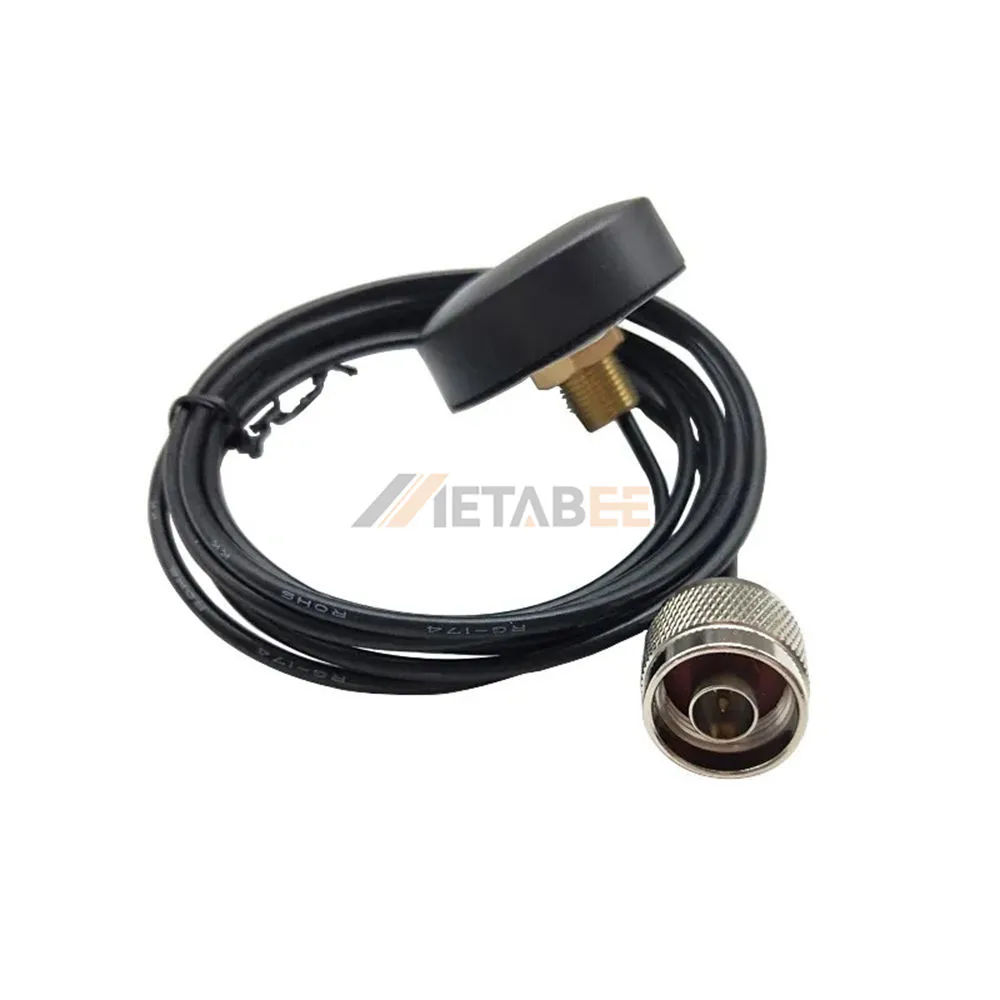

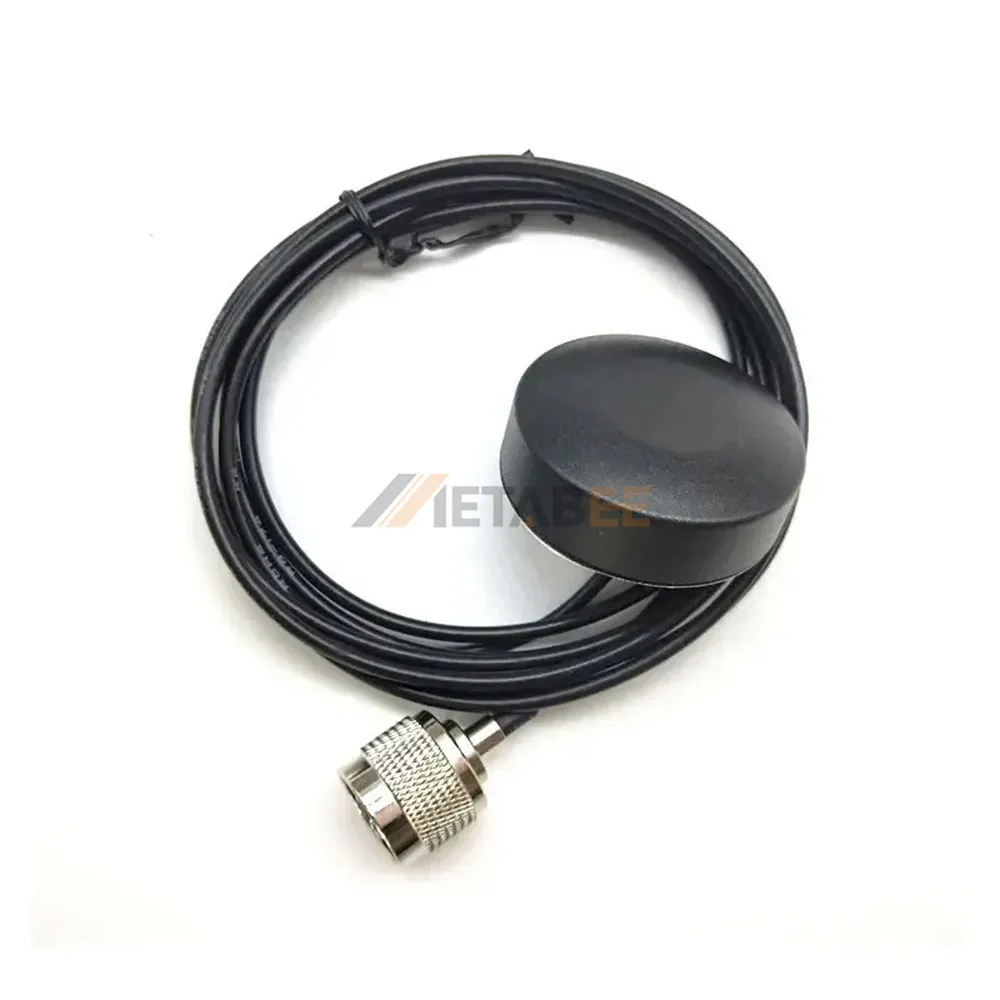

Active L1 Band GPS Antenna, N-Male with RG174 Cable, 1575.42MHz, 7dBi, IP67
Introduction:
This active L1 band GPS antenna is designed for high-performance satellite positioning and stable GNSS signal reception at 1575.42 MHz. Featuring an omnidirectional radiation pattern and vertical polarization, it delivers reliable coverage for navigation, tracking, automotive, and industrial communication systems.
With a 7dBi gain and 50 Ohm impedance, the antenna provides enhanced signal strength and efficient RF transmission. A VSWR of ≤1.92 minimizes signal reflection to ensure stable and accurate positioning performance in demanding operating environments. The N-Male connector with RG174 cable enables secure connectivity and flexible installation for various GPS devices and GNSS systems.
Built for rugged outdoor applications, the antenna features an IP67-rated waterproof and dustproof enclosure for long-term durability. Operating reliably from -30°C to +75°C, it is ideal for harsh industrial, marine, and outdoor deployment conditions.
Key Features
- 1575.42 MHz GPS L1 band for accurate positioning
- 7dBi gain with omnidirectional signal coverage
- Vertical polarization for stable GNSS signal reception
- VSWR ≤1.92 with 50 Ohm impedance for optimized RF performance
- IP67-rated waterproof and dustproof outdoor design
- N-Male connector with RG174 cable for secure installation
General Information:
| Product No.: | GP00019 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Male | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1575.42 MHz | |
| Gain: | 7dBi | |
| VSWR: | ≤1.9 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this Active L1 Band GPS Antenna:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
