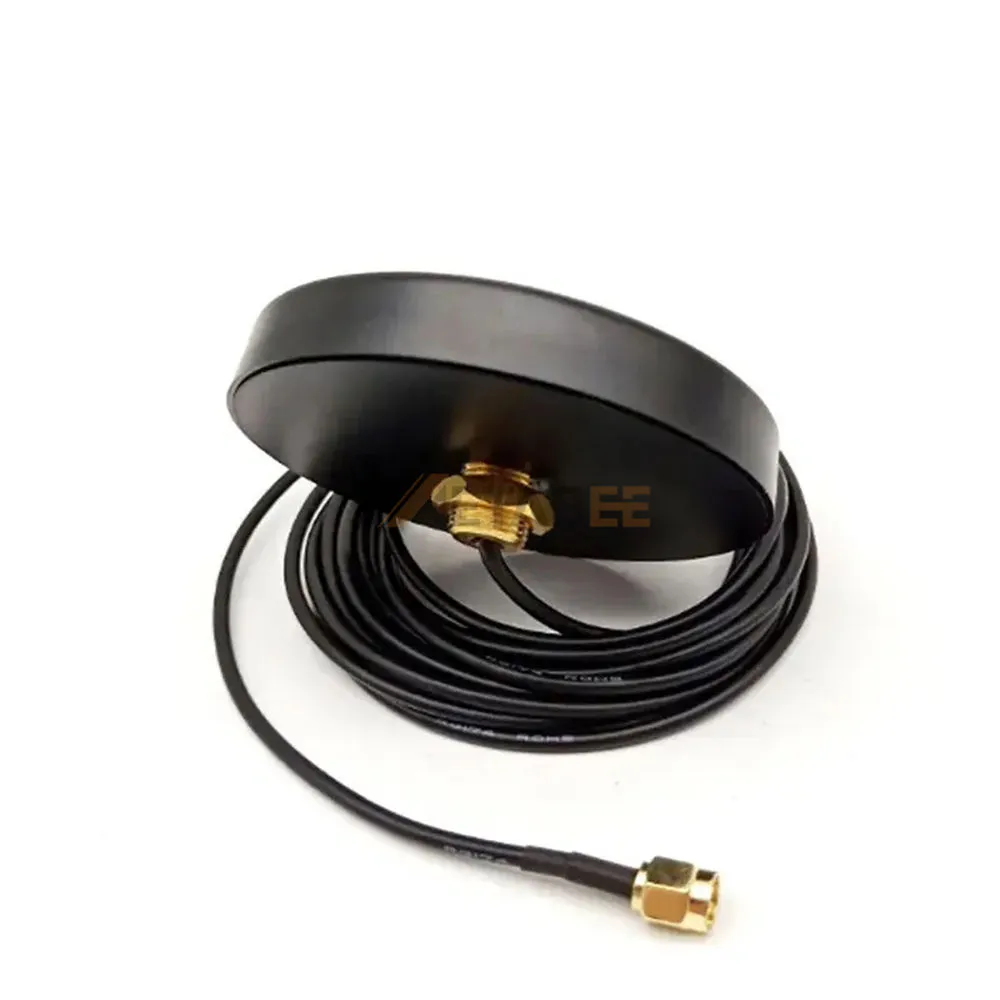

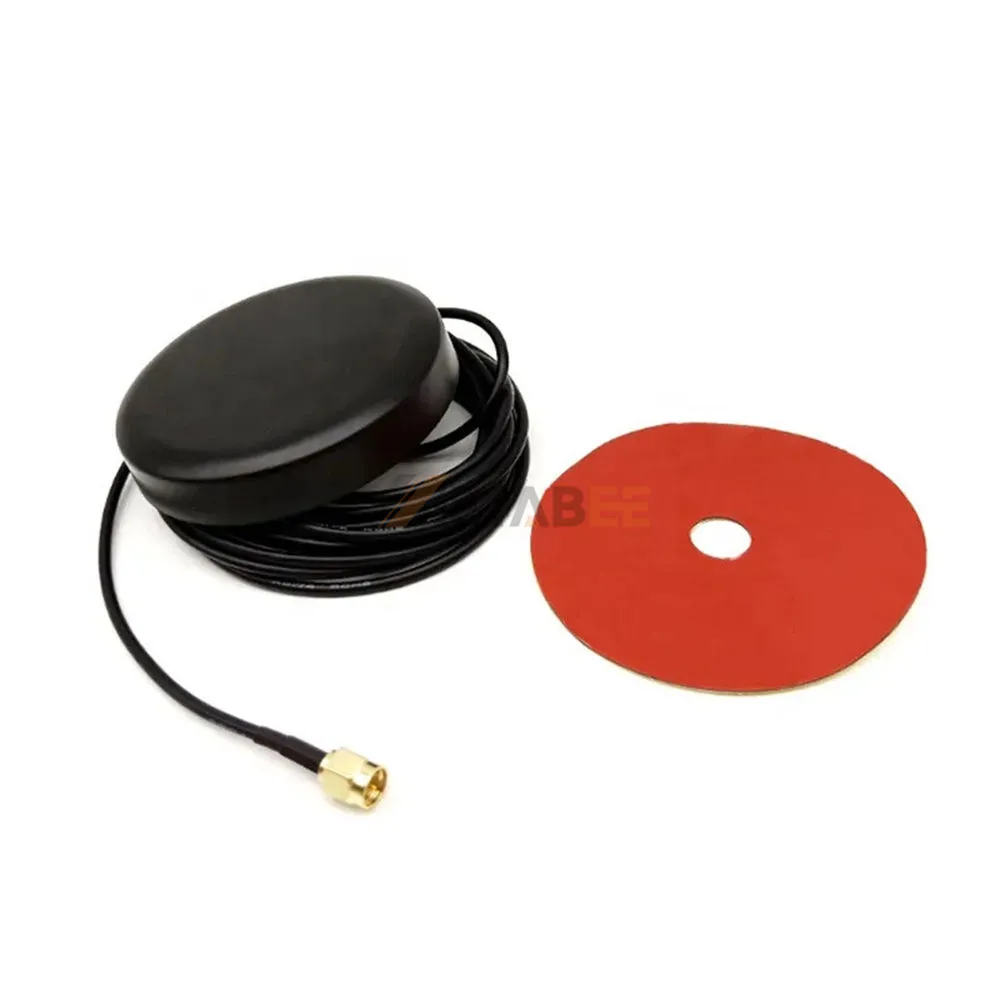

L1 Band GPS Active Antenna with SMA Male Connector, 1575.42MHz, 5dBi, IP67
Introduction:
Enhance your precise positioning and timing systems with this high-performance L1 Band GPS Active Antenna, engineered for 1575.42 MHz. Delivering a solid 5dBi gain and a true omnidirectional radiation pattern, it ensures stable satellite lock even in challenging signal environments. The built-in low-noise amplifier (LNA) actively boosts weak GNSS signals, while the IP67-rated housing provides complete dust-tight protection and withstands water immersion up to 1 meter – ideal for outdoor fleet management, marine navigation, and base station applications.
Built for reliability in extreme conditions, this antenna operates seamlessly from -30°C to +75°C. The SMA Male connector guarantees a secure, vibration-resistant link to your receiver, with ≤1.92 VSWR and 50 Ohm impedance, minimizing signal reflection loss. With a maximum input power of 50W and vertical polarization, it delivers consistent, interference-free L1 band performance for GPS, GLONASS, and Galileo systems.
Key Features
- L1 Band 1575.42 MHz – Optimized for GPS/GNSS precision positioning
- 5dBi Gain & Omnidirectional – Stable signal reception from all directions
- SMA Male Connector – Universal, secure RF interface
- IP67 Rated – Fully dust-tight and waterproof for harsh outdoor use
- Wide Temperature Range – Reliable operation from -30°C to +75°C
- Low VSWR ≤1.92 & 50W Max Power – High-efficiency, low-reflection performance
General Information:
| Product No.: | YC-GP00016 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |
| Size: | – | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1575.42 MHz | |
| Gain: | 5dBi | |
| VSWR: | ≤1.9 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this L1 Band GPS Active Antenna with SMA Male Connector:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
