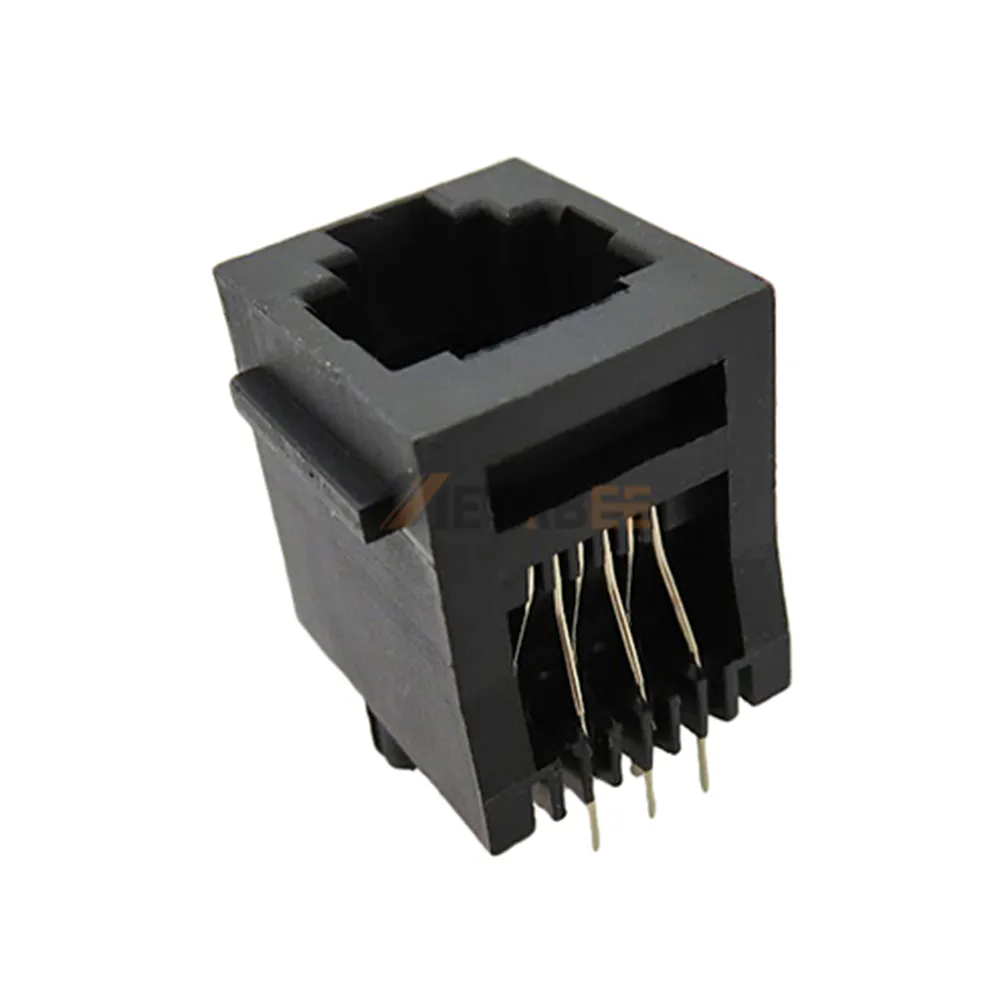

Plastic RJ11 6P6C 6 Pin Telephone Female Socket, 1 Port, Unshielded, Through Hole, Vertical, Tab-Up, No LED
Introduction:
This is a single port vertical plastic RJ11 6P6C 6 pin telephone female socket designed for stable top-entry through hole mounting on networking circuit boards. It features a durable black PBT housing that ensures high structural stability while providing a superior insulation resistance of 1000 mohms. The Phosphor Bronze contacts include a premium Gold plating to maintain high conductivity and a consistent 1.5A current rating for voice and data signals. Utilizing a Tab-Up configuration, this unshielded component effectively saves board surface area while handling dielectric voltages up to 1500 VDC. Technicians utilize this reliable modular interface for standard telephone systems and telecommunication hardware requiring secure vertical board-to-cable connectivity.
Key Features
- RJ11 6P6C Interface: Supports standard modular connectivity for voice and data.
- Vertical Mounting Design: Optimizes top-entry connectivity for compact board layouts.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- Durable PBT Material: Performs reliably across standard industrial temperature ranges.
- High Current Support: Handles up to 1.5A for efficient power delivery.
Main Specifications:
General Information:
| Product No.: | MTJ-663X1 | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P6C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000 mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

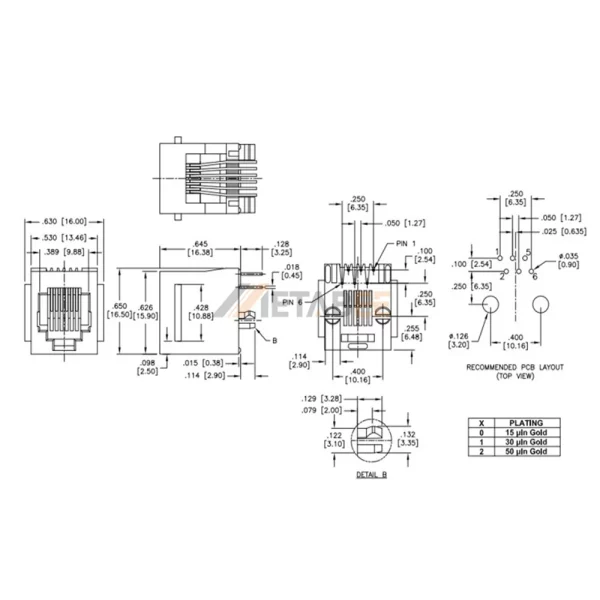

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
