Introduction:
This PCB vertical dip pogo pin is a through hole spring connector designed for perpendicular electrical interfaces. It features a vertical orientation that provides a secure mechanical bond to the circuit board, making it suitable for applications undergoing frequent vibration or physical stress. The pin supports a 5A current and 12V DC rating, utilizing gold plated brass contacts to maintain a maximum resistance of 20 mohms. With a 1mm working stroke and 70g spring force, it ensures consistent conductivity over a lifespan of up to 1,000,000 cycles. This component serves as a robust power or signal link for battery charging and industrial electronic modules within a wide -55°C to +125°C temperature range.
Key Features
- Secure Mounting: Through hole design provides high mechanical retention force.
- Durable Life: Tested up to 1,000,000 cycles for long service life.
- Vertical Layout: Perpendicular orientation optimizes space on complex PCB boards.
- Gold Plated: Brass contacts prevent oxidation and maintain stable conductivity.
- Wide Range: Functions reliably from -55°C to +125°C extreme temperatures.
Main Specifications:
General Information:

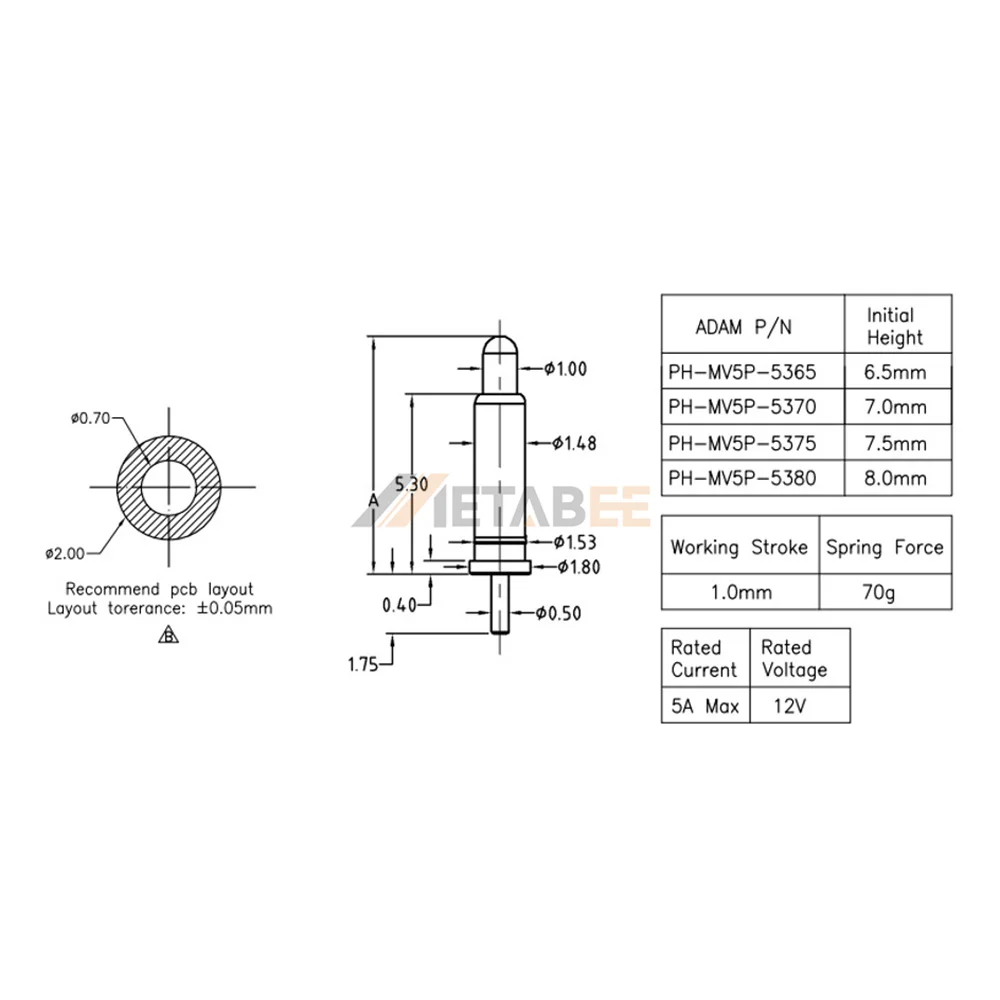

| Product No.: | PH-MV5P-XXXX | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Initial Height (mm): | 6.5mm/7mm/7.5mm/8mm | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70gf |
Electrical:
| Rated Current: | 5A Max | |
| Rated Voltage: | 12V | |
| Contact Resistance: | 20mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, Gold plated | |
| Barrel Material: | Brass, Gold plated | |
| Spring Material: | SUS Surface treatment |
Environmental:
| Operating Temperature: | -55°C to +125°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
