PCB Mount RJ45 UTP Jack 8P8C Module, One Port, Unshielded, Tab-Down, Through Hole, R/A, No LED
Introduction:
This is a single port pcb mount RJ45 UTP jack module designed for secure right angle through hole attachment to printed circuit boards. It features a black hi-temp thermoplastic housing that maintains structural integrity during industrial wave soldering processes. Phosphor Bronze contacts with Gold over Nickel plating ensure a low-resistance path and a consistent 1.5A current rating. Utilizing a Tab-Down configuration, this unshielded unit effectively reduces vertical clearance while providing 500MΩ Min insulation resistance. Technicians utilize this reliable utp jack module for standard networking hardware and telecommunication systems needing stable 8P8C connectivity.
Key Features
- Tab-Down Layout: Optimizes vertical space for specialized PCB designs.
- Gold Plated Contacts: Ensures high conductivity and lasting signal stability.
- 500MΩ Insulation: Maintains high resistance for enhanced electrical safety.
- Hi-Temp Thermoplastic: Survives intense heat during industrial wave soldering.
- 8P8C UTP Port: Provides standard unshielded modular connectivity for networks.

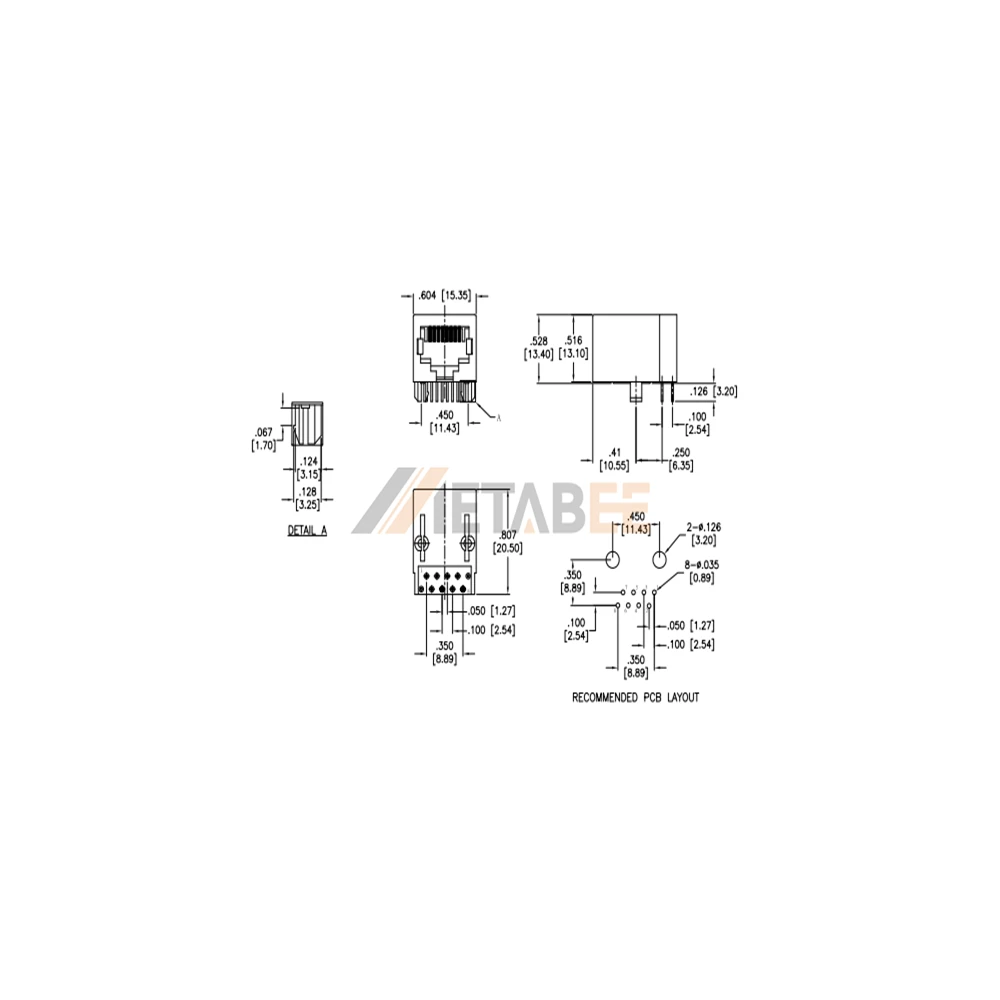

Main Specifications:
General Information:
| Product No.: | MTJ-88GX1-P285C-HT-D | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Phosphor Bronze, tin plated |
Environmental:
| Operating Temperature: | -40℃ to +70℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
