Introduction:
High-density networking relies on the multiple panel rj45 sockets, designed as a 1×2 ganged interface for industrial systems. Industrial applications benefit from the wide -40C to +125C temperature range for stable data transmission. Nickel plated copper alloy shielding provides a full enclosure to block electromagnetic interference effectively. Visual network tracking depends on integrated green LED indicators located within the right angle profile. Secure mechanical termination utilizes a through hole solder configuration to ensure board stability. Furthermore, gold plated copper alloy contacts strictly maintain electrical resistance below 20 miliohms for long-term signal clarity. Modern telecommunication equipment and automation hubs frequently incorporate this resilient component.
Key Features
- 1×2 Ganged Port: Connects two Ethernet links side-by-side efficiently.
- Industrial Temperature Range: Operates reliably from -40C to +125C.
- Full Metal Shielding: Blocks severe electromagnetic interference for signals.
- Integrated Green LEDs: Built-in indicators track precise network status.
- Low Resistance Contacts: Gold finish ensures conductivity below 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88TX1-FSD-PG-LD | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Ganged | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +125°C | |
| Flammability Rating: | UL 94 V-0 |

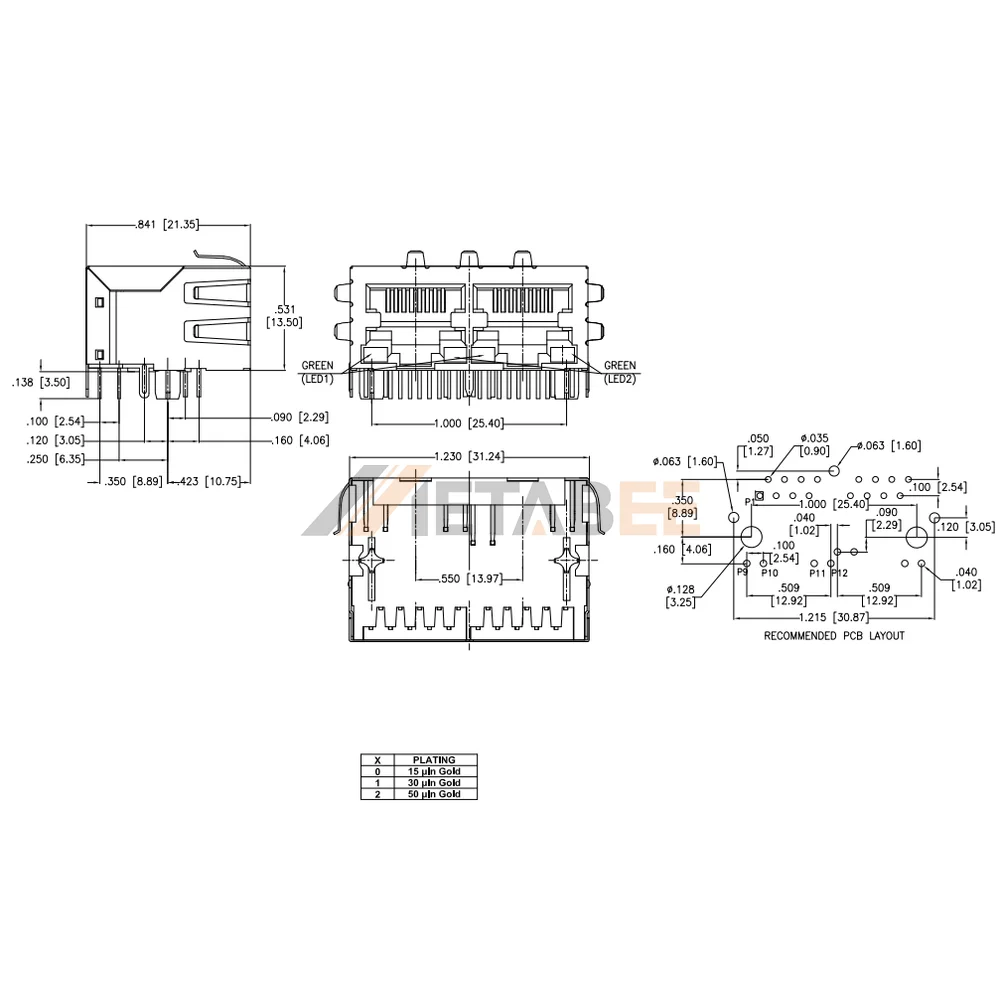

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
