Modular Jack RJ45 Network Socket with LEDs, 8P8C, 1 Port, Shielded, Tab-Up, Through Hole, R/A, Green/Green
Introduction:
This is a single port modular jack rj45 network socket designed for stable through hole mounting on high-speed networking circuit boards. It features a full brass shield to block electromagnetic interference and safeguard signal integrity in busy data environments. The internal housing is made of hi-temp thermoplastic, allowing the connector to withstand intense industrial soldering heat without warping. Integrated dual green LEDs provide instant visual feedback for link activity across a wide temperature range of -40°C to +85°C. We offer various configurations and customizable LED color combinations to fit specific project diagnostic needs. Technicians utilize this reliable interface for stable networking in telecommunication equipment and industrial automation systems.
Key Features
- Full Metallic Shielding: Metallic shell blocks external interference for signal integrity.
- Integrated Link LEDs: Dual green lights enable immediate port status monitoring.
- Hi-Temp Thermoplastic: Survives intense heat during industrial wave soldering processes.
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
- Gold Plated Contacts: Ensures high conductivity and lasting signal stability.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-FSM-SMT-PG-LD | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

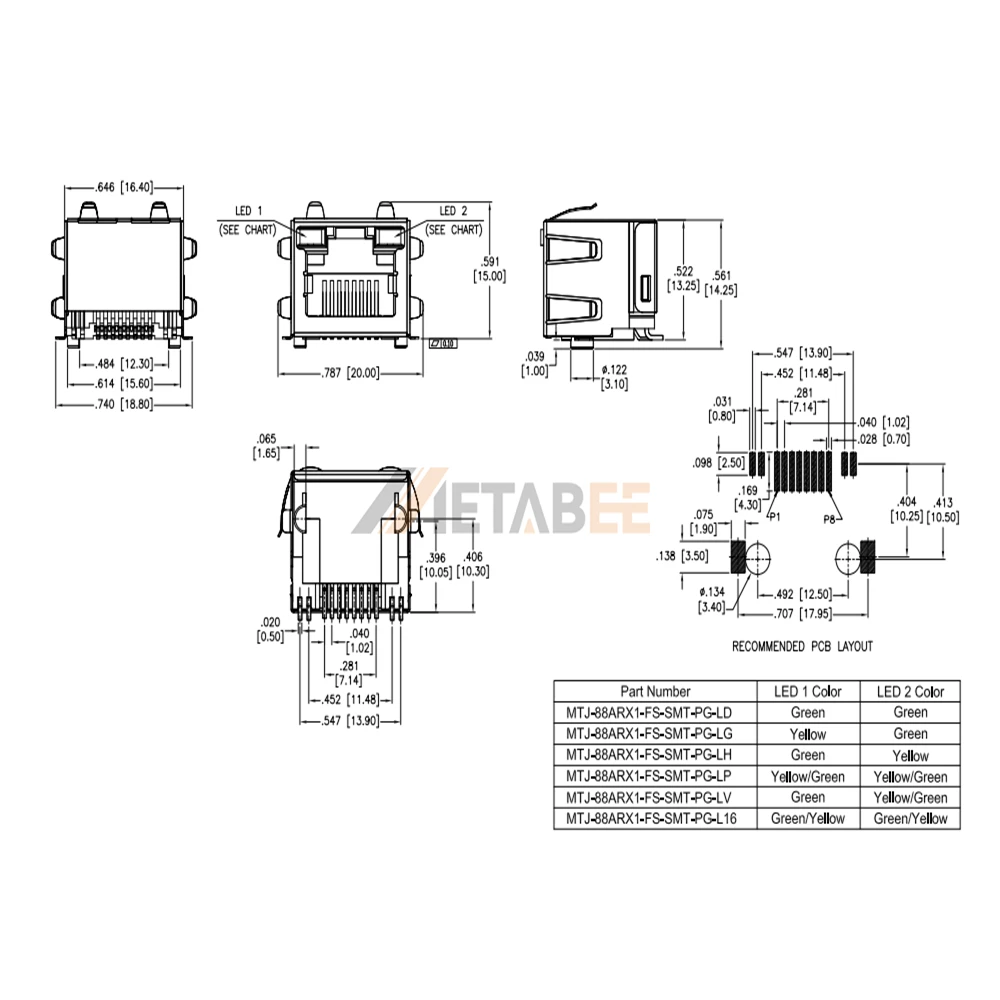

Structure of Modular Jack
