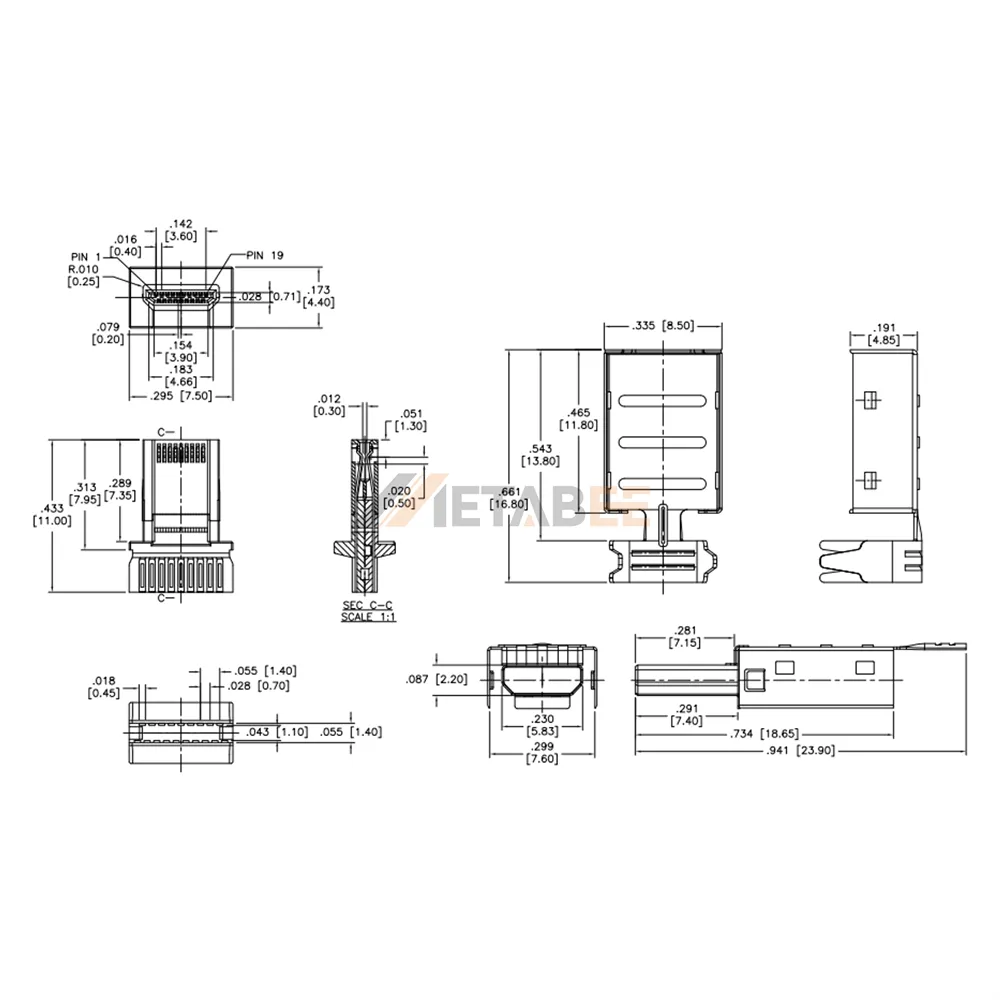

Micro HDMI Type D Male Connector, Solder Type, Straight
Introduction:
This micro hdmi type d male connector is a compact 19-pin plug designed for space-constrained electronic applications. Featuring a type d interface, single-port configuration, straight mounting orientation, and solder termination, it provides reliable electrical connections and secure integration into compatible devices and cable assemblies.
With a rated current of 0.5a and rated voltage of 40v, this micro hdmi connector delivers stable performance for high-speed digital signal applications. The ul94-v0 flame-retardant construction enhances safety, while the -55°c to 85°c operating temperature range supports reliable operation across demanding environments.
Key Features
- Micro hdmi type d interface
- 19-pin single-port plug
- Straight mounting orientation
- 0.5a rated current and 40v rated voltage
- Ul94-v0, -55°c to 85°c operating range
Main Specifications:
General Information:
| Product No.: | MCHDMI-PLUG-OM1 | |
| Connector Series: | Micro HDMI Connectors | |
| Connector Type: | Type D | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Male | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Straight | |
| Mounting Method: | N/A | |
| Mounting Feature: | N/A | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this Micro HDMI Type D Male Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
