Introduction:
This pogo pin charging cable integrates a USB type-a male connector with a single circular contact pin for efficient power delivery. The right angle pogo terminal is constructed from brass with a 3u” gold plating to ensure a maximum contact resistance of 30 mohms. Supporting a 2A current at 15V dc, the 1000mm pvc cable provides a reliable link for specialized hardware and consumer devices. A working stroke of 0.7mm is paired with a 70gf spring force to maintain stable electrical contact over 30,000 compression cycles. This assembly facilitates secure charging in compact electronic systems requiring a low-profile interface.
Key Features
- Efficient Power: Supports 2A current for 15V dc charging tasks.
- Durable Plating: 3u” Gold finish prevents brass contact oxidation.
- Long Reach: 1000mm PVC cable offers flexible device connection.
- Reliable Force: Internal spring maintains stable 70gf contact pressure.
- Space Saving: Right angle orientation optimizes tight device layouts.

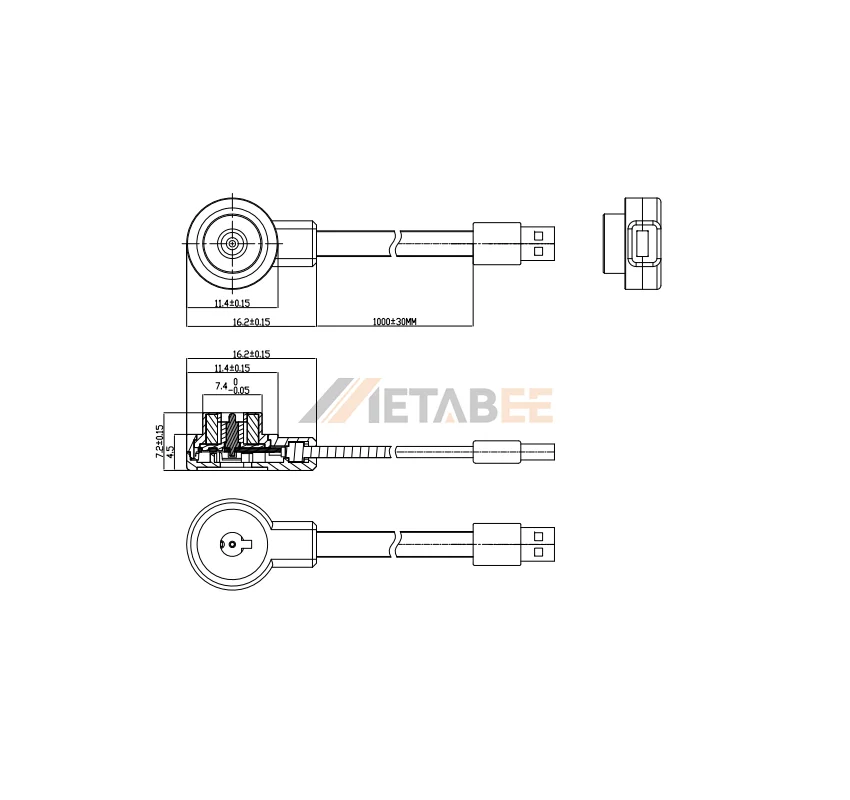

Main Specifications:
General Information:
| Product No.: | CA-RA2-PHR-32572-M | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 1 | |
| Connector 2-Shape: | Circular | |
| Connector 2-Orientation: | Right Angle | |
| Contact Material: | Brass | |
| Contact Plating: | 3u” Gold plated over nickel | |
| Cable Type: | Flat Cable | |
| Wire Gauge: | N/A | |
| Cable Length: | 1000±30 mm | |
| Jacket Material & Color: | N/A |
Electrical:
| Rated Current: | 2A Max | |
| Rated Voltage: | 15V DC | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric Withstanding Voltage: | 100 VRMS |
Mechanical:
| Contact Force: | 70gf max | |
| Working Stroke: | 0.7mm | |
| Full Stroke: | N/A | |
| Durability: | 30,000 cycles min |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
