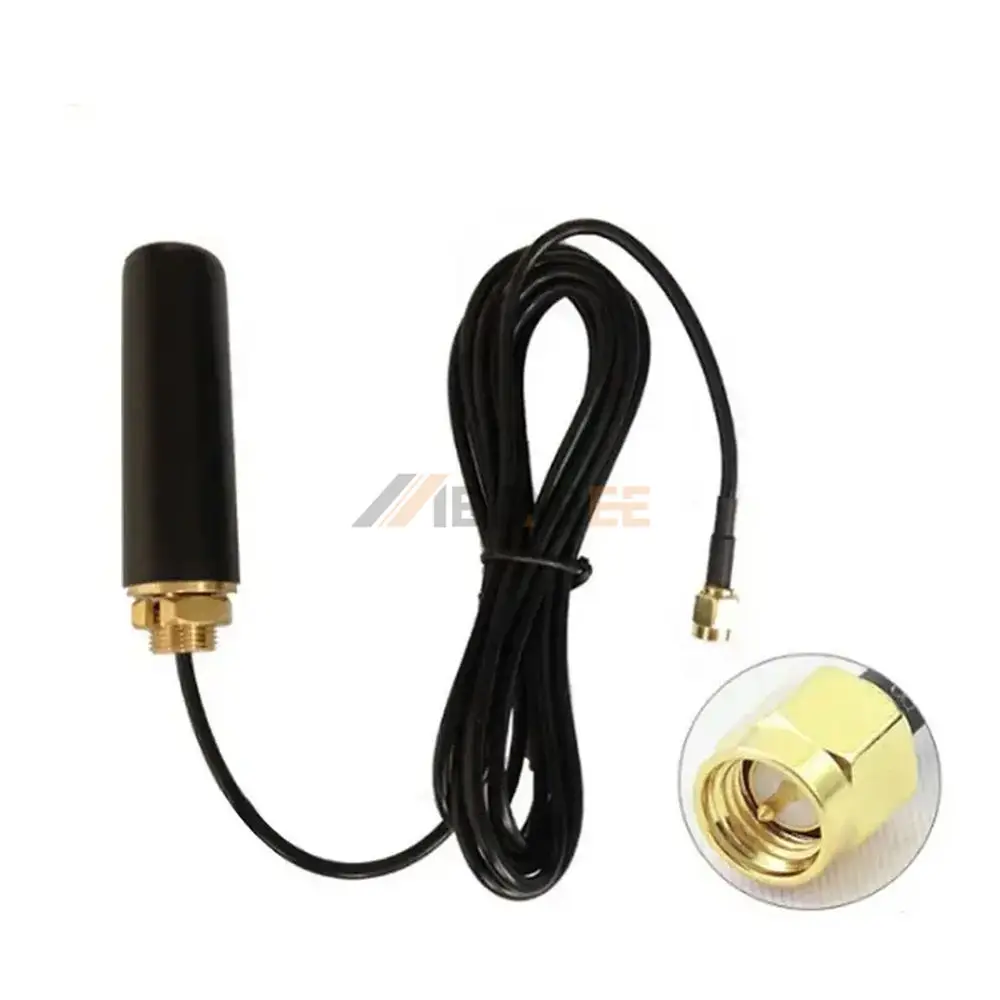

L2 Band GPS Outdoor Antenna, SMA Male with RG174 Cable, 1227.60 MHz, 2dBi, IP67
Introduction:
The L2 Band GPS Outdoor Antenna is engineered for reliable GNSS signal reception in demanding outdoor environments. Operating at 1227.60 MHz, this high-performance antenna delivers stable positioning performance for navigation, tracking, telematics, and precision timing applications. With a 2dBi gain and omni-directional radiation pattern, it ensures consistent signal coverage from multiple directions, making it suitable for both fixed and mobile installations.
Designed with vertical polarization and a low VSWR of ≤1.92, the antenna provides efficient signal transmission and reduced signal loss. The SMA Male connector with RG174 cable enables secure connectivity and flexible integration with GPS/GNSS systems. Its rugged IP67-rated enclosure offers excellent resistance against dust, water, and harsh environmental conditions, ensuring long-term outdoor reliability.
Built for industrial and commercial applications, this GPS outdoor antenna supports multi-band operation and features a 50 Ohm impedance with a maximum input power of 50W. The antenna operates reliably within a wide temperature range from -30°C to 75°C, making it ideal for vehicle navigation, remote monitoring, marine systems, and outdoor communication equipment.
Key Features
- 1227.60 MHz L2 band GPS/GNSS antenna
- 2dBi gain with omni-directional coverage
- Vertical polarization for stable signal reception
- SMA Male connector with RG174 cable
- Rugged IP67 waterproof outdoor design
- Wide operating temperature: -30°C to 75°C
General Information:
| Product No.: | YC-GP00033 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male or Customized | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |
| Size: | – | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1227.60 MHz | |
| Gain: | 2dBi | |
| VSWR: | ≦1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this L2 Band GPS Outdoor Antenna, SMA Male with RG174 Cable:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
