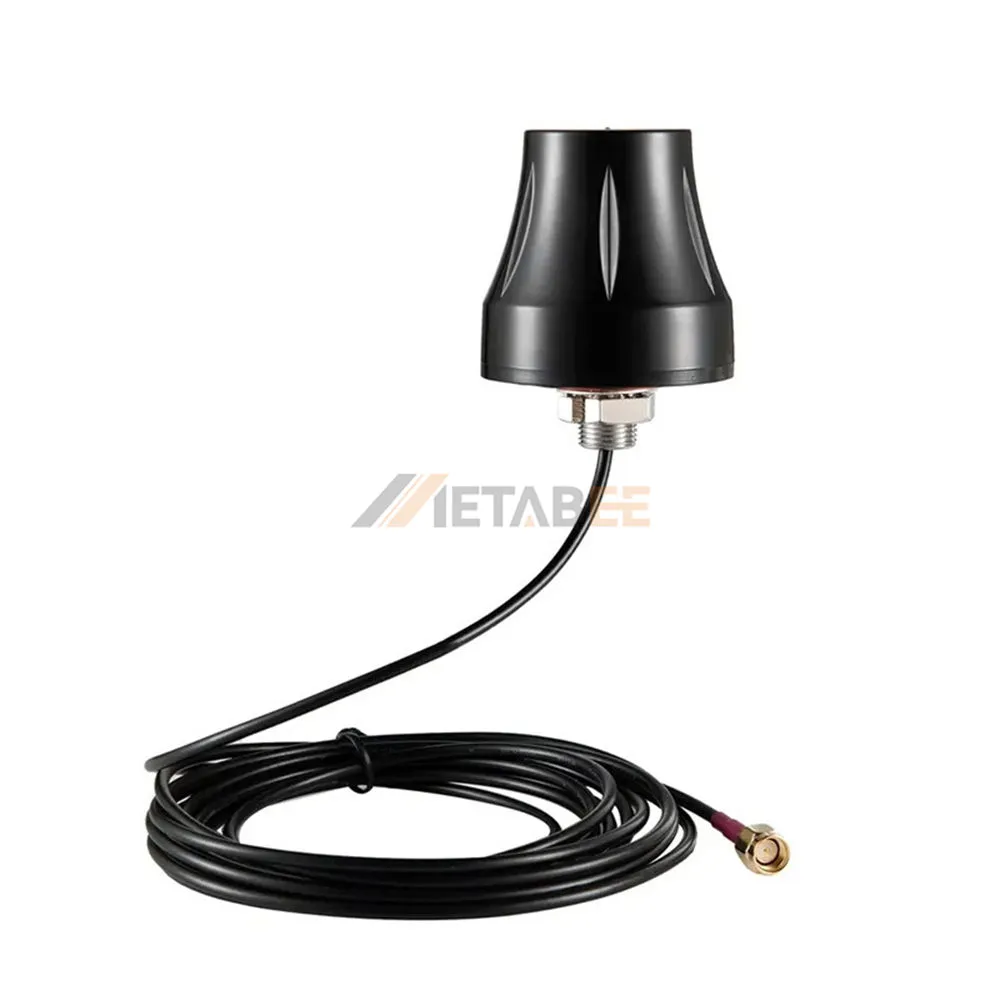

L1 Band GPS Waterproof Antenna, SMA Male with RG174 Cable, 1575.42MHz, 5dBi
Introduction:
This L1 band GPS waterproof antenna is designed for stable and accurate satellite positioning at 1575.42 MHz. Featuring an omnidirectional radiation pattern and vertical polarization, it delivers reliable GNSS signal reception for navigation, fleet management, automotive, and tracking applications.
With a 5dBi gain and 50 Ohm impedance, the antenna ensures efficient RF transmission and enhanced signal stability. A VSWR of ≤1.92 minimizes signal reflection and improves overall system performance. The SMA male connector combined with an RG174 cable enables flexible integration with a wide range of GPS devices and GNSS systems.
Built for demanding outdoor environments, the antenna features an IP67-rated waterproof and dustproof enclosure for long-term durability. It operates reliably within a temperature range of -30°C to +75°C, making it suitable for industrial, marine, and outdoor communication applications.
Key Features
- 1575.42 MHz GPS L1 frequency for precise positioning
- 5dBi gain with omnidirectional signal coverage
- Vertical polarization for stable GNSS reception
- VSWR ≤1.92 with 50 Ohm impedance for efficient performance
- IP67-rated waterproof and dustproof protection
- SMA Male connector with RG174 cable for flexible installation
General Information:
| Product No.: | YC-GP00036 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male or Customized | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |

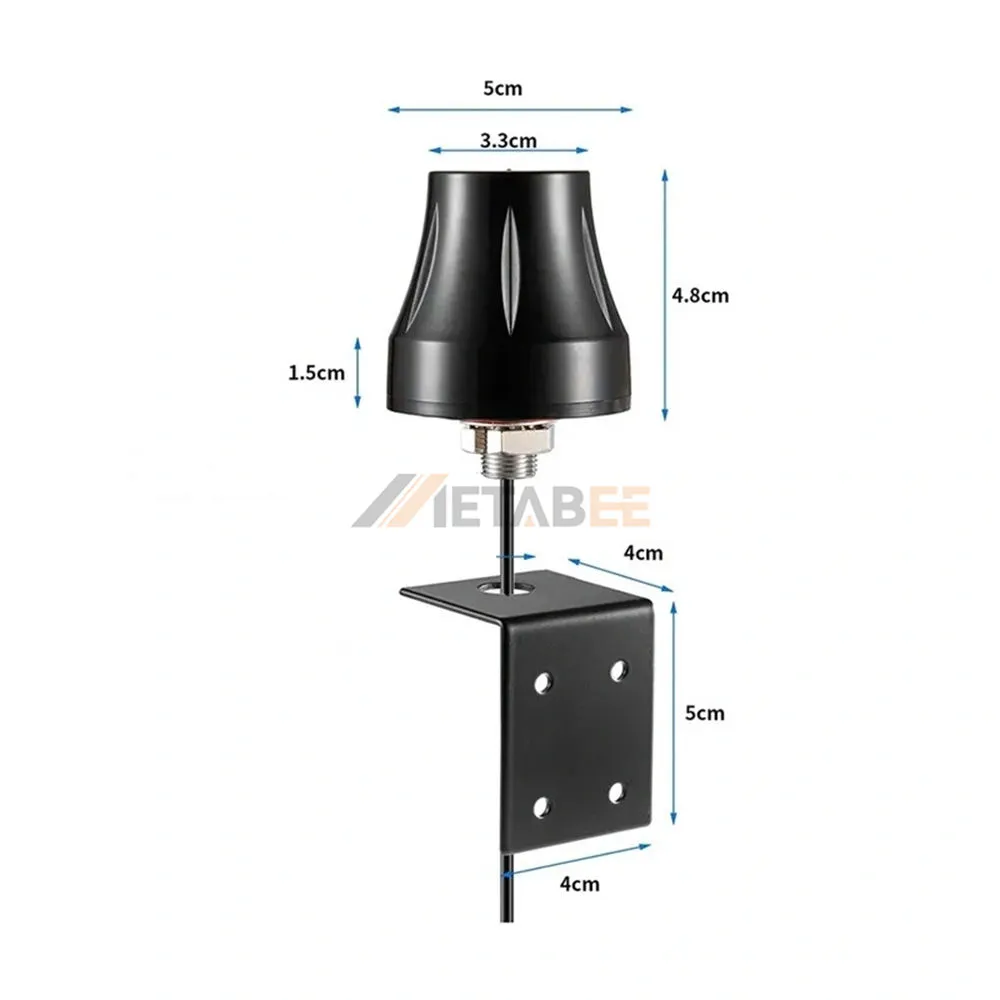

| Size: | – | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1575.42 MHz | |
| Gain: | 5dBi | |
| VSWR: | ≦1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this L1 Band GPS Waterproof Antenna:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
