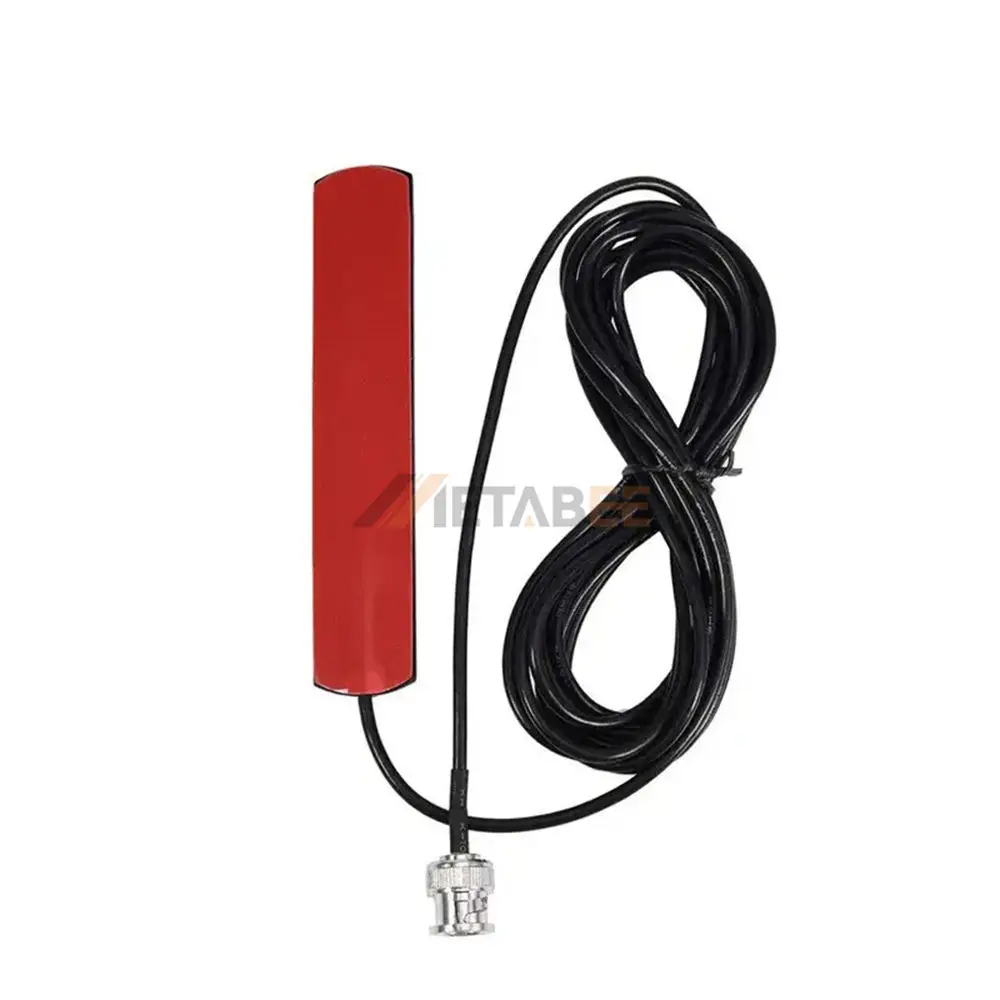

L1 Band GPS Patch Antenna, BNC Male with RG174 Cable, 1575.42MHz, 3dBi, IP67
Introduction:
Optimize your GPS L1 Band positioning with our L1 Band GPS Patch Antenna, meticulously engineered for superior signal acquisition and resilience. This antenna provides consistent and accurate navigation data, essential for applications demanding high reliability in various environmental conditions. Its omni-directional radiation pattern ensures broad coverage, making it an indispensable component for systems requiring unwavering connectivity.
Operating precisely at 1575.42 MHz, this antenna features a robust 3dBi gain, ensuring clear and stable signal reception within the GPS L1 spectrum. With a Voltage Standing Wave Ratio (VSWR) of ≤1.92 and vertical polarization, it minimizes signal degradation and maximizes operational efficiency. The design accommodates a maximum input power of 50W and maintains a standard 50 Ohm impedance, ensuring broad compatibility. Connectivity is secured via a BNC Male connector with an RG174 cable, offering reliable and low-loss transmission. The IP67 rating provides comprehensive protection against dust and water, enabling consistent performance across an operating temperature range of -30 °C to 75 °C.
Key Features
- L1 Band Precision: Optimized for 1575.42 MHz GPS L1 signal reception.
- Reliable 3dBi Gain: Enhances signal strength for consistent performance.
- Omni-directional Pattern: Guarantees extensive signal coverage.
- Rugged IP67 Rating: Offers complete protection against environmental elements.
- Broad Temperature Range: Operates effectively from -30 °C to 75 °C.

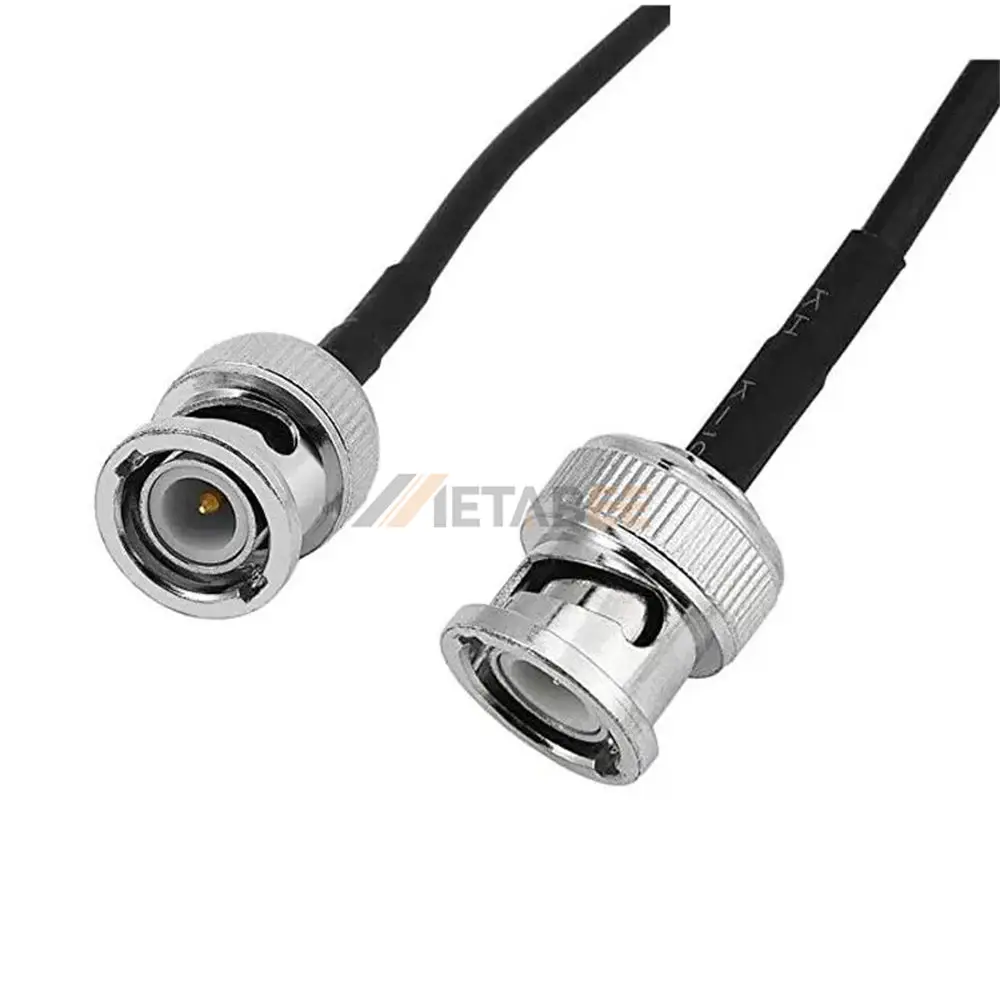

- BNC Male Connector: Ensures secure and efficient connectivity with RG174 cable.
General Information:
| Product No.: | YC-GP00015 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | BNC Male | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |
| Size: | – | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1575.42 MHz | |
| Gain: | 3dBi | |
| VSWR: | ≦1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this L1 Band GPS Patch Antenna, BNC Male with RG174 Cable:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
