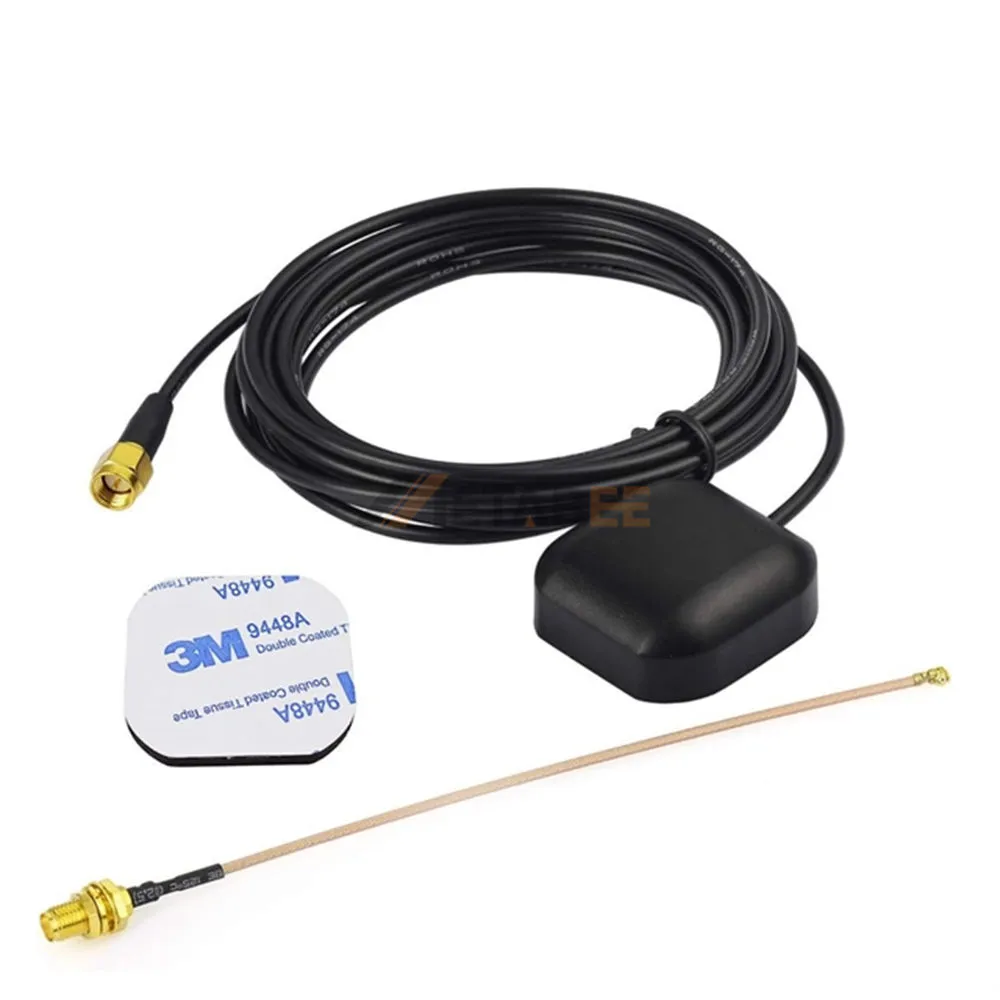

L1 Band GPS Outdoor Antenna with SMA Male Connector, 1575.42MHz, 6dBi, RG174 Cable, IP67
Introduction:
The L1 Band GPS Outdoor Antenna is a high-gain solution engineered for precision timing and satellite positioning at 1575.42 MHz. Delivering a powerful 6dBi gain, this antenna significantly enhances signal sensitivity for GPS receivers. Equipped with a standard SMA Male connector and low-loss RG174 cable, it ensures easy integration and reliable data transmission for vehicle tracking and industrial telematics.
Designed for resilience, the IP67-rated enclosure provides total protection against water and dust ingress, making it ideal for permanent outdoor installation. With a VSWR of ≤1.92 and an Omni-directional radiation pattern, it maintains a stable link even in challenging environments. The unit operates efficiently across a broad temperature range of -30 °C to 75 °C, guaranteeing performance in extreme climates.
Key Features
- High Sensitivity: 6dBi gain for superior L1 band signal acquisition.
- 360° Reception: Omni-directional pattern with stable Vertical polarization.
- Weatherproof: IP67-rated housing for maximum outdoor durability.
- Low Signal Loss: High-efficiency performance with a VSWR of ≤1.92.
- Universal Interface: Industry-standard SMA Male connector with RG174 cable.
- Wide Temperature Range: Reliable operation from -30 °C to 75 °C.
General Information:
| Product No.: | YC-GP00052 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |
| Size: | – | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1575.42 MHz | |
| Gain: | 6dBi | |
| VSWR: | ≤1.9 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this L1 Band GPS Outdoor Antenna with SMA Male Connector:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
