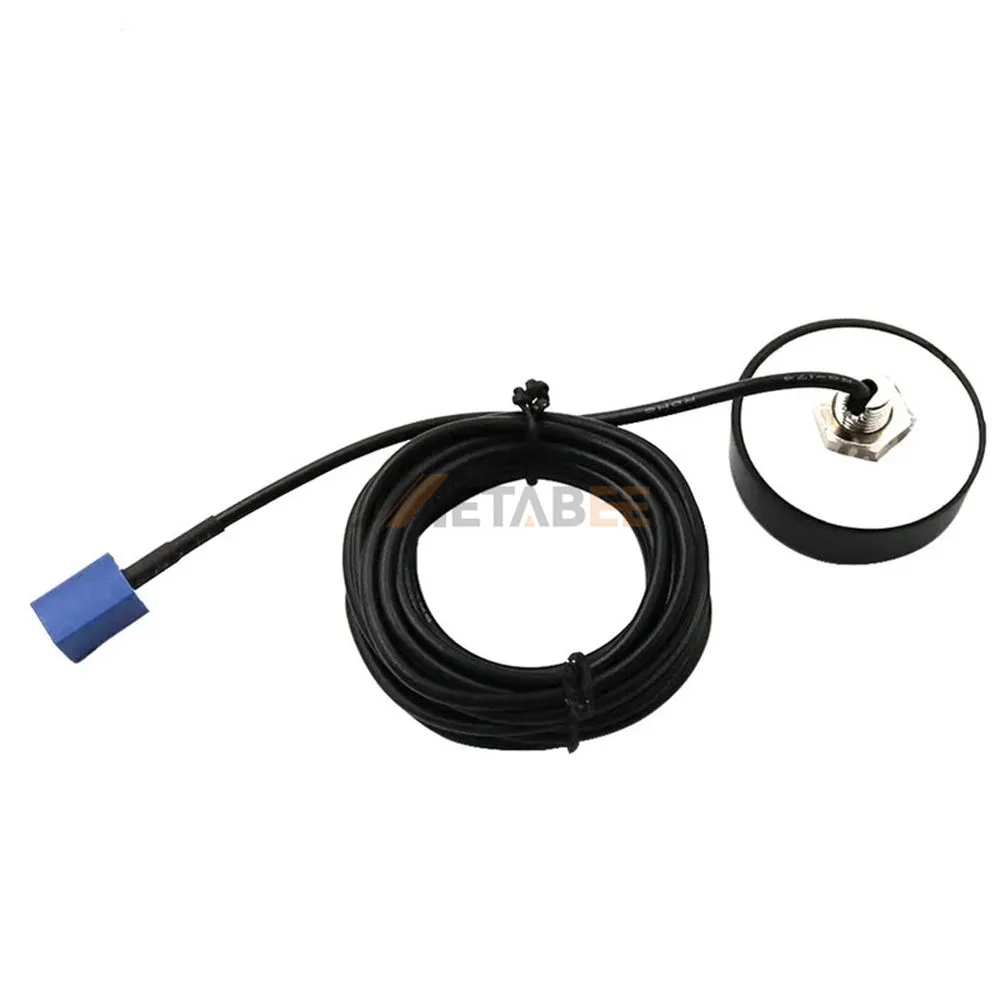

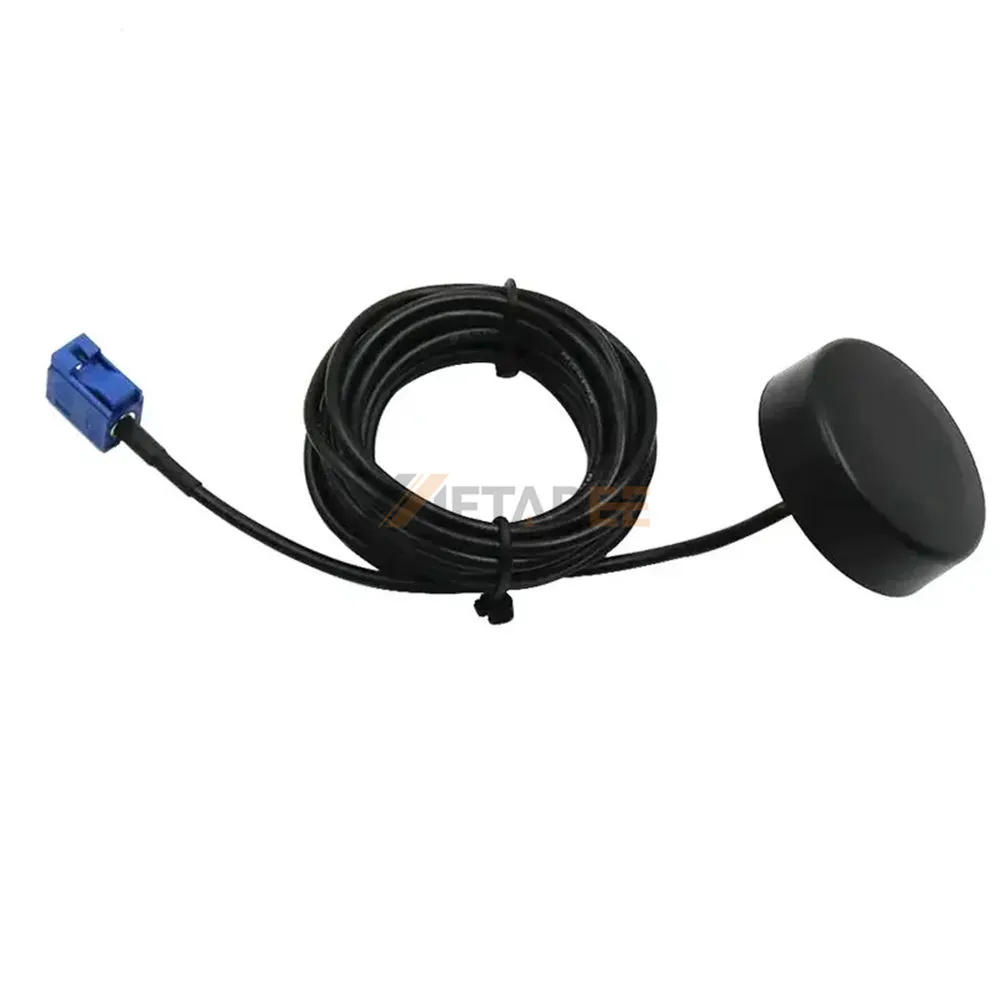

L1 Band GPS Outdoor Antenna, 1575.42 MHz, 3dBi, SMA/Fakra with RG174 Cable, IP67

L1 Band GPS Outdoor Antenna, 1575.42 MHz, 3dBi, SMA/Fakra with RG174 Cable, IP67

Introduction:

This L1 Band GPS outdoor antenna is designed for high-precision positioning at 1575.42 MHz. Featuring an omnidirectional radiation pattern and vertical polarization, it ensures stable satellite signal reception for navigation, tracking, and telematics applications. With a 3dBi gain and 50 Ohm impedance, it delivers consistent RF performance in demanding environments.

Built with a rugged IP67-rated enclosure, the antenna provides strong resistance against dust and water ingress, making it ideal for outdoor deployment. The SMA/Fakra connector with RG174 cable ensures flexible integration into a wide range of GNSS systems. It operates reliably under harsh conditions from -30°C to +75°C with a maximum power handling of 50W.

Key Features

• 1575.42 MHz GPS L1 band for accurate positioning
• 3dBi gain with omnidirectional coverage
• Vertical polarization for stable satellite signal reception
• VSWR ≤1.92 for efficient RF performance
• IP67 waterproof and dustproof outdoor protection
• SMA/Fakra connector with RG174 cable, 50Ω impedance compatibility

General Information:

Electrical Performance:

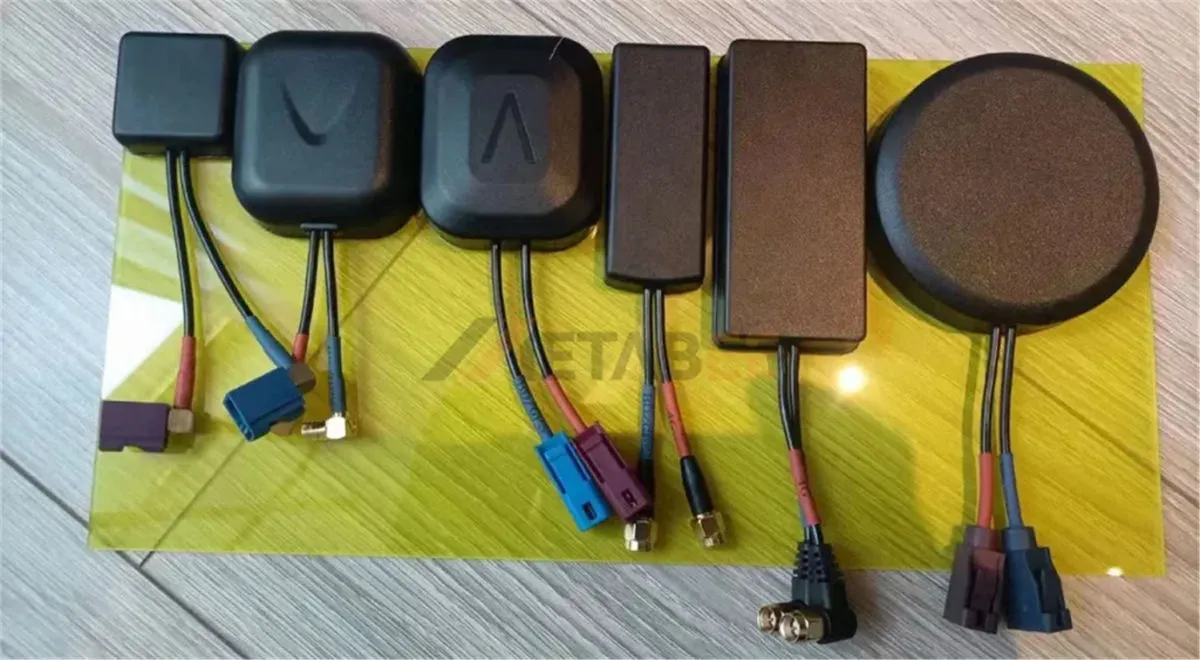

GPS/GNSS Antennas

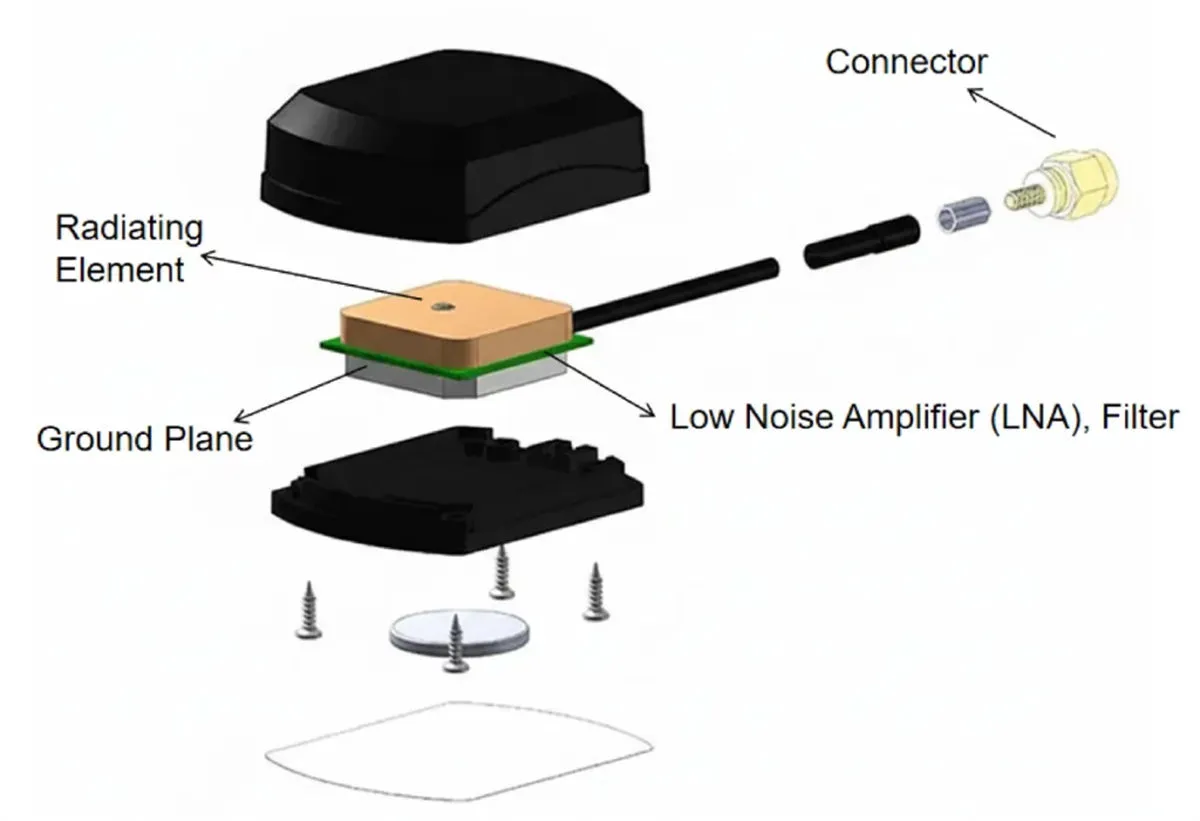

GPS/GNSS Antenna Structure

Applications of this L1 Band GPS Outdoor Antenna, 1575.42 MHz:

GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:

• Automotive Navigation and Fleet Management
• Consumer Devices
• Surveying and Mapping
• Aviation
• Marine Applications
• Drones and UAVs
• Agriculture
• Emergency Services
• Industrial IoT (Internet of Things)
• Scientific Research and Geodetic Surveying

Factory pricing and exceptional product quality. Get a free quote now!
