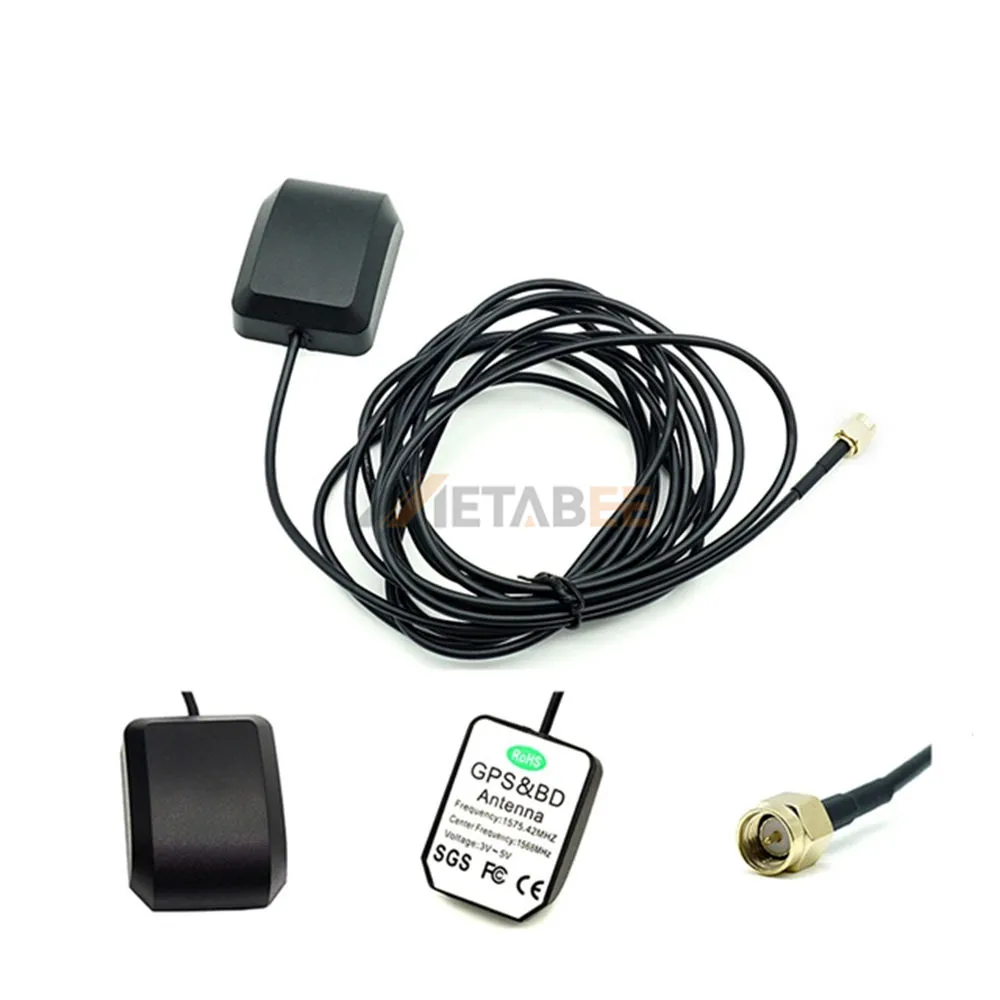

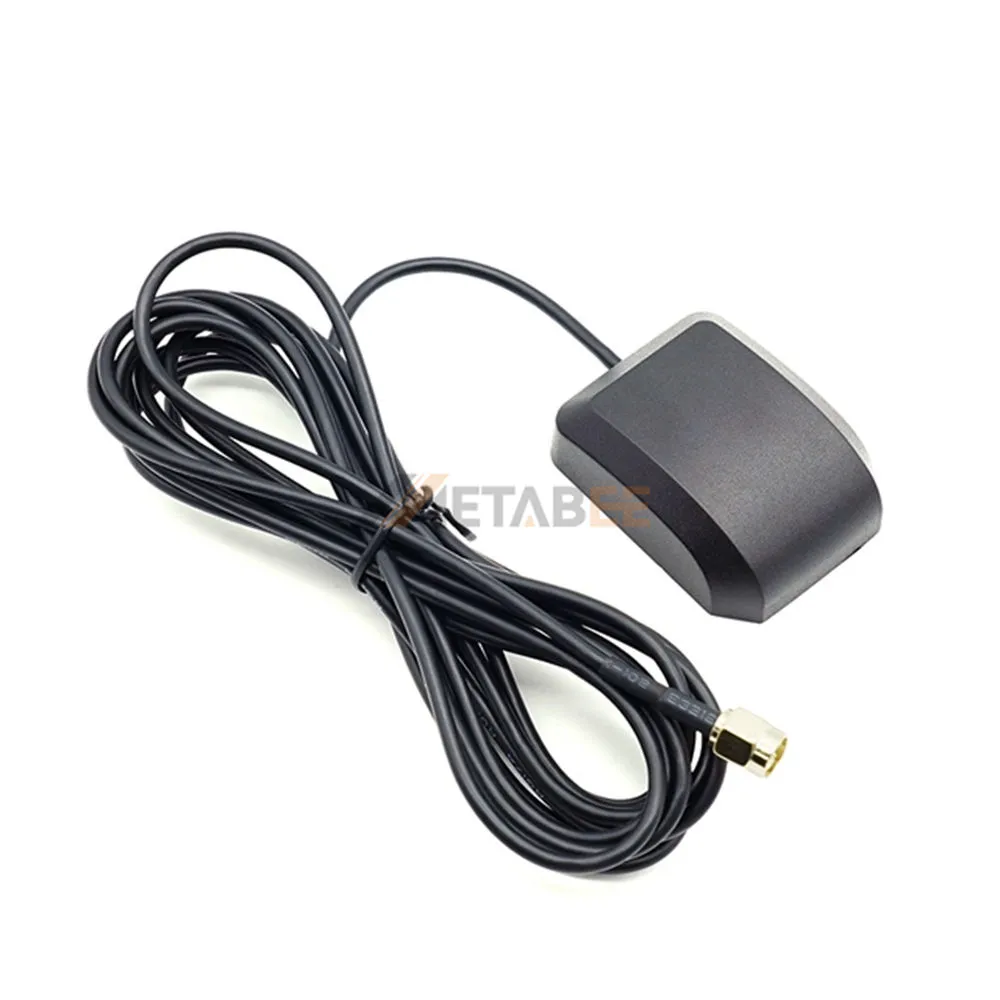

L1 Band GPS Mouse External Antenna with SMA Male, 1575.42MHz, 28dBi, IP67
Introduction:
This L1 band GPS mouse external antenna is designed for high-precision satellite positioning and stable GNSS signal reception at 1575.42 MHz. Featuring an omnidirectional radiation pattern and vertical polarization, it provides reliable coverage for vehicle navigation, fleet management, telematics, and outdoor tracking applications.
With a high 28dBi gain and 50 Ohm impedance, the antenna delivers enhanced signal strength and optimized RF performance. A VSWR of ≤1.92 minimizes signal reflection and improves transmission efficiency, ensuring stable connectivity in demanding operating environments. The SMA male connector with RG174 cable allows quick and flexible integration with GPS receivers and GNSS devices.
Engineered for rugged outdoor use, the antenna features an IP67-rated waterproof and dustproof enclosure for long-term durability. It operates reliably in temperatures ranging from -30°C to +75°C, making it suitable for automotive, industrial, and marine applications.
Key Features
- 1575.42 MHz GPS L1 band for accurate positioning
- High 28dBi gain with omnidirectional coverage
- Vertical polarization for stable GNSS signal reception
- VSWR ≤1.92 with 50 Ohm impedance for efficient RF performance
- IP67-rated waterproof and dustproof protection
- SMA Male connector with RG174 cable for flexible installation
General Information:
| Product No.: | YC-GP00006 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |

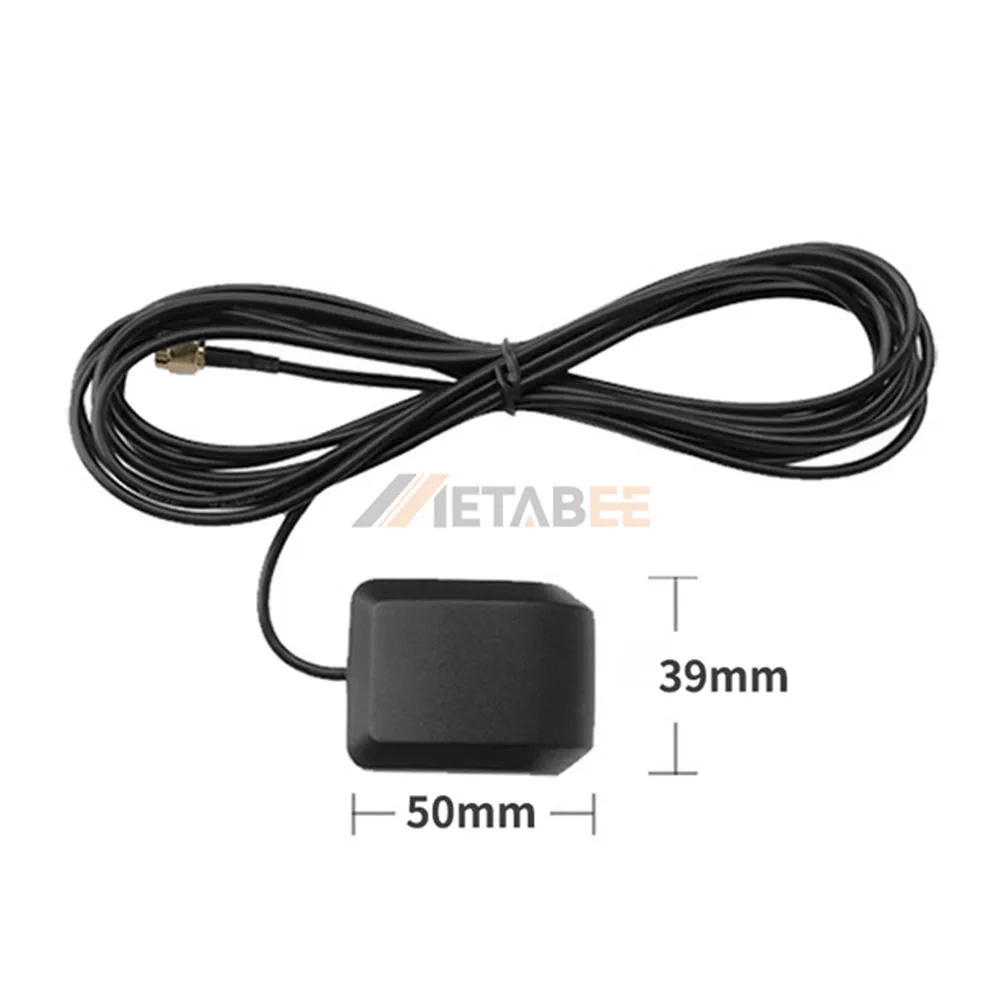

| Size: | – | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1575.42 MHz | |
| Gain: | 28dBi | |
| VSWR: | ≤1.9 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this L1 Band GPS Mouse External Antenna:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
