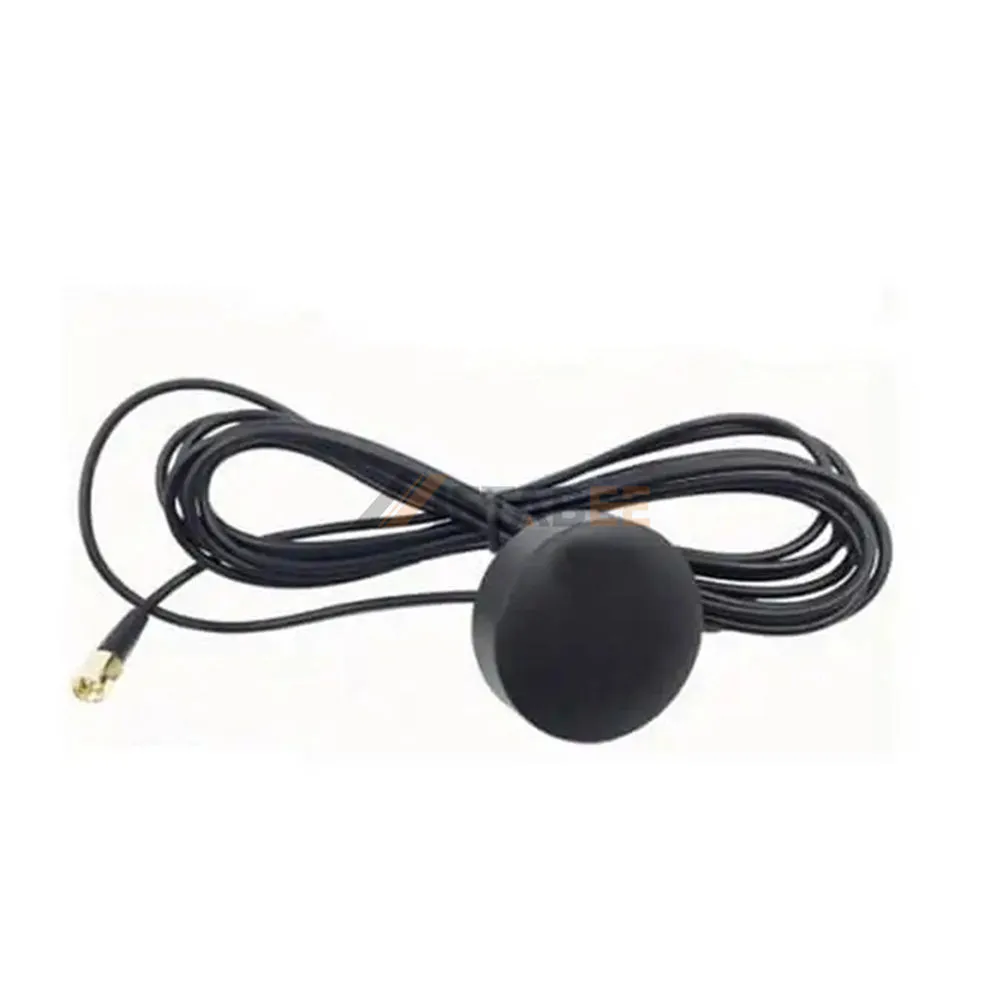

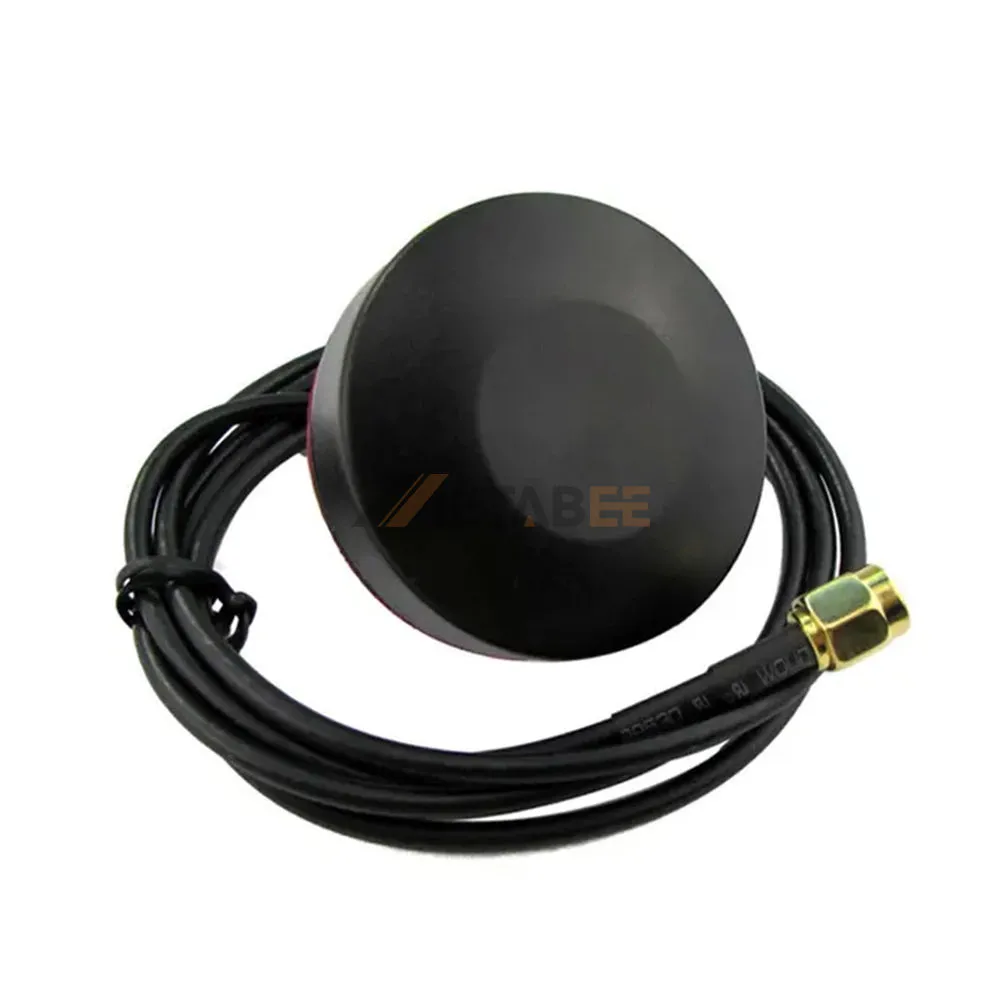

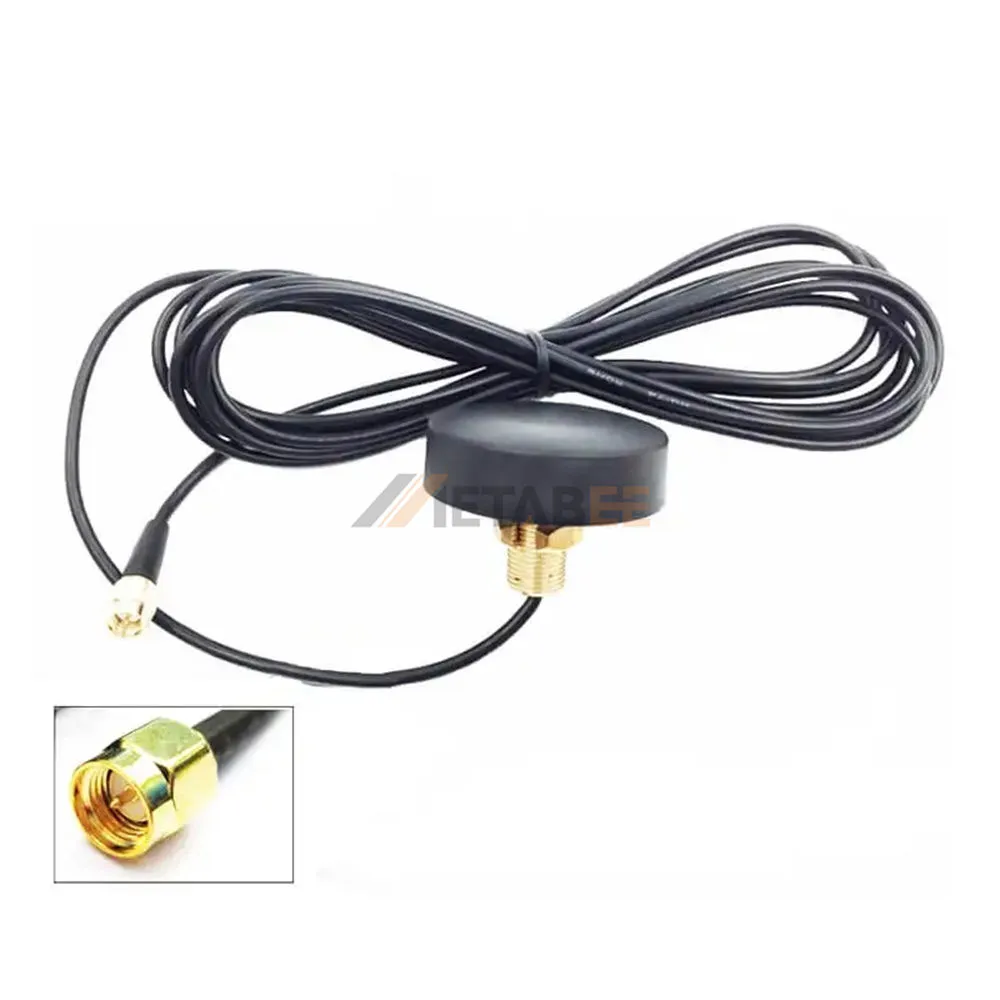

L1 Band GPS Antenna, SMA Male with RG174 Cable, 1575.42 MHz, 4~5dBi, IP67
Introduction:
This L1 band GPS antenna is designed for accurate positioning and stable GNSS signal reception at 1575.42 MHz. With an omnidirectional radiation pattern and vertical polarization, it ensures consistent satellite tracking performance for navigation, automotive, and tracking systems.
Engineered with a 4–5dBi gain range and 50 Ohm impedance, the antenna delivers efficient RF transmission with low signal loss. A VSWR of ≤1.92 enhances signal stability, ensuring reliable performance in demanding environments. The compact design supports seamless integration into various GPS-enabled devices.
Built for outdoor durability, the antenna features an IP67-rated enclosure for complete protection against dust and water immersion. It is equipped with an SMA male connector and RG174 cable for flexible installation. Operating reliably from -30°C to +75°C, it is suitable for harsh industrial and mobile applications.
Key Features
- 1575.42 MHz L1 GPS band for precise positioning
- 4–5dBi gain with omnidirectional radiation pattern
- Vertical polarization for stable GNSS signal reception
- VSWR ≤1.92 with 50 Ohm impedance for efficient performance
- IP67-rated waterproof and dustproof rugged design
- SMA Male with RG174 cable for flexible installation
General Information:
| Product No.: | YC-GP00011 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |
| Size: | – | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1575.42 MHz | |
| Gain: | 4~5dBi | |
| VSWR: | ≦1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this L1 Band GPS Antenna:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
