HR10A-7J-4P HR10 Series 6 Pin Push-Pull Circular Connector, Jack, Male Contact, Shell Size 7
Introduction:
HR10A-7J-4P, part of the highly reliable HR10 Series Circular Connector. This compact and robust connector features a secure push-pull lock mechanism, ensuring a stable connection even in demanding applications. With a shell size 7 and a Jack shell type, it is designed for cable type and easy mating. This connector is equipped with 4 male contacts, utilizing crimp termination for a durable and secure electrical connection. It offers a current rating of 2A and a voltage rating of AC 150V / DC 200V. Its low contact resistance of less than 10 milliohms ensures efficient signal transmission. The connector boasts a durable construction with a zinc alloy shell and nickel-plated finish. The copper alloy contacts with gold plating further enhance conductivity and reliability. Featuring a PBT insulator, this connector operates reliably within a wide temperature range of -25°C to +85°C.
Features:
- Push-Pull Lock: Ensures quick and secure mating and unmating.
- 4 Male Contacts: Suitable for various signal and power transmission needs.
- Solder Termination: Provides a strong and lasting electrical connection.
- 2A Current Rating : Suitable for low to medium power applications.
- Low Contact Resistance(<10mΩ): Ensures efficient signal integrity.
- Durable Construction: Zinc Alloy shell with nickel plating for enhanced durability.
- Wide Operating Temperature: Reliable performance in -25°C to +85°C environments.
Main Specifications:
General Information:
| Part Number: | HR10A-7J-4P | |
| Weight (g): | 6 | |
| Series: | HR10 Series | |
| Connector Type: | Jack | |
| Orientation: | Straight | |
| Contact Type: | Male Contacts | |
| Number of Contacts: | 4 Contacts | |
| Shell sizes: | 7 | |
| Contact Arrangement: | 7J-4 | |
| Coupling Method: | Pull-push | |
| Mount Method | Cable Type | |
| Mount Feature: | Not Applicable | |
| Contact Termination: | Crimp | |
| Shielding performance | Unshielded | |
| Temperature range | -25℃ to 85℃ |
Materials and Plating:
| Shell Material: | Zinc Alloy | |
| Shell Plating: | Nickel Plated | |
| Insulator Material: | PBT | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold Plated |
Electrical Performance:
| Rated current: | 2A | |
| Rated voltage: | AC 150V, DC 200V | |
| Contact resistance: | ＜10 mΩ |

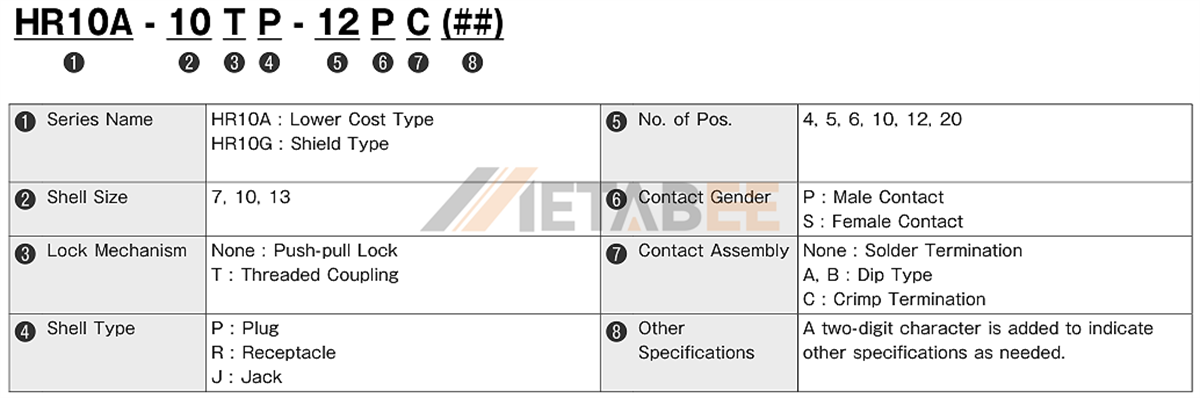

How to Order:

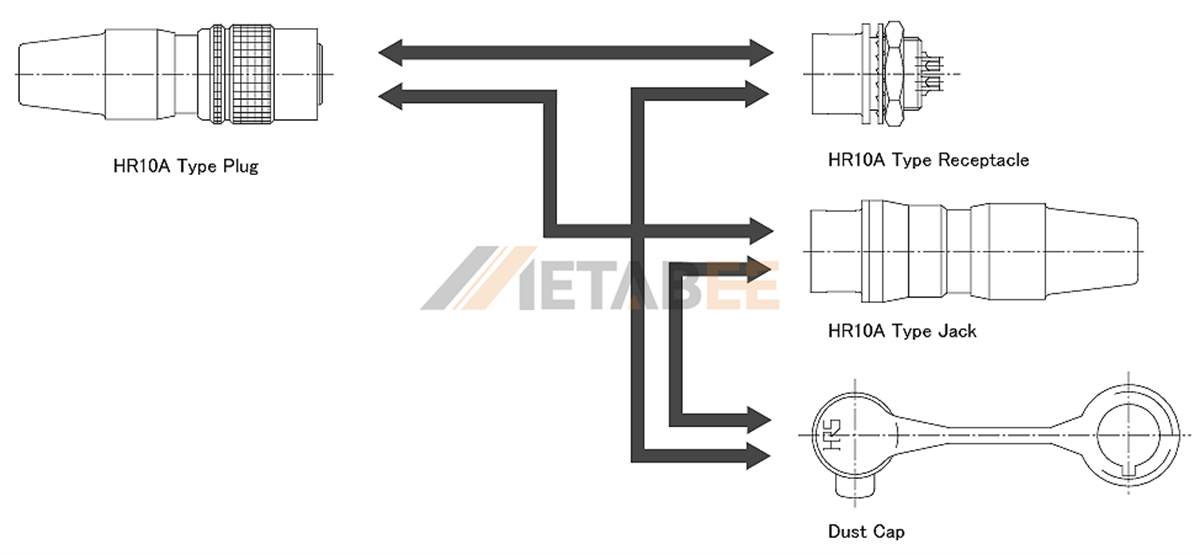

Mating Combinations:
Applications of this HR10A-7J-4P HR10 Series Push-Pull Circular Connector:
- Machine Vision Cameras.
- Industrial Equipment
- Test and Measurement Equipment
- Broadcasting Equipment
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
