Introduction:
This high voltage electrical contact is a vertical spring-loaded terminal designed for applications requiring elevated voltage clearance. It is distinguished by its 230V rating and 10mm tall profile, which allows for significant board-to-board spacing while ensuring reliable power transmission. The surface mount design facilitates automated assembly, while the 5u” gold-plated finish protects against oxidation to maintain a stable connection. This dip pogo pin serves as a critical power interface for industrial modules and high-voltage testing systems where vertical isolation and mechanical stability are essential requirements.
Key Features
- High Voltage: 230V rating supports specialized power circuit applications.
- Tall Profile: 10mm initial height optimizes large board-to-board gaps.
- SMT Assembly: Surface mount design enables efficient automated PCB production.
- Gold Plated: Thick gold finish ensures lasting corrosion resistance.
- Stable Force: SUS304 spring maintains consistent pressure for contacts.
Main Specifications:
General Information:
| Product No.: | PH-MVF-70100-C1A-PP-TR | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Initial Height (mm): | 10mm | |
| Working Stroke (mm): | 0.5mm | |
| Spring Force: | 30±10gf | |
| Life Test: | 10,000 Cycles |
Electrical:
| Rated Current: | 4A max | |
| Rated Voltage: | 230V DC | |
| Contact Resistance: | 30mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, 5u” Gold plated | |
| Barrel Material: | Brass, 5u” Gold plated | |
| Spring Material: | SUS304 |
Environmental:
| Operating Temperature: | -40°C to +105°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins

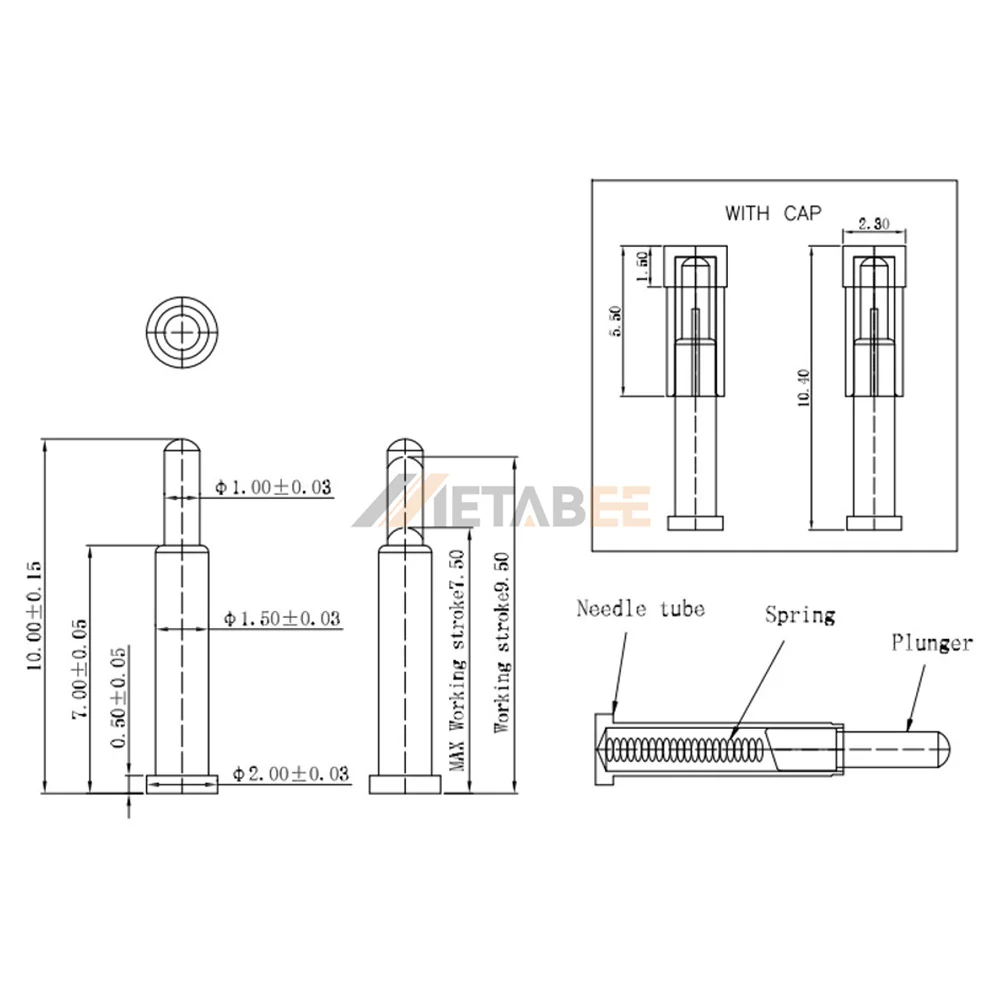

Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
