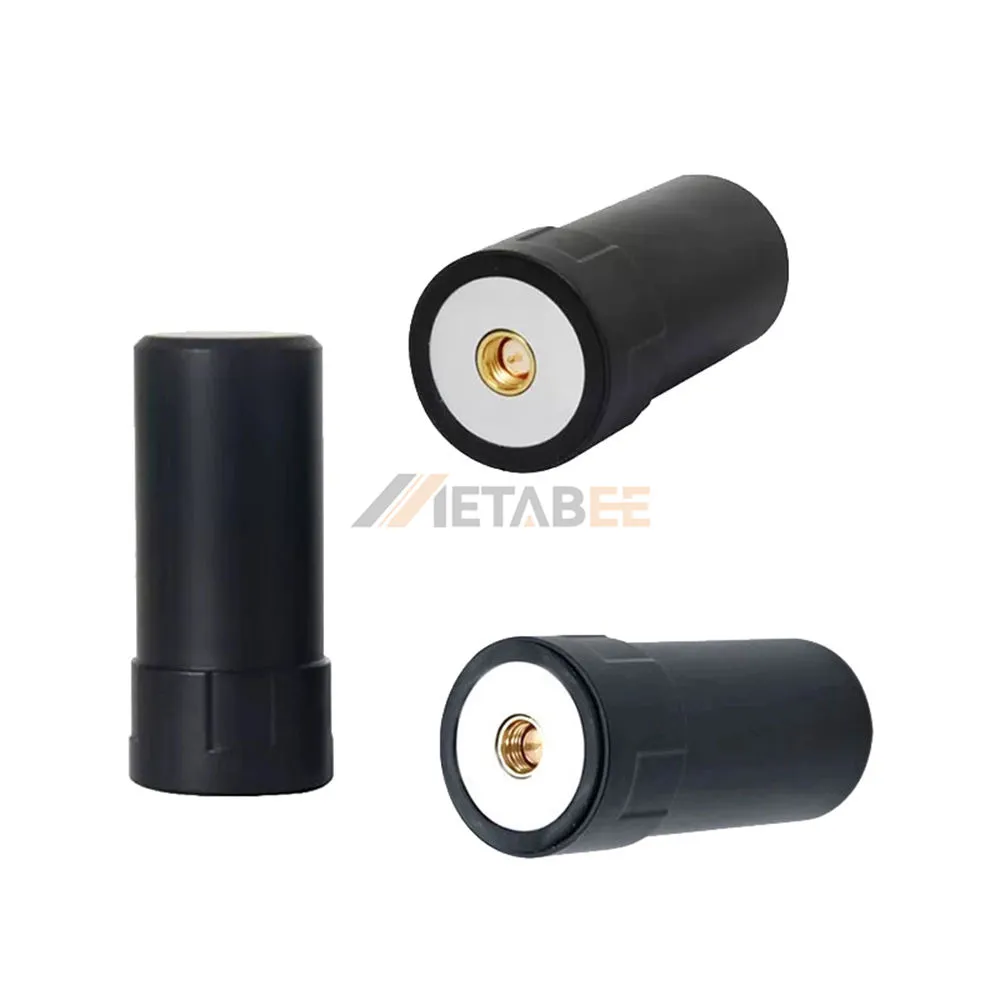

High Gain Full Range Quadrifilar Helix GPS/GLONASS/GALILEO/BD Antenna, 30±2dBi, IP67
Introduction:
Elevate your positioning and navigation capabilities with our High Gain Full Range Quadrifilar Helix GPS/GLONASS/GALILEO/BD Antenna. Engineered for unparalleled signal reception across all major global navigation satellite systems (GPS, GLONASS, GALILEO, and BeiDou), this antenna delivers exceptional accuracy and reliability. Its impressive 30±2dBi gain ensures robust signal acquisition, even in challenging environments, making it ideal for critical applications demanding stable and precise location data.
Designed for supreme performance and durability, this antenna features an omni-directional radiation pattern and Right-Hand Circular Polarization (RHCP) for optimal signal lock and reduced multipath interference. With a low Voltage Standing Wave Ratio (VSWR) of ≤1.5 and a maximum input power of 50W at 50 Ohm impedance, it guarantees efficient power transfer and minimal signal loss. The IP67-rated housing provides complete protection against dust and water ingress, while its wide operating temperature range of -30°C to 70°C ensures consistent operation in extreme conditions, from harsh industrial settings to outdoor deployments.
Key Features
- High Gain Performance: Delivers a powerful 30±2dBi gain for superior signal strength and reliability.
- Multi-Constellation Support: Compatible with GPS, GLONASS, GALILEO, and BeiDou for comprehensive global coverage.
- Omni-directional Coverage: Ensures consistent and reliable signal reception from all directions.
- Rugged IP67 Rating: Fully protected against dust and water, making it suitable for harsh environments.
- Wide Operating Temperature: Functions dependably across extreme temperatures from -30°C to 75°C.
- RHCP Polarization: Optimizes signal acquisition and minimizes interference for enhanced accuracy.
General Information:
| Product No.: | YC-GP00064 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Connector Orientation: | Straight | |
| Casing Material | PC | |
| Size: | – | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | Full Range | |
| Gain: | 30±2dBi | |
| VSWR: | ≤1.5 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Patch Architecture: | Quadrifilar Helix | |
| Polarization: | RHCP | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this High-Gain Full-Range Quadrifilar Helix GPS/GLONASS/GALILEO/BD Antenna:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
