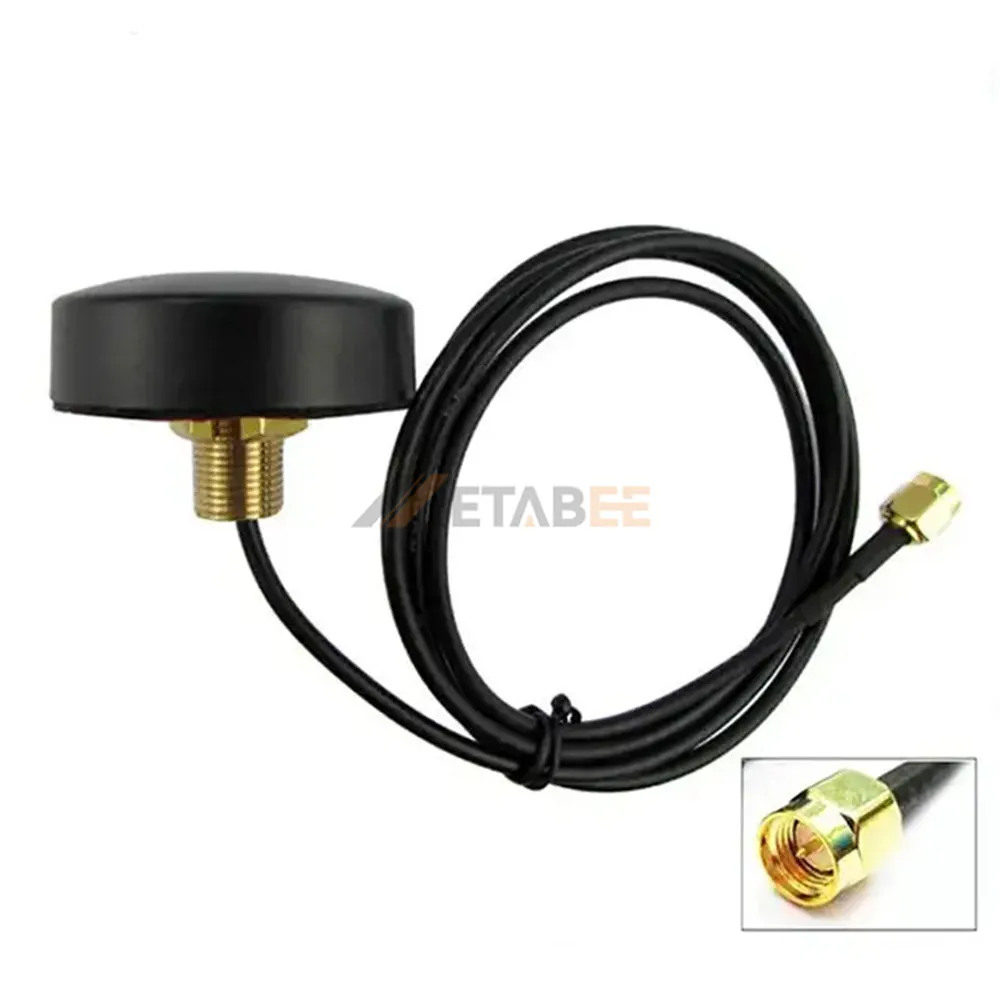

High Gain L1 Band GPS Antenna, SMA Male with RG174 Cable, 1575.42 MHz, 26dBi to 30dBi
Introduction:
This high-gain L1 band GPS antenna is engineered for precise satellite positioning at 1575.42 MHz. Its omnidirectional radiation pattern ensures consistent signal reception across all directions. With a powerful 28dBi gain range (26–30 dBi), vertical polarization, and 50 Ohm impedance, the antenna delivers optimized RF performance with minimal signal loss. A VSWR of ≤1.92 ensures efficient transmission stability, making it suitable for high-precision GNSS applications in demanding environments. Built for rugged outdoor deployment, the antenna features an IP67-rated enclosure for full dust protection and water resistance. It is equipped with an SMA male connector and RG174 cable for flexible installation and reliable connectivity. Operating reliably from -30°C to +75°C, it is ideal for automotive, marine, and industrial GNSS systems.
Key Features
- 1575.42 MHz GPS L1 band for high-precision positioning
- 26–30 dBi high gain with omnidirectional radiation pattern
- VSWR ≤1.92 with 50 Ohm impedance for efficient performance
- IP67-rated waterproof and dustproof outdoor design
- SMA Male with RG174 cable for flexible and reliable installation
General Information:
| Product No.: | YC-GP00005 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |
| Size: | – | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1575.42 MHz | |
| Gain: | 26dBi~30dBi | |
| VSWR: | ≦1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this High Gain L1 Band GPS Antenna, 1575.42 MHz:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
