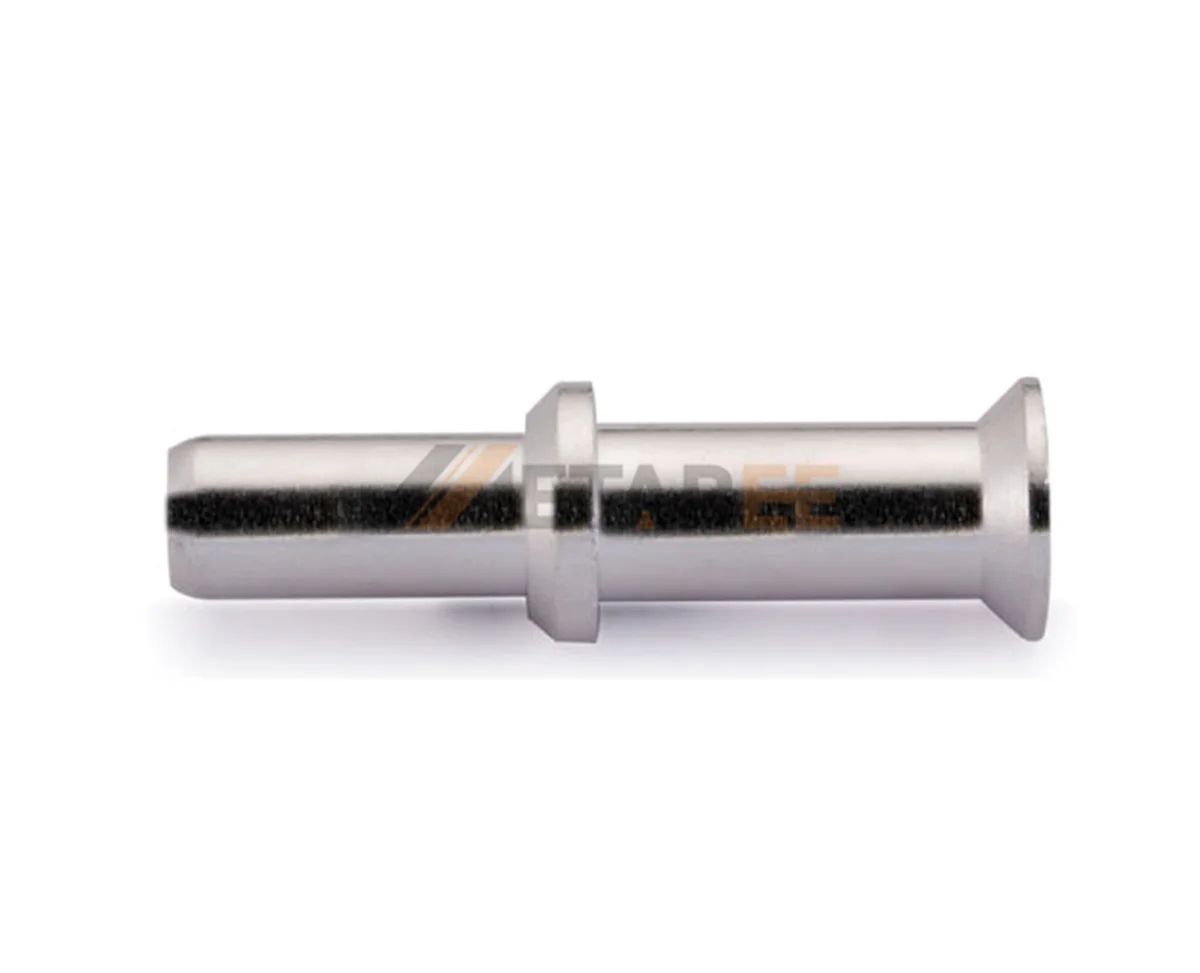

Heavy Duty Electrical Contact for HM Inserts, 200A H-type Male Contacts, Silver Plated Copper Alloy
Introduction:
This heavy duty electrical contact is designed for HM inserts and uses a 200A H-type male pin structure. The contact is made from copper alloy and finished with a silver-plated surface to support high current transmission and low contact resistance. The crimp termination provides firm wire attachment and stable electrical flow. The large-capacity pin design offers strong mechanical strength and reliable mating stability. The silver layer helps reduce oxidation and keeps the contact interface consistent during long use. The structure supports steady performance in heavy duty power connections.
Note: The product supports multiple wire gauge options, and users can select the size that matches their wiring needs.
Main Specifications:
General Information:
| Product No.: | CHM-25 | |
| Category: | Heavy-Duty Connector Contacts | |
| Type of Contacts: | Crimp Contact | |
| Termination Method: | Crimp Termination | |
| Gender: | Male | |
| Contact Material: | Copper Alloy | |
| Surface: | Silver Plated | |
| Rated current: | 200A | |
| Contact resistance: | ≤4 mΩ | |
| Wire Gauge: | 25 mm² | |
| Diameter: | Φ7mm | |
| Stripping length: | 22.5 mm |

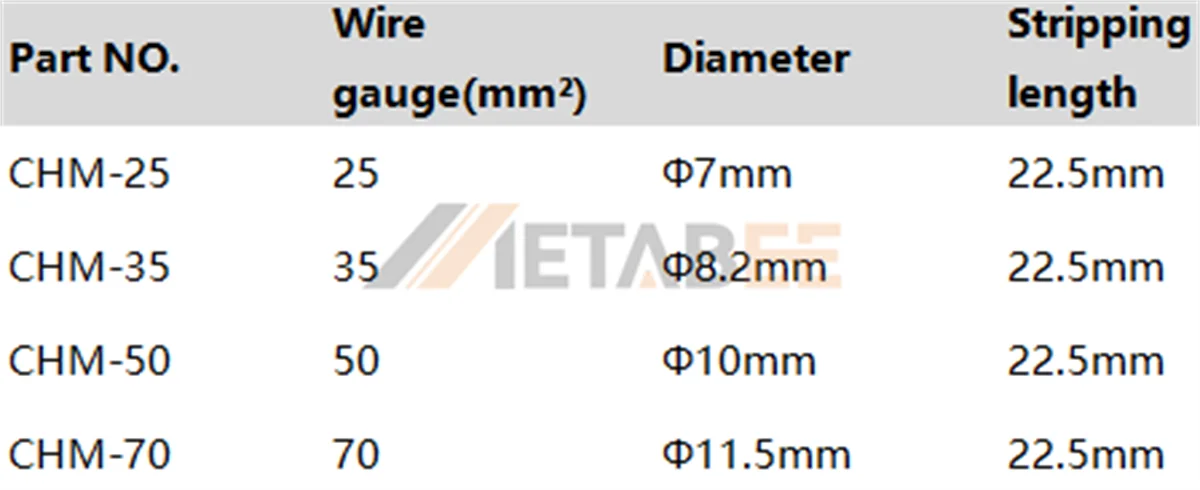

Wire Gauge Options

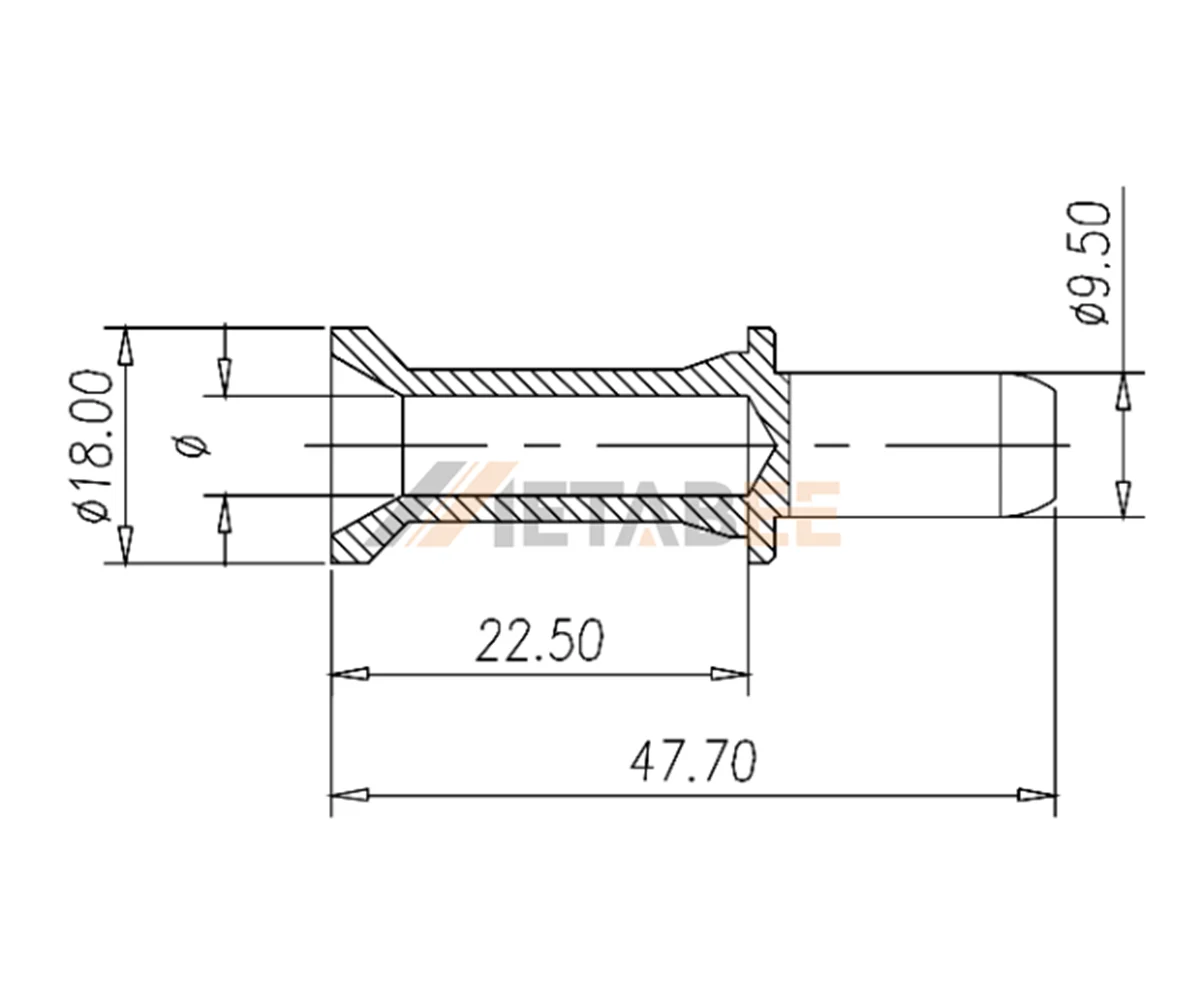

Structure of Heavy-Duty Connector
Type of Heavy-duty Connector Contacts
