5A Heavy Duty Connector Contact for HM Series Inserts, Female Crimp Pin, Gold Plated Copper Alloy
Introduction:
This heavy duty connector contact is designed for 5A inserts and uses an A-type crimp female pin. The copper alloy body is finished with silver plating to maintain stable conductivity and low contact resistance. The crimp structure supports firm wire termination and keeps the electrical path steady during operation. The pin offers reliable mating with the corresponding male contact and maintains consistent insertion force. The silver surface also helps reduce oxidation, ensuring a clean and stable contact area over long use.
Note: The product supports multiple wire gauge options, and users can select the size that matches their wiring needs.
Main Specifications:
General Information:
| Product No.: | CAF-08 | |
| Category: | Heavy-Duty Connector Contacts | |
| Type of Contacts: | Crimp Contact | |
| Termination Method: | Crimp Termination | |
| Gender: | Female | |
| Contact Material: | Copper Alloy | |
| Surface: | Silver Plated | |
| Rated current: | 5A | |
| Contact resistance: | ≤3 mΩ | |
| Wire Gauge: | 0.08-0.21 mm² (AWG28-24) | |
| Stripping length: | 5 mm |

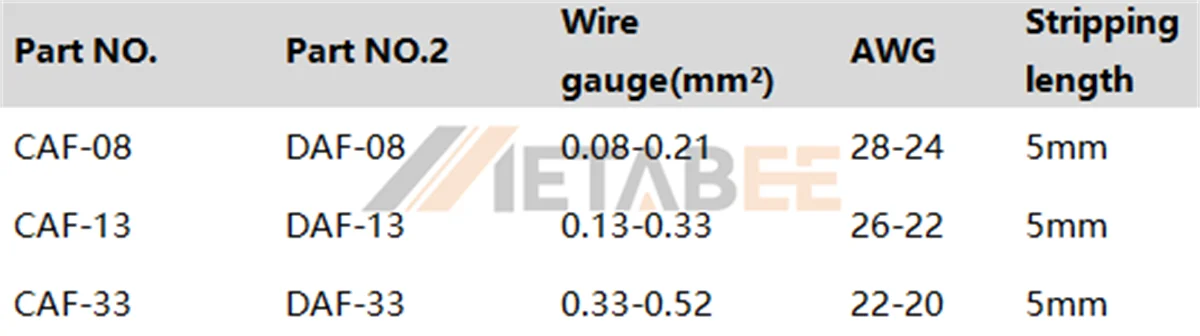

Wire Gauge Options

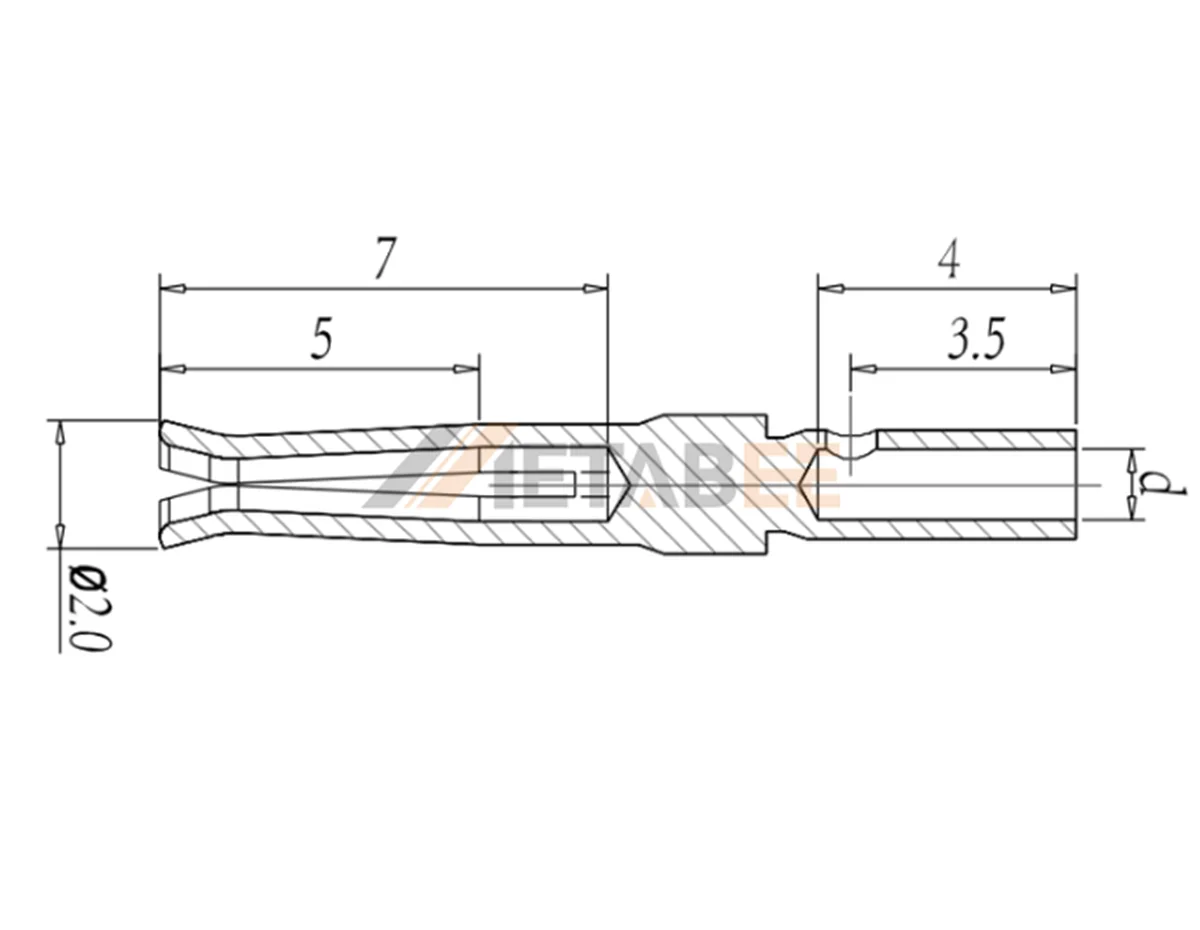

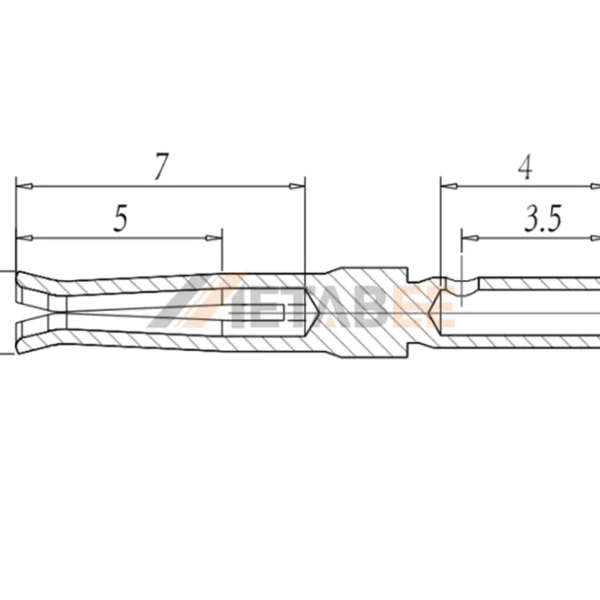

Structure of Heavy-Duty Connector
Type of Heavy-duty Connector Contacts
