16A Heavy Duty Connector Female Contact, E-type Crimp Terminal, Sliver Plated Copper Alloy
Introduction:
This 16A heavy duty female contact uses an E-type crimp terminal made from silver plated copper alloy. The metal body supports stable conductivity and keeps contact resistance low. The silver surface improves interface reliability by reducing oxidation during long use. The crimp structure holds the wire firmly and maintains consistent electrical flow. The pin design ensures steady mating and provides a secure connection inside the insert or module.
Note: The product supports multiple wire gauge options, and users can select the size that matches their wiring needs.
Main Specifications:
General Information:
| Product No.: | CEF-0.37 | |
| Category: | Heavy-Duty Connector Contacts | |
| Type of Contacts: | Crimp Contact | |
| Termination Method: | Crimp Termination | |
| Gender: | Female | |
| Contact Material: | Copper Alloy | |
| Surface: | Silver Plated | |
| Rated current: | 16A | |
| Contact resistance: | ≤1 mΩ | |
| Wire Gauge: | 0.14-0.37 mm² (AWG26-22) | |
| Stripping length: | 7.5 mm |

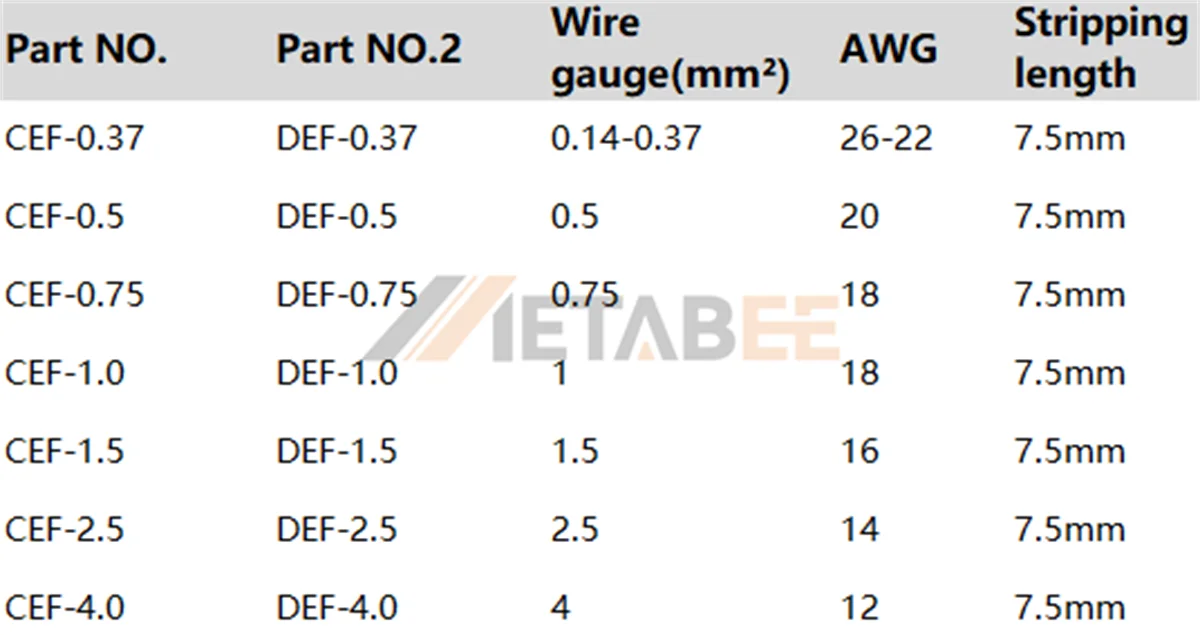

Wire Gauge Options

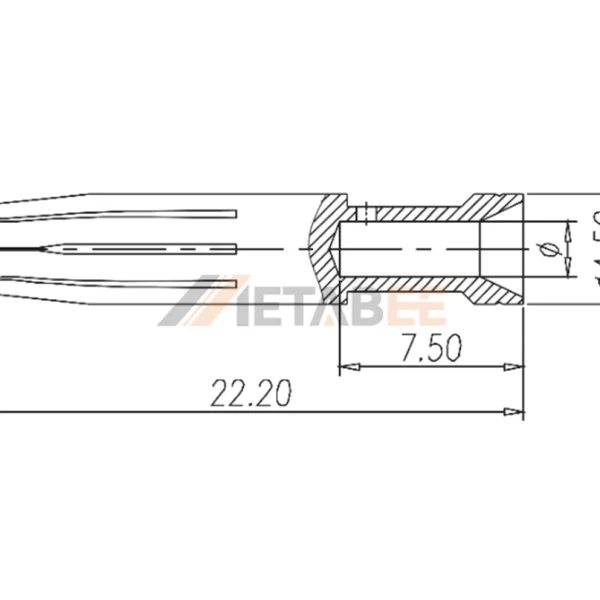

Structure of Heavy-Duty Connector

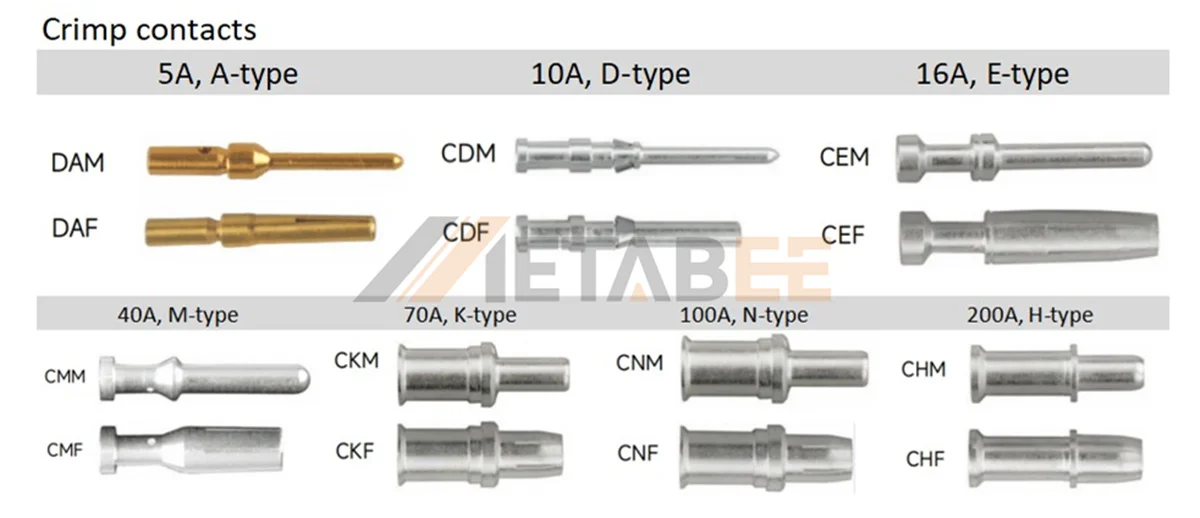

Type of Heavy-duty Connector Contacts
