200A Heavy Duty Connector Female Contact, H-type Crimp Terminal, Sliver Plated Copper Alloy
Introduction:
This 200A H-type female contact uses a silver plated copper alloy body designed for high current inserts. The crimp termination forms a tight and stable wire bond. The silver surface supports efficient conductivity and keeps contact resistance low. The pin structure maintains steady mating force and reliable alignment with the matching male contact. The metal body offers strength during repeated connection cycles and keeps the electrical interface stable under heavy load.
Note: The product supports multiple wire gauge options, and users can select the size that matches their wiring needs.
Main Specifications:
General Information:
| Product No.: | CHF-25 | |
| Category: | Heavy-Duty Connector Contacts | |
| Type of Contacts: | Crimp Contact | |
| Termination Method: | Crimp Termination | |
| Gender: | Female | |
| Contact Material: | Copper Alloy | |
| Surface: | Silver Plated | |
| Rated current: | 200A | |
| Contact resistance: | ≤4 mΩ | |
| Wire Gauge: | 25 mm² | |
| Diameter: | Φ7mm | |

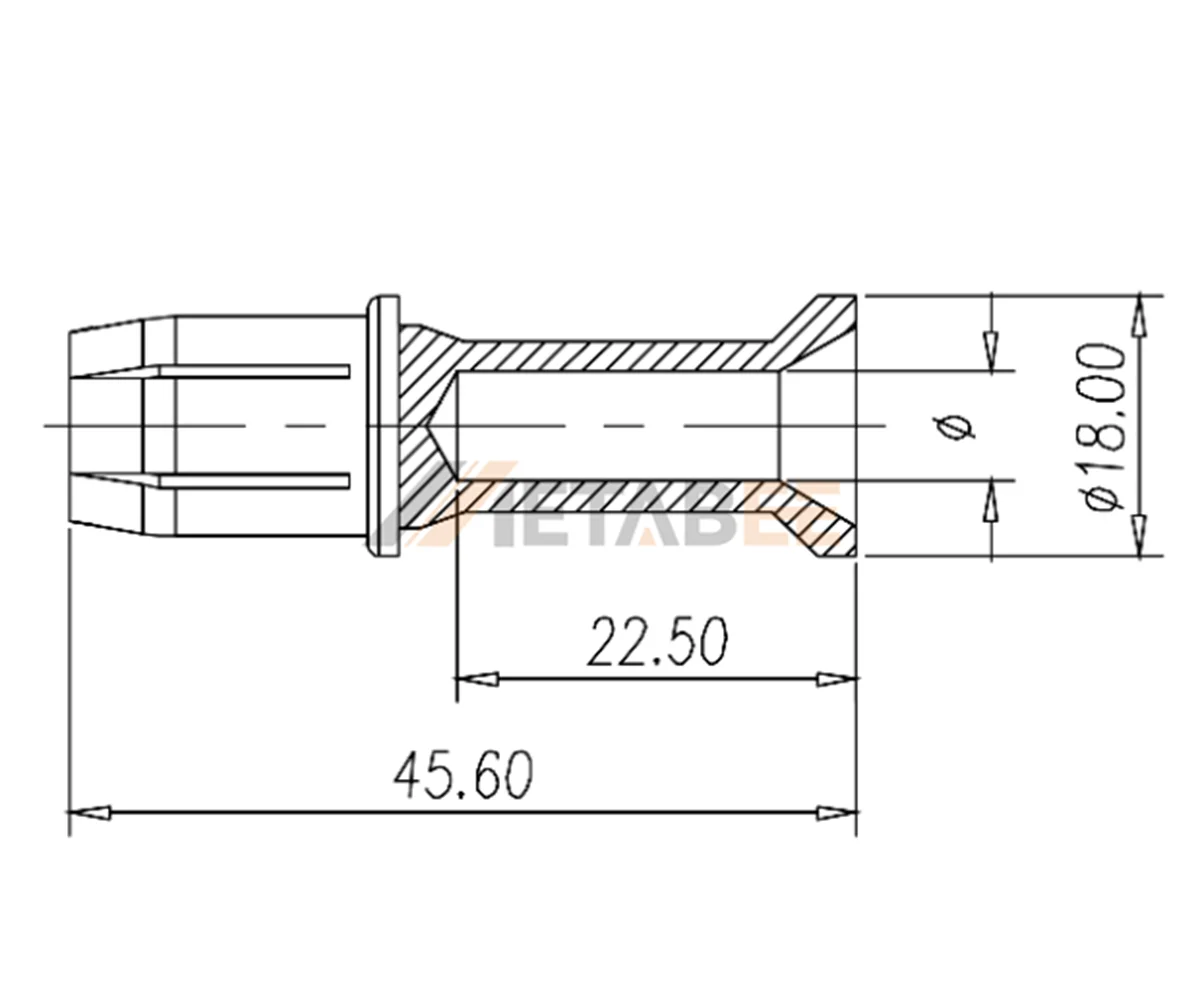

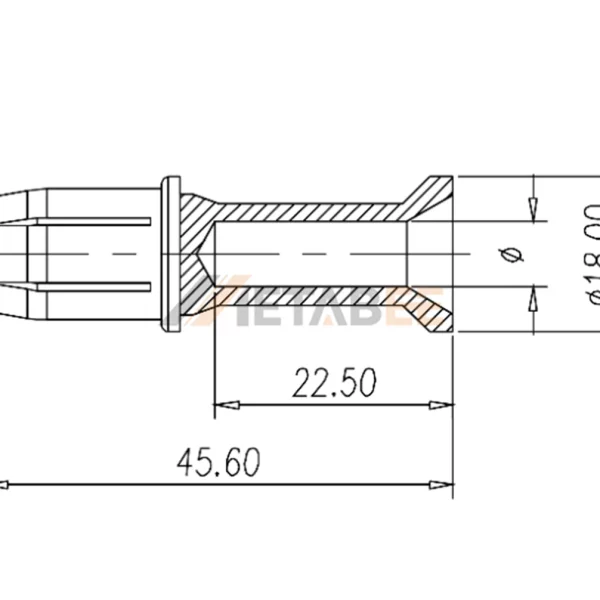

| Stripping length: | 22.5 mm |
Wire Gauge Options
Structure of Heavy-Duty Connector
Type of Heavy-duty Connector Contacts
