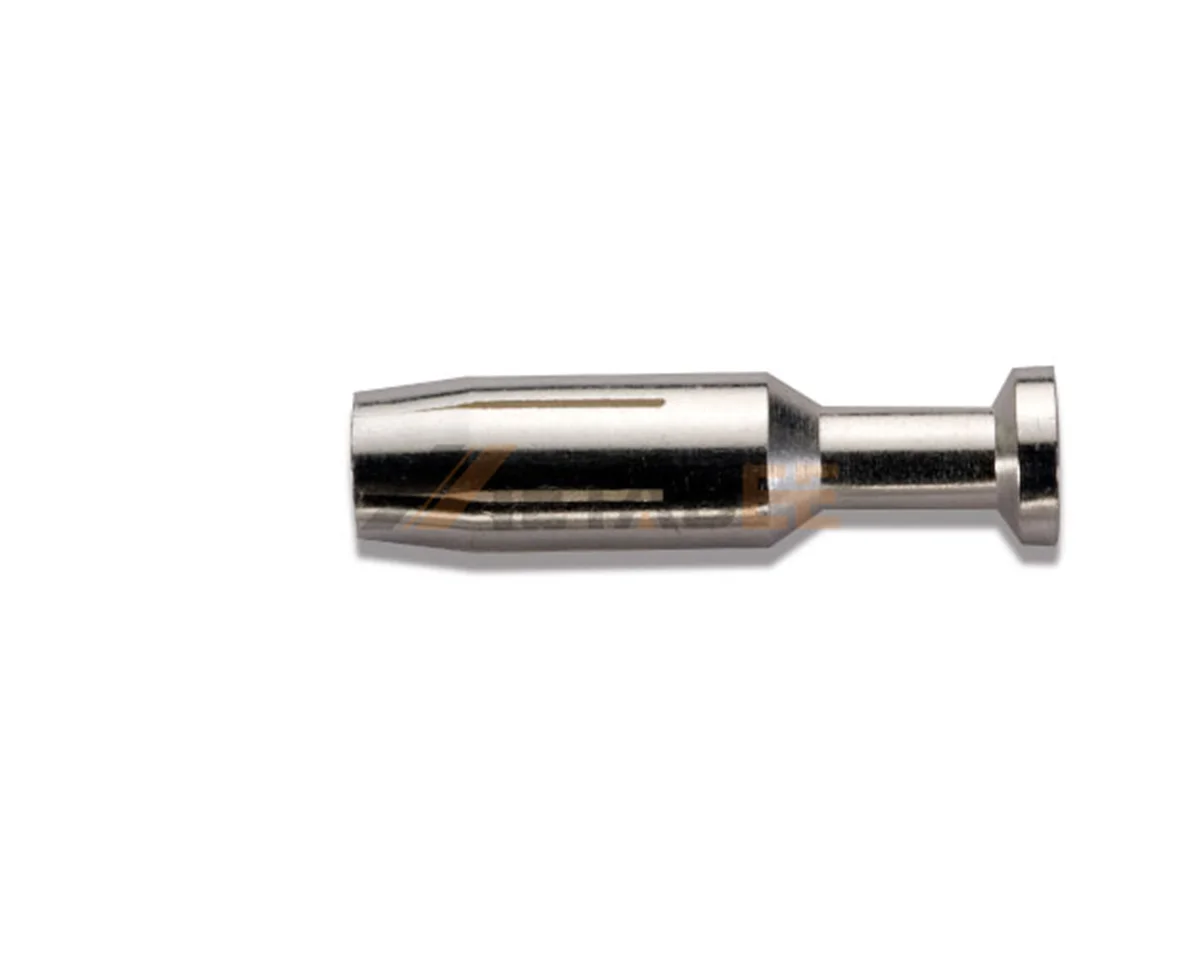

Heavy Duty Connector Contact for 40A Inserts, M-type Crimp Female Pin, Sliver Plated Copper Alloy
Introduction:
This heavy duty connector contact is designed for 40A inserts and uses an M-type female pin structure. The contact is made of copper alloy and finished with silver plating to provide stable conductivity and low contact resistance. The crimp design supports firm wire attachment and steady electrical flow. The female pin maintains accurate mating with the corresponding male contact and keeps the interface stable during repeated use. The silver surface helps slow oxidation and supports reliable long-term performance.
Note: The product supports multiple wire gauge options, and users can select the size that matches their wiring needs.
Main Specifications:
General Information:
| Product No.: | CMF-1.5 | |
| Category: | Heavy-Duty Connector Contacts | |
| Type of Contacts: | Crimp Contact | |
| Termination Method: | Crimp Termination | |
| Gender: | Female | |
| Contact Material: | Copper Alloy | |
| Surface: | Silver Plated | |
| Rated current: | 40A | |
| Contact resistance: | ≤3mΩ | |
| Wire Gauge: | 1.5 mm² (AWG 16) | |
| Stripping length: | 8 mm |

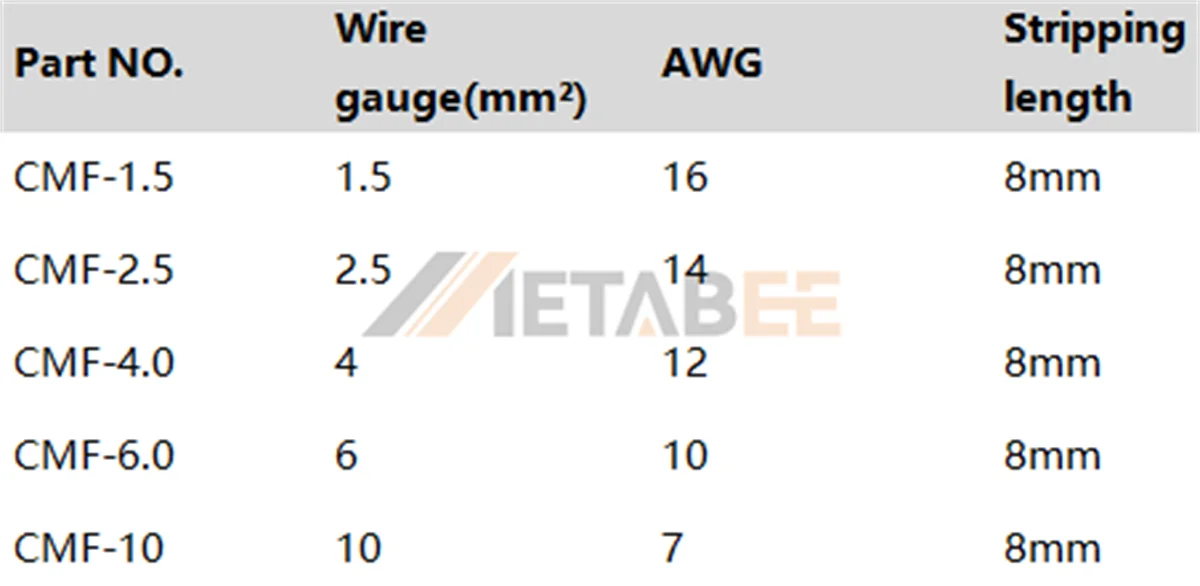

Wire Gauge Options

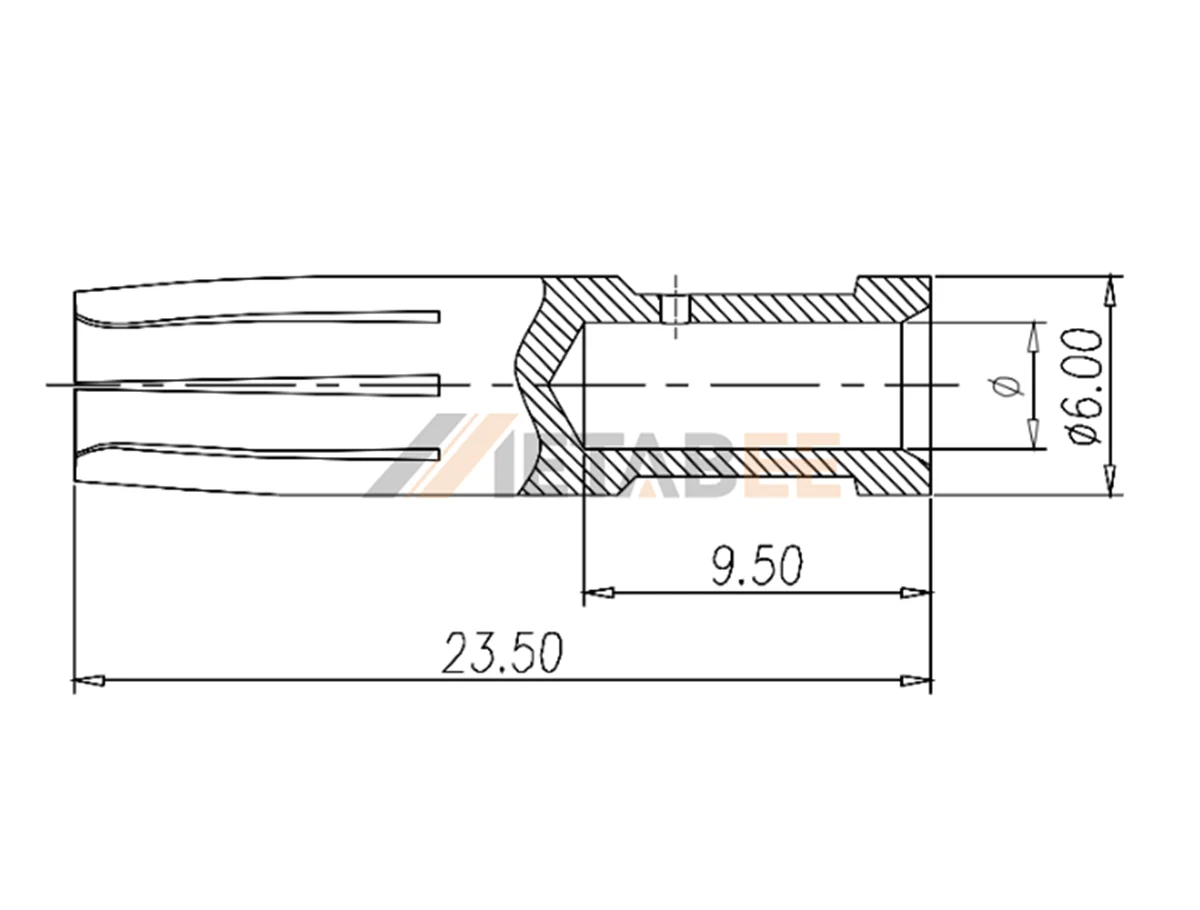

Structure of Heavy-Duty Connector
Type of Heavy-duty Connector Contacts
