100A Heavy Duty Connector N-type Female Crimp Contact, Sliver Plated Copper Alloy
Introduction:
This 100A N-type female crimp contact is built with a silver plated copper alloy body. The structure supports stable current flow and low contact resistance under high load. The crimp termination gives a firm wire connection and keeps the electrical path secure. The contact surface reduces heat rise and maintains steady performance in repeated cycles. The silver layer also improves conductivity and helps limit oxidation during long use.
Note: The product supports multiple wire gauge options, and users can select the size that matches their wiring needs.
Main Specifications:
General Information:
| Product No.: | CNF-10 | |
| Category: | Heavy-Duty Connector Contacts | |
| Type of Contacts: | Crimp Contact | |
| Termination Method: | Crimp Termination | |
| Gender: | Female | |
| Contact Material: | Copper Alloy | |
| Surface: | Silver Plated | |
| Rated current: | 100A | |
| Contact resistance: | ≤1 mΩ | |
| Wire Gauge: | 10 mm² (AWG 7) | |
| Diameter: | Φ4.3mm | |
| Stripping length: | 19 mm |

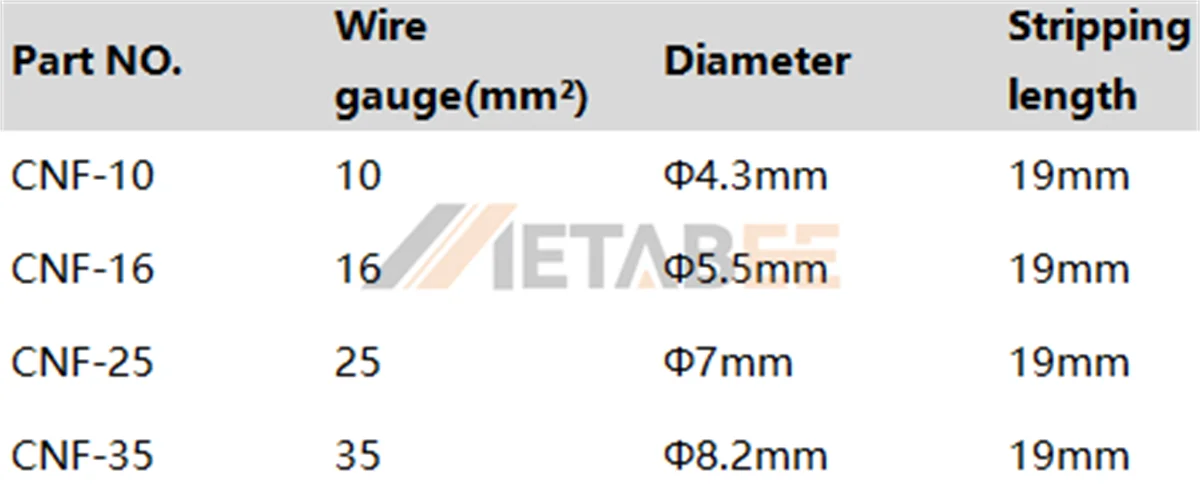

Wire Gauge Options
Structure of Heavy-Duty Connector
Type of Heavy-duty Connector Contacts
