Heavy Duty Connector Contact for 70A Inserts, Female Crimp Pin, Sliver Plated Copper Alloy
Introduction:

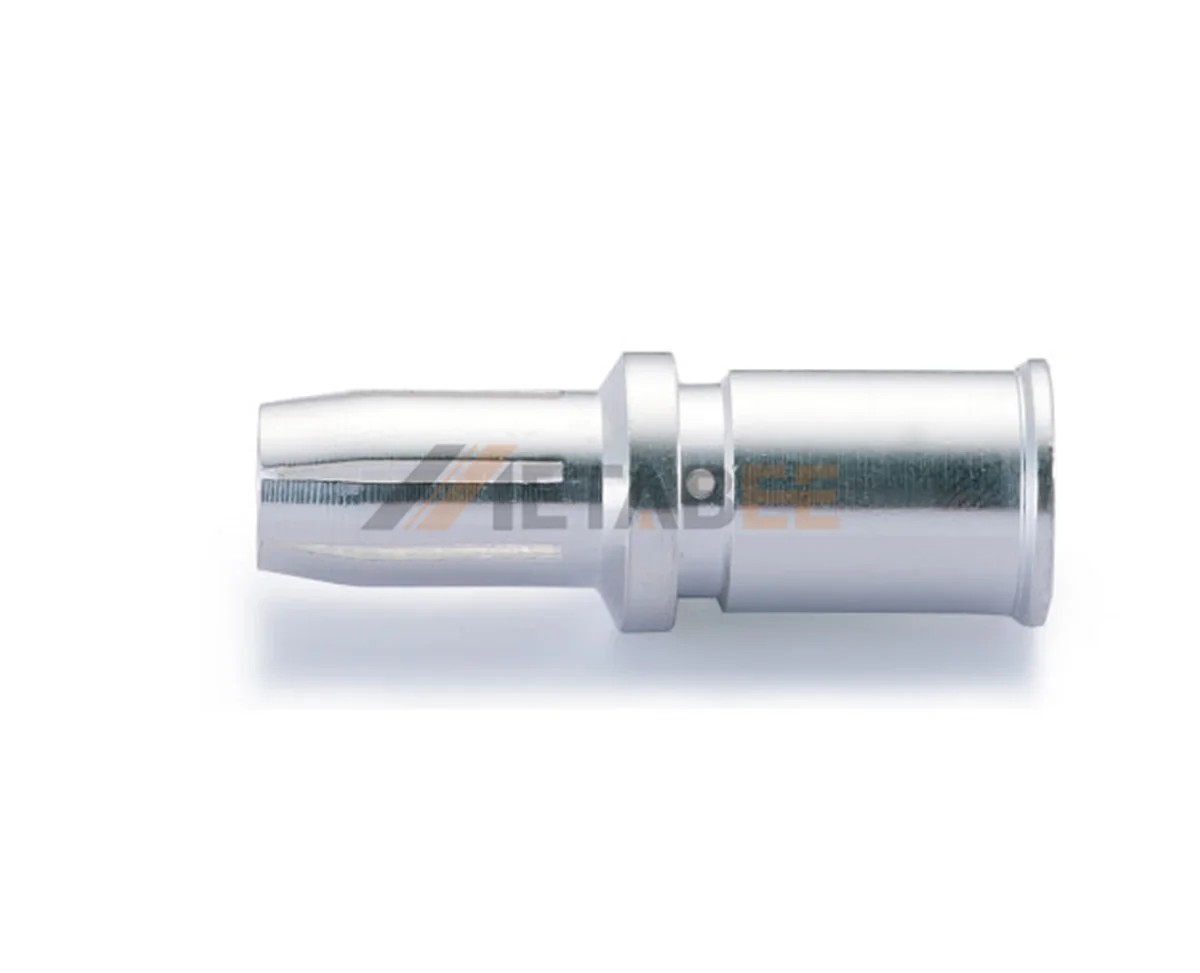

This heavy duty connector contact is built for 70A inserts and uses a female crimp terminal design. The copper alloy body is coated with silver plating to support low resistance and stable current flow. The crimp structure creates a firm wire joint and maintains consistent electrical performance. The contact offers steady mating alignment and reliable engagement with the matching male pin. The silver surface helps limit oxidation and keeps the interface stable during long service cycles.
Note: The product supports multiple wire gauge options, and users can select the size that matches their wiring needs.
Main Specifications:
General Information:
| Product No.: | CIF-10 | |
| Category: | Heavy-Duty Connector Contacts | |
| Type of Contacts: | Crimp Contact | |
| Termination Method: | Crimp Termination | |
| Gender: | Female | |
| Contact Material: | Copper Alloy | |
| Surface: | Silver Plated | |
| Rated current: | 70A | |
| Contact resistance: | ≤3 mΩ | |
| Wire Gauge: | 10 mm² (AWG7) | |
| Diameter: | Φ4.3mm | |
| Stripping length: | 5 mm |
Structure of Heavy-Duty Connector
Type of Heavy-duty Connector Contacts
