E-type Heavy Duty Connector Contact for 16A Inserts and Modules, Male Pin, Silver Plated Copper Alloy
Introduction:
This E-type heavy duty connector contact is designed for 16A inserts and module structures. The male pin is made of copper alloy and finished with a silver plating layer that supports stable conductivity and low contact resistance. The pin surface helps reduce oxidation and keeps the contact point consistent during long use. The crimp design allows firm wire attachment and provides steady electrical flow. The structure maintains reliable mating performance and stable insertion force for repeated connection cycles.
Note: The product supports multiple wire gauge options, and users can select the size that matches their wiring needs.
Main Specifications:
General Information:
| Product No.: | CEM-0.37 | |
| Category: | Heavy-Duty Connector Contacts | |
| Type of Contacts: | Crimp Contact | |
| Termination Method: | Crimp Termination | |
| Gender: | Male | |
| Contact Material: | Copper Alloy | |
| Surface: | Silver Plated | |
| Rated current: | 16A | |
| Contact resistance: | ≤1 mΩ | |
| Wire Gauge: | 0.14-0.37 mm² (AWG26-22) | |
| Stripping length: | 7.5 mm |

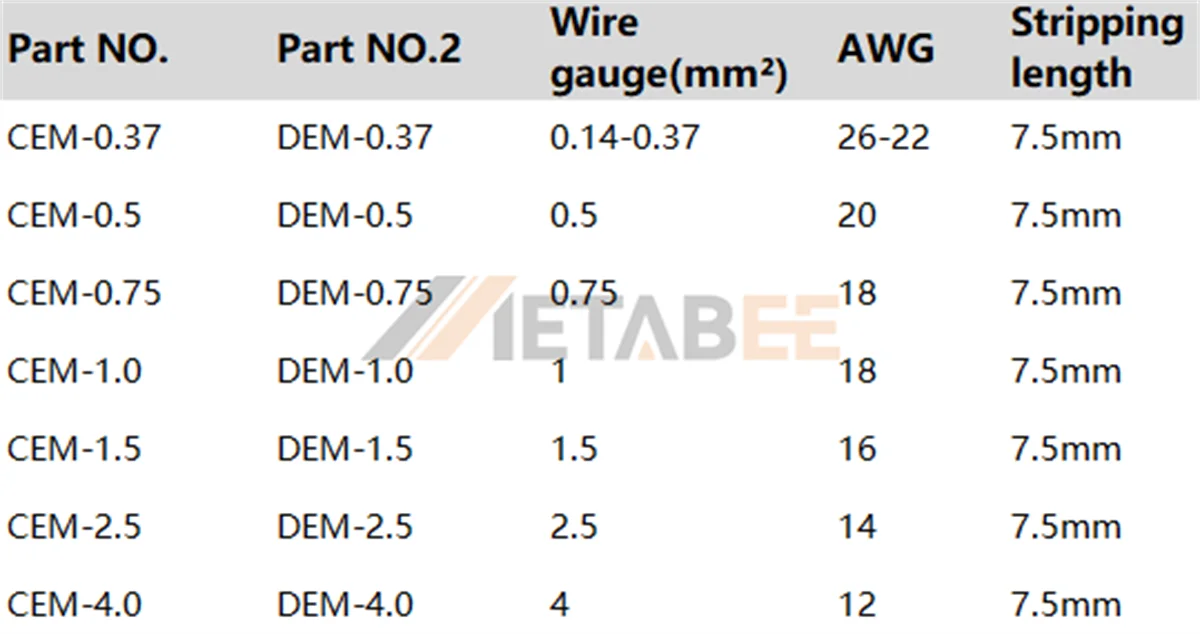

Wire Gauge Options

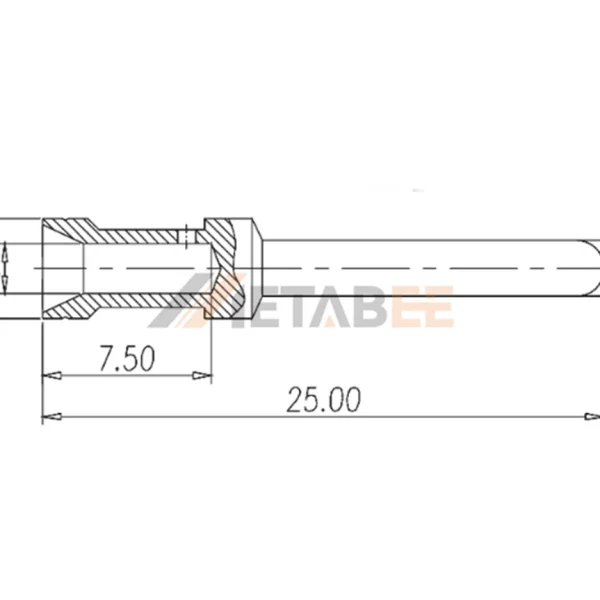

Structure of Heavy-Duty Connector
Type of Heavy-duty Connector Contacts
