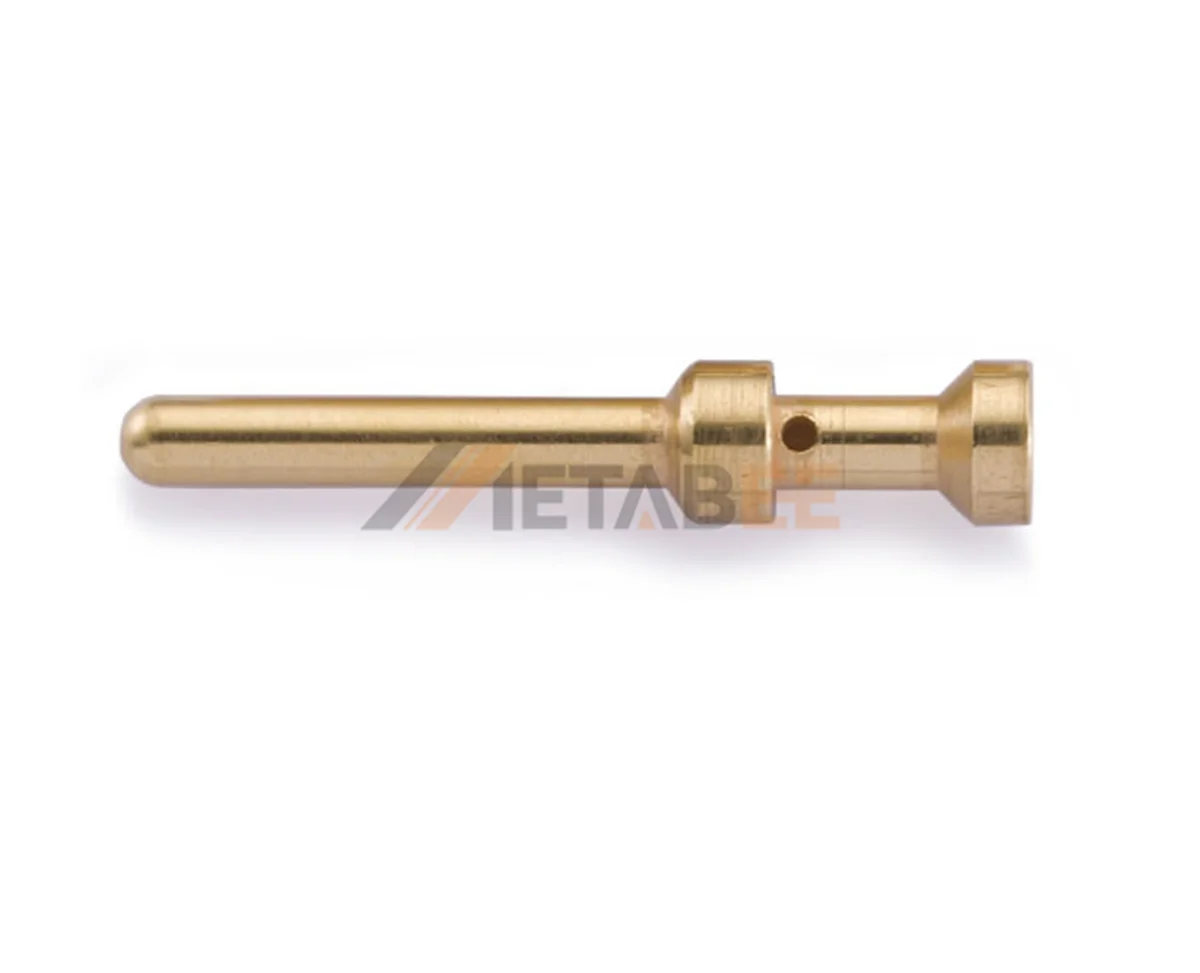

Heavy Duty Connector Contact for 16A Inserts and Modules, E-type Male Pin, Gold Plated Copper Alloy
Introduction:
This heavy duty connector contact supports 16A inserts and modules and uses an E-type male pin structure. The copper alloy body is coated with a gold plating layer that keeps conductivity stable and limits contact resistance. Gold plating resists oxidation and surface wear, allowing the contact point to stay clean during long-term operation. The crimp design forms a firm wire connection and helps maintain consistent electrical flow. The pin provides stable mating performance and reliable insertion force.
Note: The product supports multiple wire gauge options, and users can select the size that matches their wiring needs.
Main Specifications:
General Information:
| Product No.: | DEM-0.37 | |
| Category: | Heavy-Duty Connector Contacts | |
| Type of Contacts: | Crimp Contact | |
| Termination Method: | Crimp Termination | |
| Gender: | Male | |
| Contact Material: | Copper Alloy | |
| Surface: | Gold Plated | |
| Rated current: | 16A | |
| Contact resistance: | ≤1 mΩ | |
| Wire Gauge: | 0.14-0.37 mm² (AWG26-22) | |
| Stripping length: | 7.5 mm |
Wire Gauge Options
Structure of Heavy-Duty Connector
Type of Heavy-duty Connector Contacts
