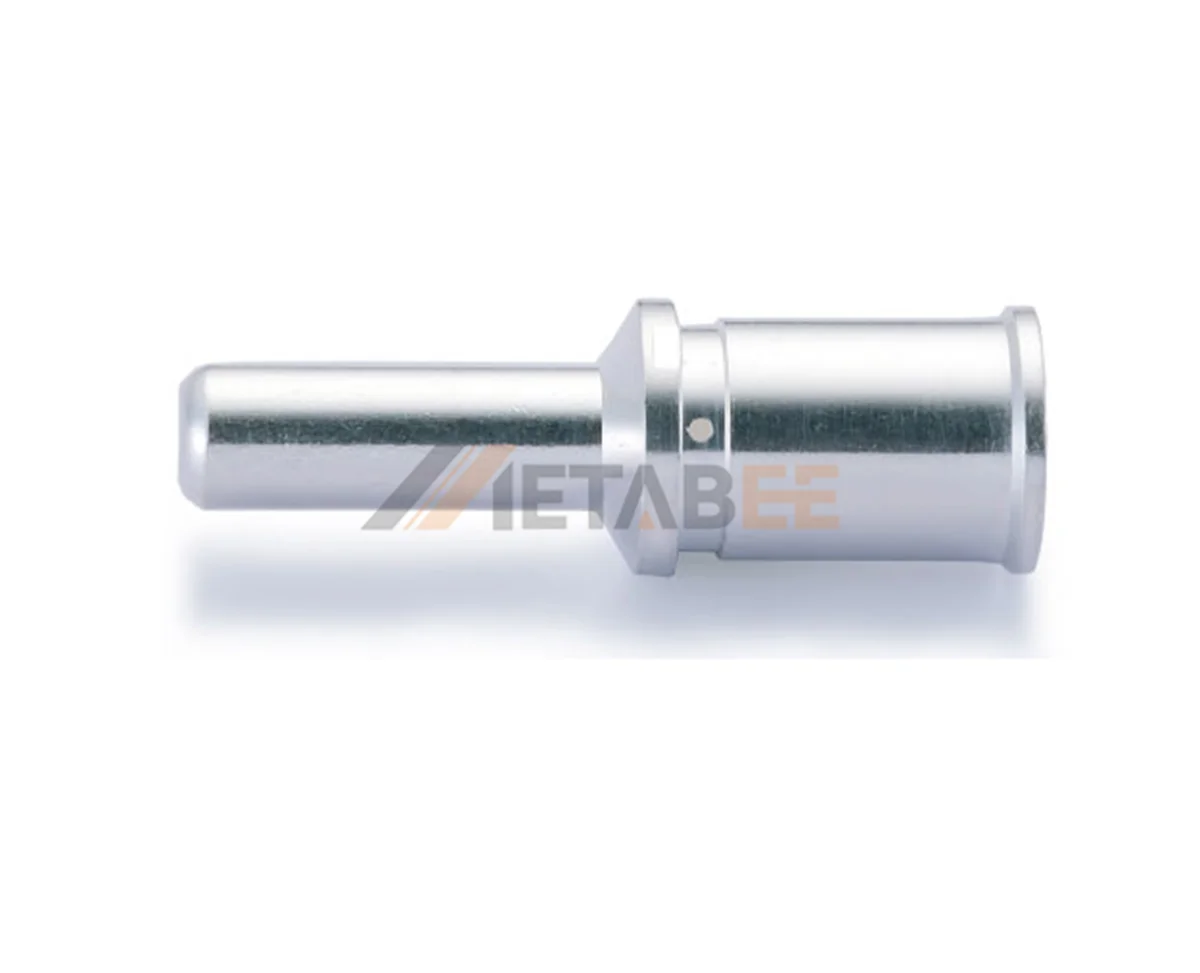

Heavy Duty Connector Contact for 70A HM Inserts, Male Crimp Pin, Silver Plated Copper Alloy
Introduction:
This heavy duty male contact is designed for 70A HM inserts and uses a silver-plated copper alloy body. The crimp structure supports firm wire termination and keeps the electrical path stable. The silver layer helps lower contact resistance and improves current flow under high load. It also reduces oxidation and keeps the mating surface consistent during long use. The pin maintains accurate alignment with the corresponding female contact and provides steady insertion force. The overall design supports strong conductivity for heavy duty power connections.
Note: The product supports multiple wire gauge options, and users can select the size that matches their wiring needs.
Main Specifications:
General Information:
| Product No.: | CIM-10 | |
| Category: | Heavy-Duty Connector Contacts | |
| Type of Contacts: | Crimp Contact | |
| Termination Method: | Crimp Termination | |
| Gender: | Male | |
| Contact Material: | Copper Alloy | |
| Surface: | Silver Plated | |
| Rated current: | 70A | |
| Contact resistance: | ≤3 mΩ | |
| Wire Gauge: | 10 mm² (AWG7) | |
| Diameter: | Φ4.3mm | |
| Stripping length: | 5 mm |
Structure of Heavy-Duty Connector
Type of Heavy-duty Connector Contacts
