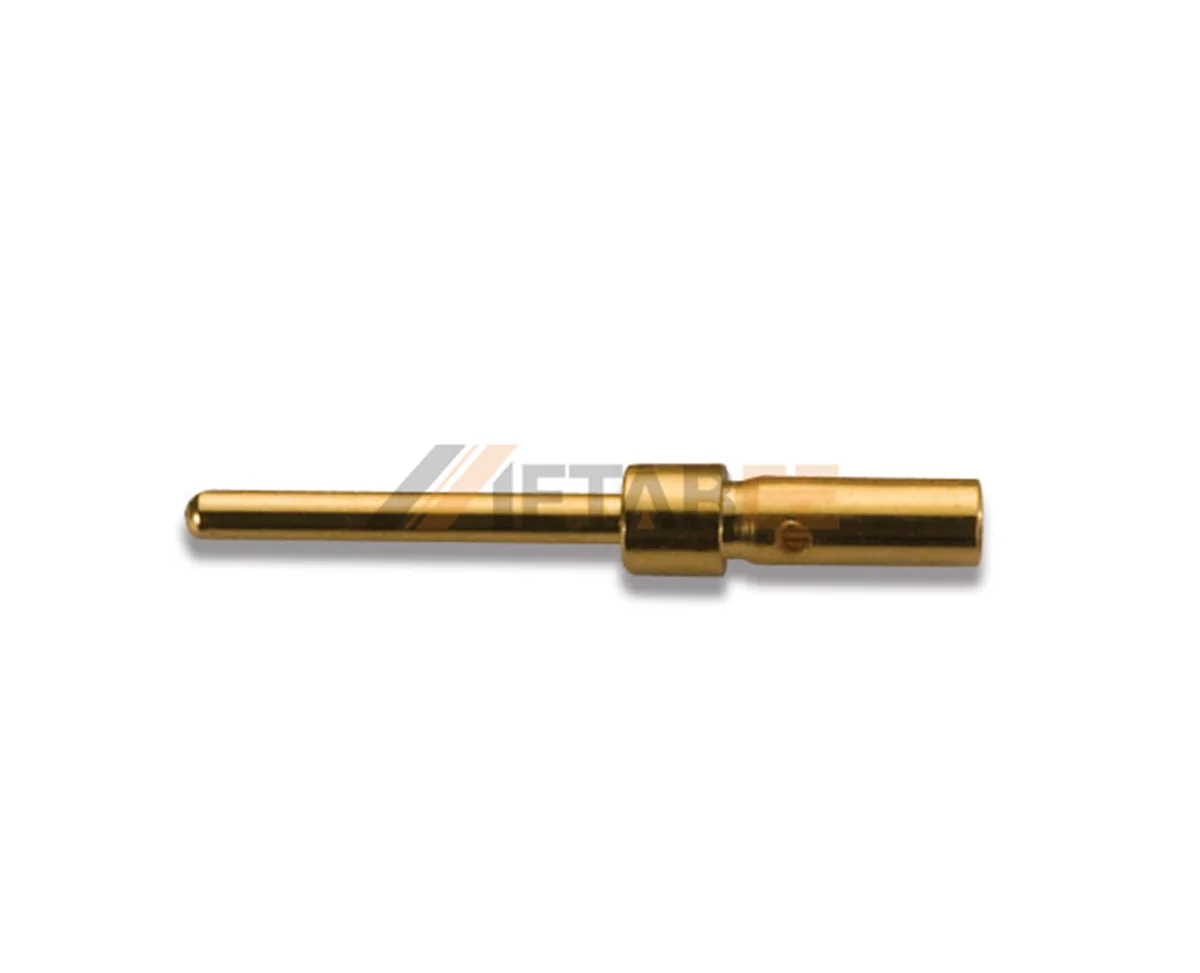

Heavy Duty Connector Contact for 5A HM Inserts, Male Terminal, Gold Plated Copper Alloy
Introduction:
This heavy duty connector contact is designed for 5A HM inserts and uses a male terminal structure. The contact is made of copper alloy with a gold-plated surface that keeps conductivity stable and minimizes resistance. The gold layer resists oxidation and provides a clean contact point over long use. The crimp design supports firm wire attachment and consistent electrical flow. The pin maintains steady mating accuracy to keep the interface reliable in repeated connection cycles.
Note: The product supports multiple wire gauge options, and users can select the size that matches their wiring needs.
Main Specifications:
General Information:
| Product No.: | DAM-08 | |
| Category: | Heavy-Duty Connector Contacts | |
| Type of Contacts: | Crimp Contact | |
| Termination Method: | Crimp Termination | |
| Gender: | Male | |
| Contact Material: | Copper Alloy | |
| Surface: | Gold Plated | |
| Rated current: | 5A | |
| Contact resistance: | ≤3 mΩ | |
| Wire Gauge: | 0.08-0.21 mm² (AWG28-24) | |
| Stripping length: | 5 mm |
Wire Gauge Options
Structure of Heavy-Duty Connector
Type of Heavy-duty Connector Contacts
