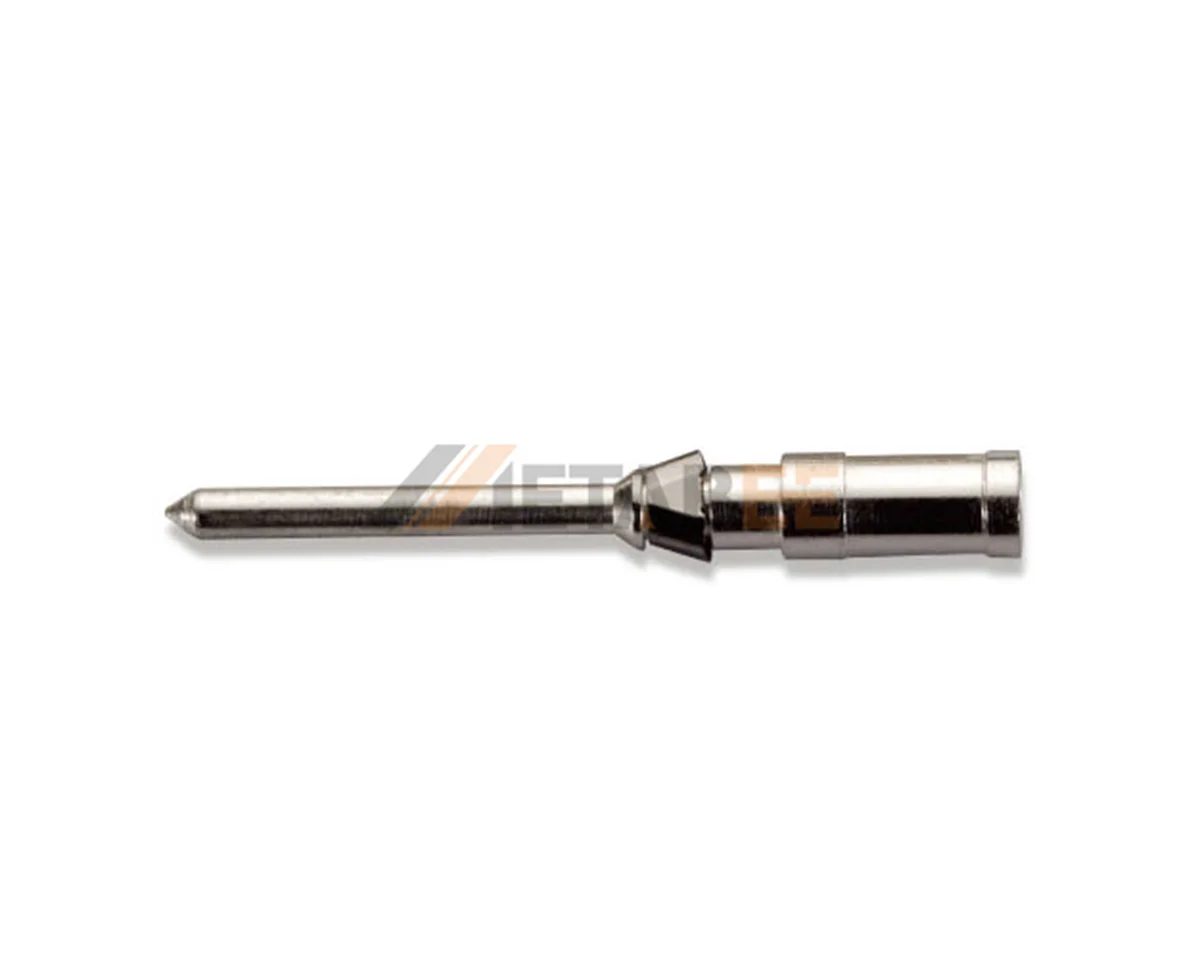

Heavy Duty Connector Contacts for 10A Inserts, D-type Male Pin, Silver Plated Copper Alloy
Introduction:
This heavy duty connector contact is designed for 10A inserts and uses a D-type male pin layout. It is made from copper alloy and finished with silver plating to maintain stable conductivity and low contact resistance. The crimp structure allows secure wire attachment and ensures consistent electrical flow. The pin provides steady insertion force and accurate mating with the corresponding female contact. The silver surface helps limit oxidation and keeps the pin interface stable during long use. The design supports reliable performance in heavy duty connector assemblies.
Note: The product supports multiple wire gauge options, and users can select the size that matches their wiring needs.
Main Specifications:
General Information:
| Product No.: | CDM-0.37 | |
| Category: | Heavy-Duty Connector Contacts | |
| Type of Contacts: | Crimp Contact | |
| Termination Method: | Crimp Termination | |
| Gender: | Male | |
| Contact Material: | Copper Alloy | |
| Surface: | Silver Plated | |
| Rated current: | 10A | |
| Contact resistance: | ≤3mΩ | |
| Wire Gauge: | 0.14-0.37 mm² (AWG 26-22) | |
| Stripping length: | 8 mm |
Wire Gauge Options for Silver-Plated and Gold-Plated Male Contacts
Structure of Heavy-Duty Connector
Type of Heavy-duty Connector Contacts
