HDMI Type A Receptacle, PCB Surface Mount, R/A
Introduction:
The hdmi type a receptacle in a right-angle, surface-mount configuration delivers a robust interconnect solution for pcb integration. This single-port, 19-pin female connector supports high-definition multimedia interfaces while maintaining a low-profile footprint. The right-angle orientation facilitates streamlined cable routing in space-constrained enclosures, and the surface-mount design enables automated assembly processes, reducing manufacturing cycle times. Rated for 0.5 a continuous current and 40 v operating voltage, this component reliably handles standard hdmi signalling requirements without thermal derating across its intended range.
Constructed with a ul94 v-0 flame-retardant housing, the connector ensures safety compliance in consumer and industrial electronics. The operating temperature span from -55 °c to +85 °c guarantees stable performance in harsh environments, from cold storage systems to high-heat av racks. Gold-plated contacts resist corrosion and maintain low insertion loss over repeated mating cycles, while the robust shell design provides mechanical retention against vibration and shock. This receptacle suits digital signage, set-top boxes, gaming consoles, and embedded computing modules where pcb real estate and signal fidelity are critical.
Key Features
- Single-port type a receptacle with 19 pins for full hdmi compatibility.
- Right-angle mounting orientation for optimal cable exit and chassis layout.
- Pcb surface-mount termination for high-speed automated soldering.
- 0.5 a current and 40 v voltage ratings for standard hdmi power delivery.
- Ul94 v-0 flame-retardant housing and -55 °c to +85 °c operational range.
- Durable contact plating and shielded construction for signal integrity.

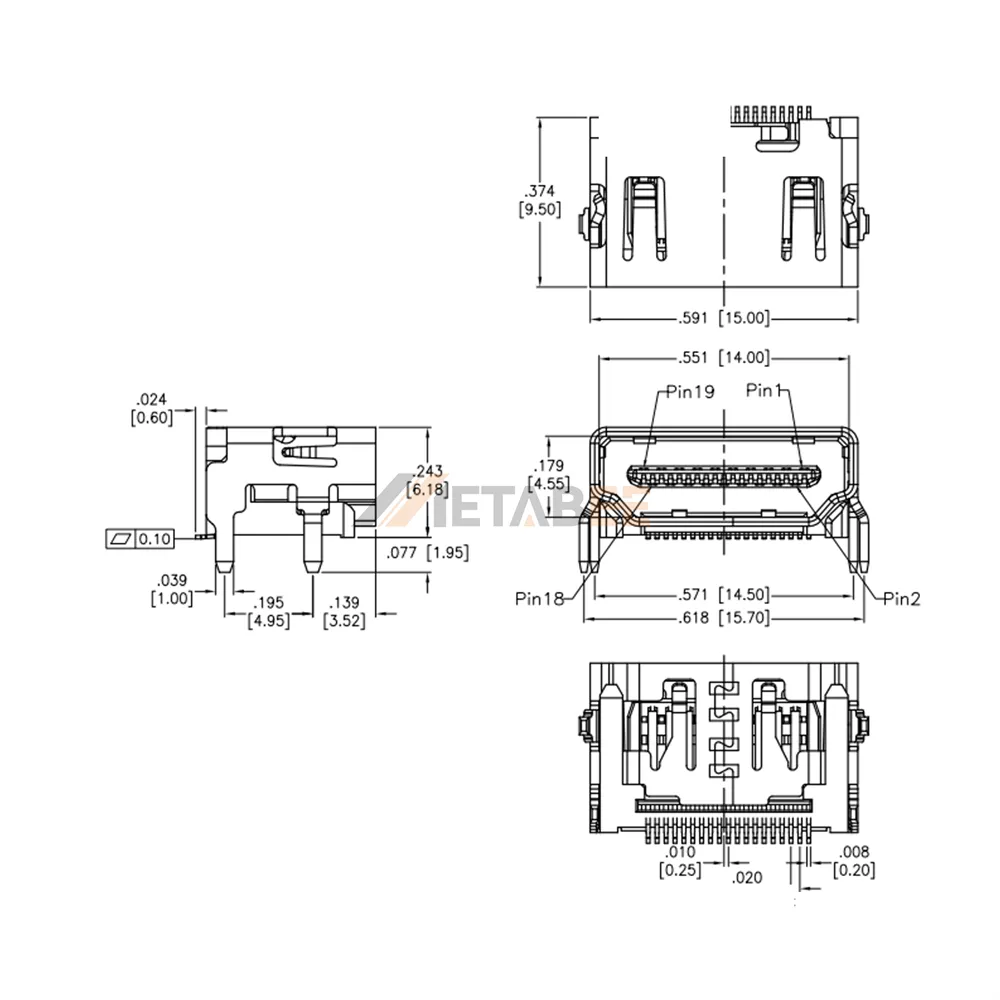

Main Specifications:
General Information:
| Product No.: | HDMI-S-RA-SMT-01-T/R | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Receptacle:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
