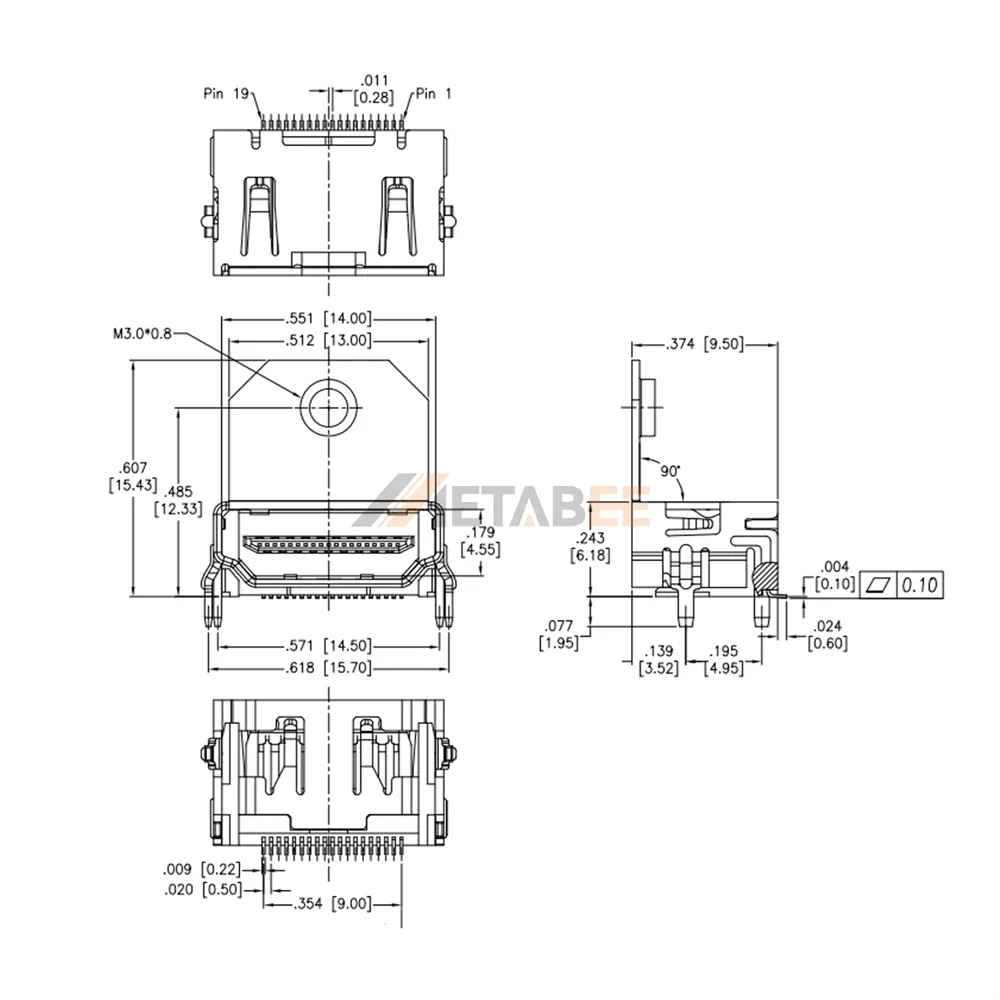

HDMI Type A Female Connector with Surface Mount
Introduction:
Optimize your electronic designs with our high-performance HDMI Type A Receptacle, meticulously engineered for efficient PCB surface mounting. This single-port, 19-pin connector ensures robust and reliable high-definition audio and video transmission, making it an essential component for a wide spectrum of modern multimedia applications. Its right-angle mounting orientation provides crucial flexibility in board layout, allowing for optimal space utilization and simplified assembly in devices where compact design is paramount. Built for exceptional durability and consistent performance, this receptacle is designed to seamlessly integrate into and enhance your electronic systems.
This HDMI connector is precision-engineered to deliver superior electrical performance, featuring a rated current of 0.5A and a rated voltage of 40V, guaranteeing stable signal integrity and power delivery. Safety and reliability are paramount, underscored by its UL94V-0 flame retardant rating, which offers enhanced protection in diverse operational environments. Furthermore, its robust construction ensures dependable functionality across an extensive operating temperature range from -55°C to 85°C, making it suitable for even the most demanding conditions. This receptacle provides a secure and high-quality connectivity solution for various applications, from consumer electronics to specialized industrial equipment.
Key Features
- Type A Receptacle Interface: Standard 19-pin for universal HDMI compatibility.
- Single Port Design: Streamlined integration for space-conscious applications.
- Right-Angle Mounting: Facilitates versatile PCB layouts and compact device profiles.
- PCB Surface Mount: Enables efficient automated assembly and robust board attachment.
- 0.5A, 40V Electrical Rating: Ensures reliable signal and power transmission.
- UL94V-0 Flame Retardant: Provides enhanced safety and operational integrity.
Main Specifications:
General Information:
| Product No.: | HDMI-S-RA1-SMT-02-MF-15 | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Receptacle:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
