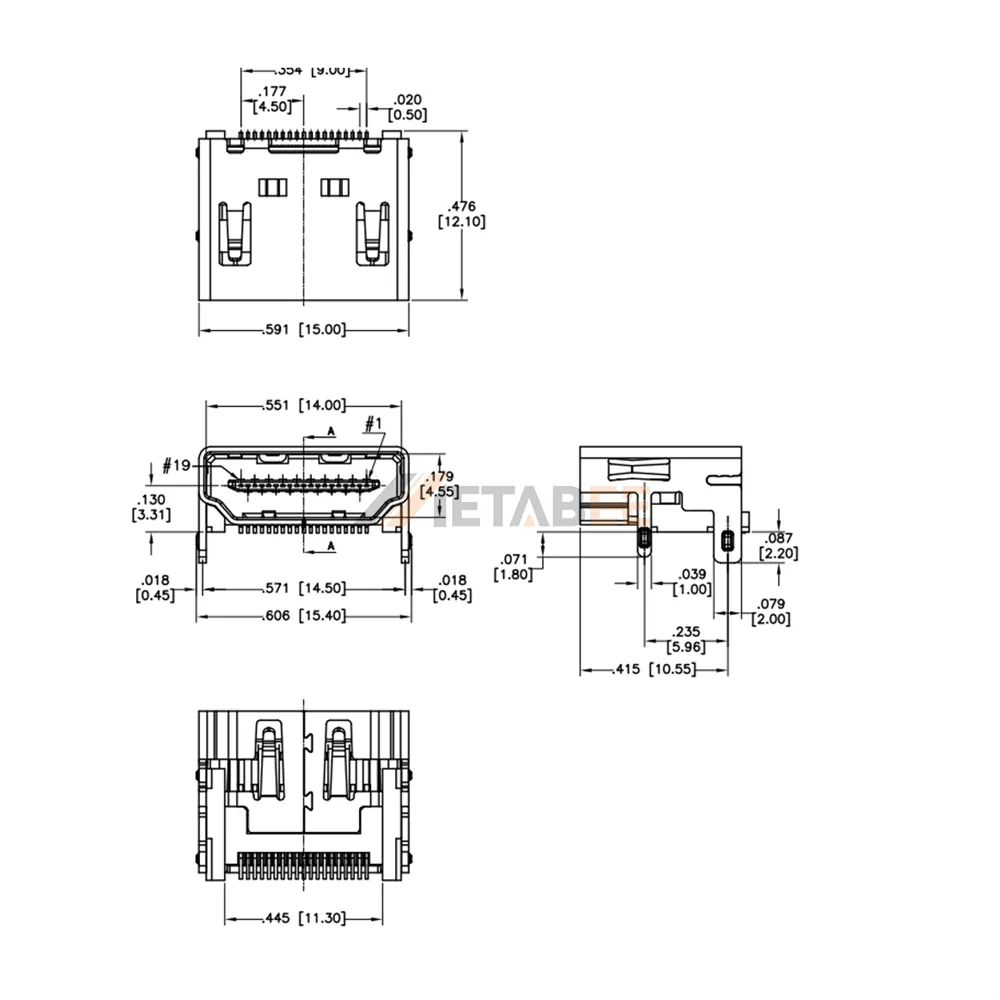

HDMI Type A Receptacle for PCB, SMT, R/A
Introduction:
This HDMI Type A receptacle provides a reliable 19-pin interface in a right-angle, surface mount configuration for PCB applications. The single-port design is well suited to compact audiovisual equipment, display modules, and embedded systems that require stable signal transmission and efficient use of board space.
The connector is rated for 0.5A current and 40V voltage, supporting low-power digital video and audio transmission. Constructed with UL94V-0 rated materials, it offers strong flame resistance for enhanced safety. It operates reliably across a temperature range of -55°C to 85°C, making it suitable for industrial and consumer environments with varying thermal conditions.
Key Features
- 19-pin HDMI Type A receptacle
- Right-angle PCB surface mount mounting
- Single port configuration
- 0.5A rated current and 40V rated voltage
- UL94V-0 flame retardant housing
- Operating temperature range of -55°C to 85°C
Main Specifications:
General Information:
| Product No.: | HDMI-S-RA-SMT | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Receptacle for PCB:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
