HDMI Type A PCB Thru Hole Female Connector, R/A
Introduction:
Hdmi type a pcb thru hole female connector with right-angle orientation for space-efficient board mounting. This single-port 19-pin receptacle supports stable audiovisual signal transmission in compact electronic devices, set-top boxes, and display interfaces.
Rated for 0.5a current and 40v voltage, the connector ensures reliable low-power operation across multimedia applications. The thru-hole termination provides strong mechanical retention on the pcb, reducing stress from repeated cable insertion and removal.
The housing meets ul94v-0 flammability standards and operates reliably from -55°c to 85°c, making it suitable for industrial and consumer environments requiring consistent thermal performance.
Key Features
- Type a female receptacle, 19-pin configuration
- Right-angle pcb thru-hole mounting
- 0.5a current and 40v voltage ratings
- Ul94v-0 flame-retardant housing
- Wide operating range: -55°c to 85°c
- Single-port design for compact integration

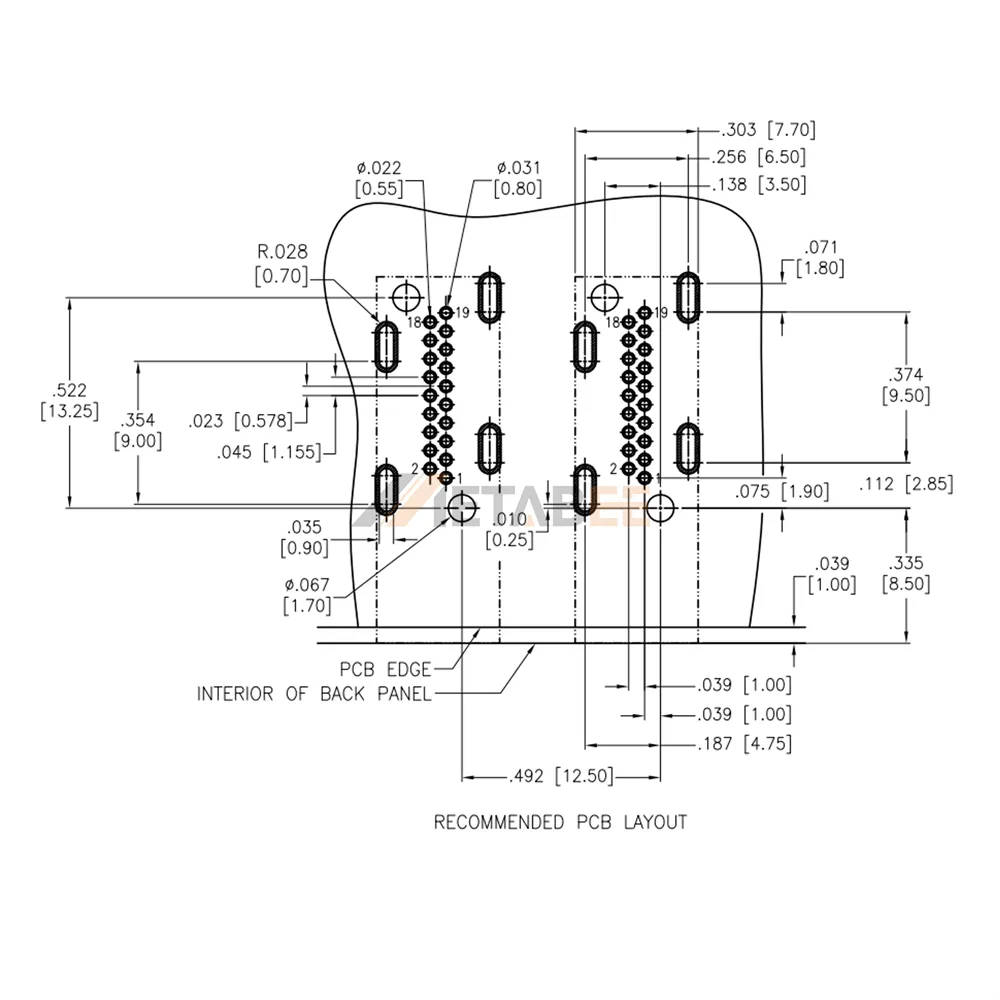

Main Specifications:
General Information:
| Product No.: | HDMI-S-RU-1-15 | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A PCB Thru Hole Female Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
