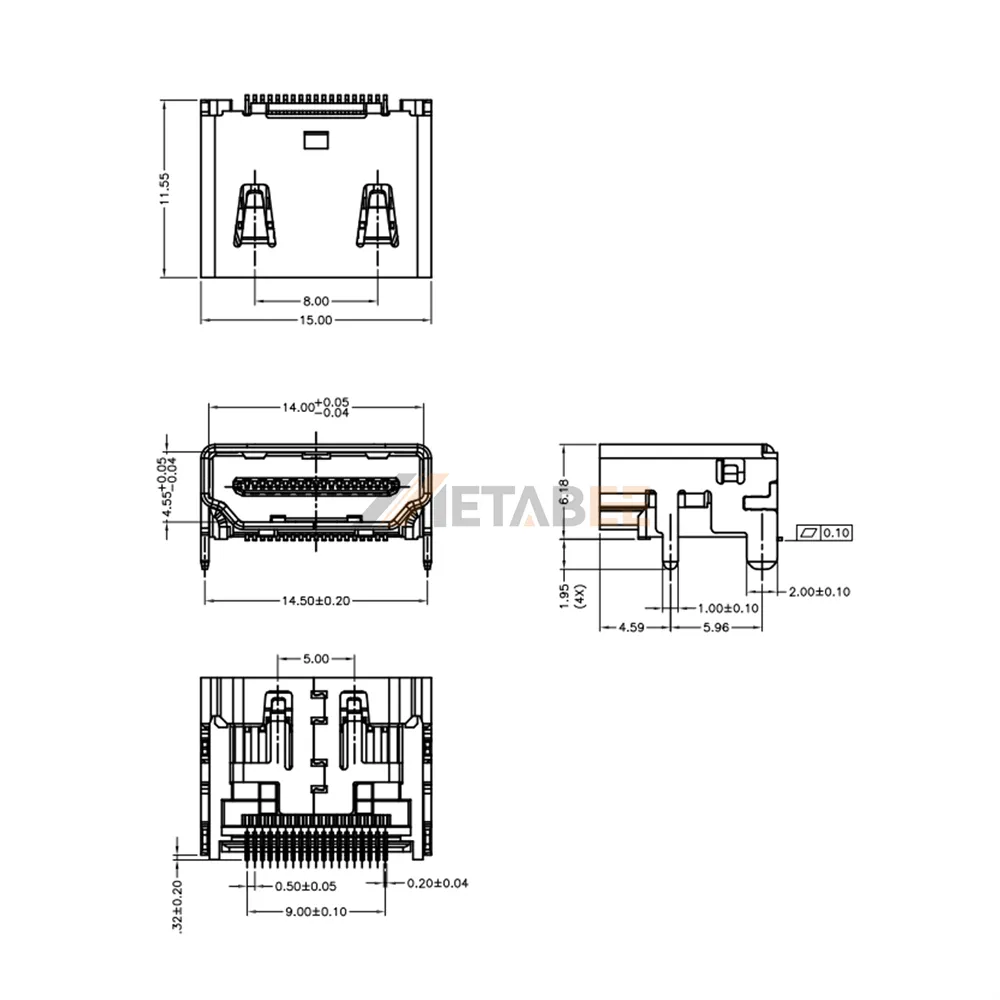

HDMI Type A Female PCB Mount Connector, SMT, R/A
Introduction:
This hdmi type a female pcb mount connector offers a reliable surface-mount solution for digital audio/video interfaces. Designed with a right-angle orientation, it saves board space and enables low-profile cable connections in compact devices. The receptacle features 19 pins in a single port configuration, ensuring full compliance with hdmi 1.4 and 2.0 signal integrity requirements. Its robust housing meets ul94v-0 flame retardancy, while the operating temperature range from -55°c to +85°c guarantees stable performance in harsh environments.
Rated at 0.5a and 40v, this connector supports standard hdmi power delivery and hot-plug detection. The surface-mount termination simplifies automated assembly, and the right-angle design reduces mechanical stress on solder joints during cable insertion and extraction. Typical applications include set-top boxes, gaming consoles, medical monitors, and industrial displays where space constraints demand a side-entry interface. For optimal soldering, follow the recommended reflow profile and stencil design to avoid bridging between the closely spaced pins.
Key Features
- Type a receptacle, single port, 19-pin hdmi compliant.
- Right-angle pcb mount with surface-mount termination.
- Rated 0.5a at 40v for standard signal and power.
- Ul94v-0 flame-retardant housing for safety.
- Wide operating temperature: -55°c to +85°c.
- SMT design enables high-speed automated assembly.
Main Specifications:
General Information:
| Product No.: | HDMI-S-RA-SMT-A-30-NKT-TR | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Female PCB Mount Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
