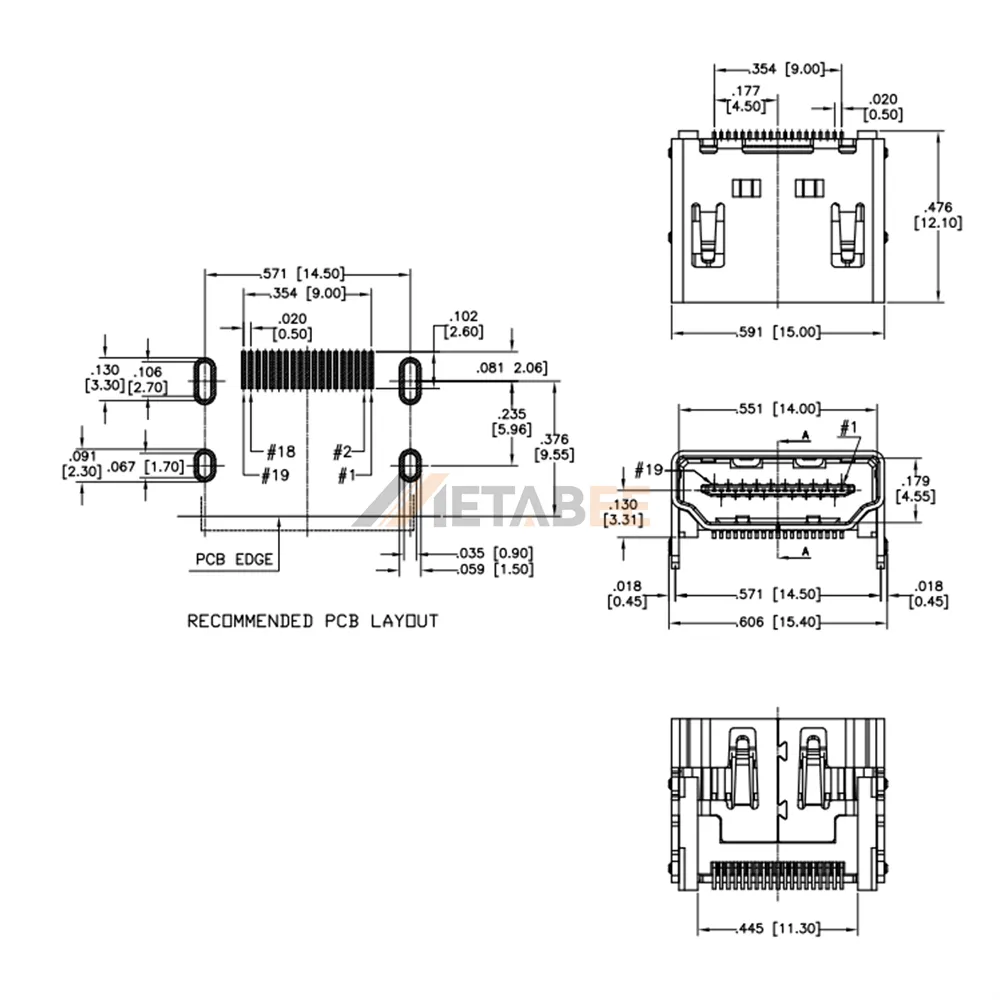

HDMI Type A Female PCB Connector, Surface Mount, R/A
Introduction:
The hdmi type a female pcb connector, surface mount, right angle, offers a reliable interconnect solution for high-definition audio and video applications. This single-port receptacle features 19 pins in the standard type a configuration, ensuring full compatibility with hdmi 1.4 and earlier specifications. Its right-angle mounting orientation saves valuable board space, while the surface-mount design enables automated assembly processes and reduces manufacturing costs. Rated at 0.5a and 40v, this connector handles typical signal and low-power transmission requirements with ease.
Constructed with a ul94v-0 flame-retardant housing, it provides excellent safety against fire hazards in consumer electronics, industrial displays, and automotive infotainment systems. The operating temperature range spans from -55°c to +85°c, guaranteeing stable performance in extreme environments, from cold storage facilities to engine-adjacent installations. Gold-plated contacts resist corrosion and ensure low insertion loss over multiple mating cycles, making this receptacle a durable choice for high-frequency signal integrity.
Key Features
- Hdmi type a, single port, 19-pin receptacle.
- Right-angle surface mount for space-saving pcb layout.
- 0.5a current and 40v voltage ratings.
- Ul94v-0 flame-retardant housing.
- Wide operating temperature: -55°c to +85°c.
- Surface-mount design for automated pick-and-place.
Main Specifications:
General Information:
| Product No.: | HDMI-S-RA-SMT-15-TR | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Female PCB Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
