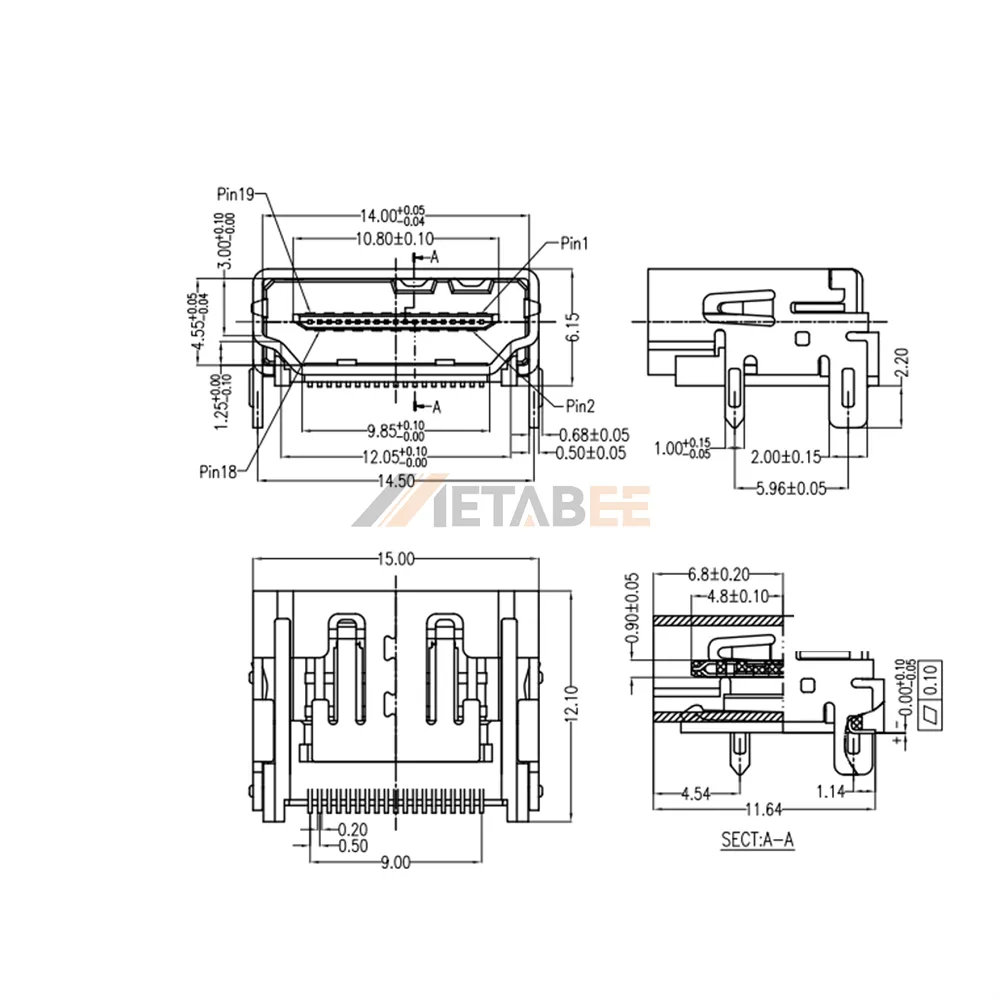

HDMI Type A Female Connector with SMT, PCB Mount
Introduction:
The HDMI type A female connector is a 19-pin receptacle designed for reliable PCB surface mounting in compact electronic devices. Its right-angle orientation supports efficient board layout and convenient cable connection, making it suitable for HDMI interface applications.
With a rated current of 0.5A and rated voltage of 40V, this connector provides stable electrical performance. The UL94V-0 flame-retardant housing and -55°C to +85°C operating temperature range support reliable use across demanding electronic environments.
Key Features
- Type A, 19-pin HDMI receptacle
- Single-port configuration
- Right-angle mounting orientation
- PCB surface mount with SMT
- 0.5A rated current, 40V rated voltage
- UL94V-0, -55°C to +85°C operating temperature
Main Specifications:
General Information:
| Product No.: | HDMI-S-RA-1-SMT-03B-15 | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Female Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
