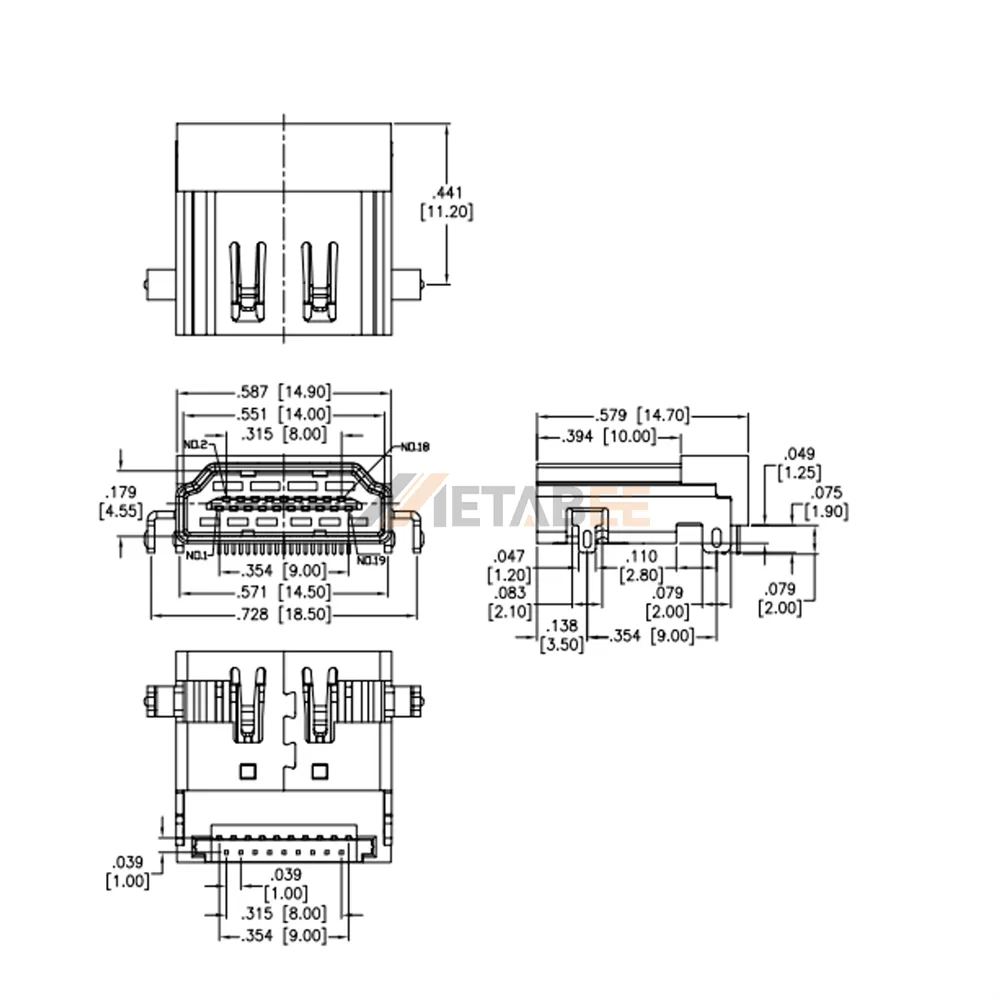

HDMI Type A Female Connector, PCB Thru Hole, R/A
Introduction:
This 19-pin HDMI type a receptacle is engineered for robust pcb integration in high-definition audio/video applications. Featuring a right-angle orientation and thru-hole mounting, it delivers strong mechanical retention and stable electrical connections, making it ideal for devices subject to repeated plug/unplug cycles such as set-top boxes, gaming consoles, and industrial displays. The single-port design provides a standard HDMI interface for reliable signal transmission.
Designed for consistent performance, the connector supports a current rating of 0.5a and a voltage rating of 40v, suitable for low-power signal circuits. It meets ul94v-0 flammability standards for enhanced fire safety, and operates reliably across a wide temperature range from -55°c to +85°c, ensuring dependable functionality in demanding environments.
Key Features
- 19-pin HDMI Type A receptacle, single port
- Right-angle orientation for space-efficient PCB layout
- PCB thru-hole mounting for secure mechanical strength
- Rated for 0.5A / 40V operation
- UL94V-0 flame-retardant housing
- Operating temperature range: -55°C to +85°C
Main Specifications:
General Information:
| Product No.: | HDMI-S-RA-1-RF-02 | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Female Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
