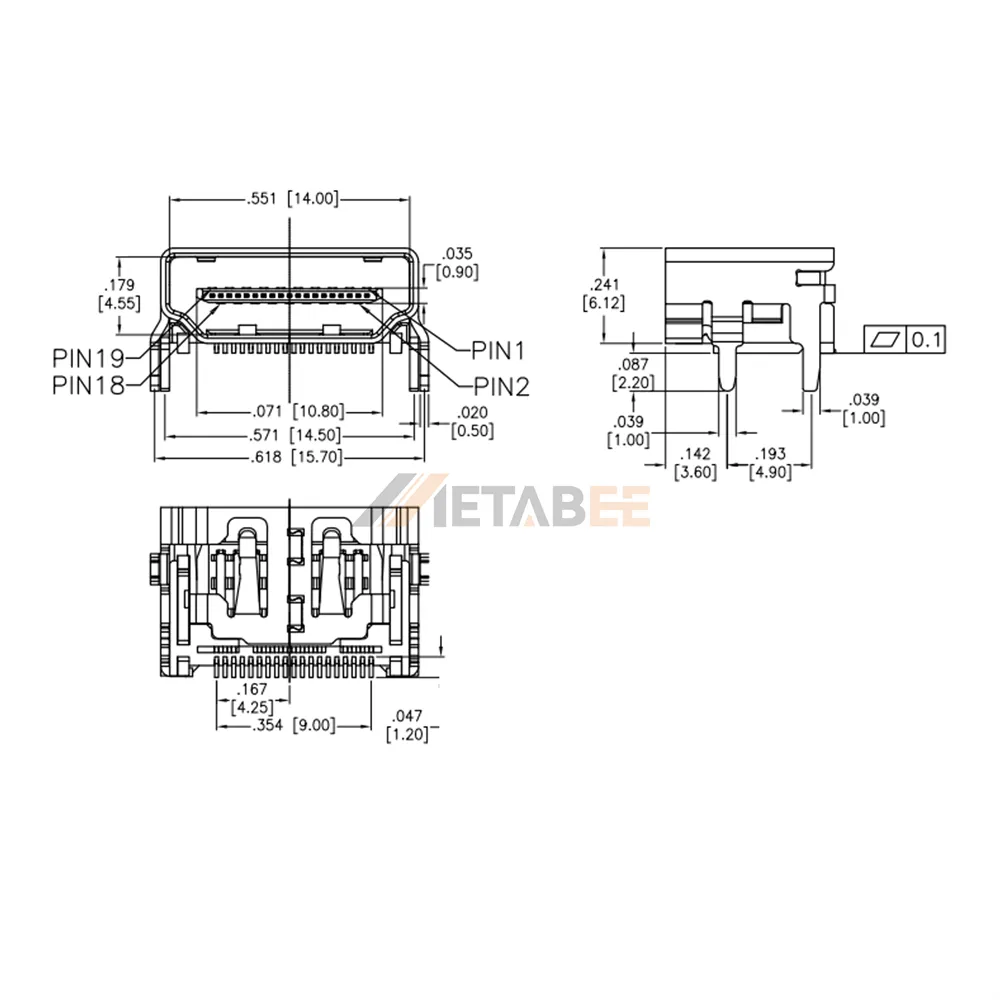

HDMI Type A Female Connector, PCB Surface Mount, R/A
Introduction:
Elevate your product designs with our premium HDMI Type A Female Connector, expertly crafted for seamless integration onto printed circuit boards. This single-port, 19-pin receptacle offers robust and reliable high-definition audio and video transmission, making it an indispensable component for a diverse range of multimedia applications. Its right-angle mounting orientation coupled with a PCB surface mount design provides critical flexibility in board layout, optimizing space efficiency and simplifying the assembly process in devices with compact form factors. Engineered for both durability and superior performance, this connector meets the stringent demands of contemporary electronic systems.
This HDMI connector is meticulously engineered with an electrical rating of 0.5A and 40V, ensuring unwavering power delivery and signal integrity across all operations. Safety is a paramount consideration, reflected in its UL94V-0 flame retardant rating, which delivers enhanced protection and peace of mind in various operational environments. Furthermore, its rugged construction guarantees consistent functionality across an expansive operating temperature range from -55°C to 85°C, ensuring reliable performance even in the most challenging conditions. This connector is an optimal solution for consumer electronics, industrial equipment, and automotive systems alike.
Key Features
- Type A Female Interface: Standard 19-pin receptacle for broad compatibility.
- Single Port Configuration: Streamlined design for efficient space utilization.
- Right-Angle Mounting: Facilitates flexible PCB layout and compact designs.
- PCB Surface Mount: Enables automated assembly and robust board integration.
- 0.5A, 40V Electrical Rating: Ensures stable and reliable signal transmission.
- UL94V-0 Flame Retardant: Provides enhanced safety and operational integrity.
Main Specifications:
General Information:
| Product No.: | HDMI-S-RA-SMT-07-TR | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Female Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
