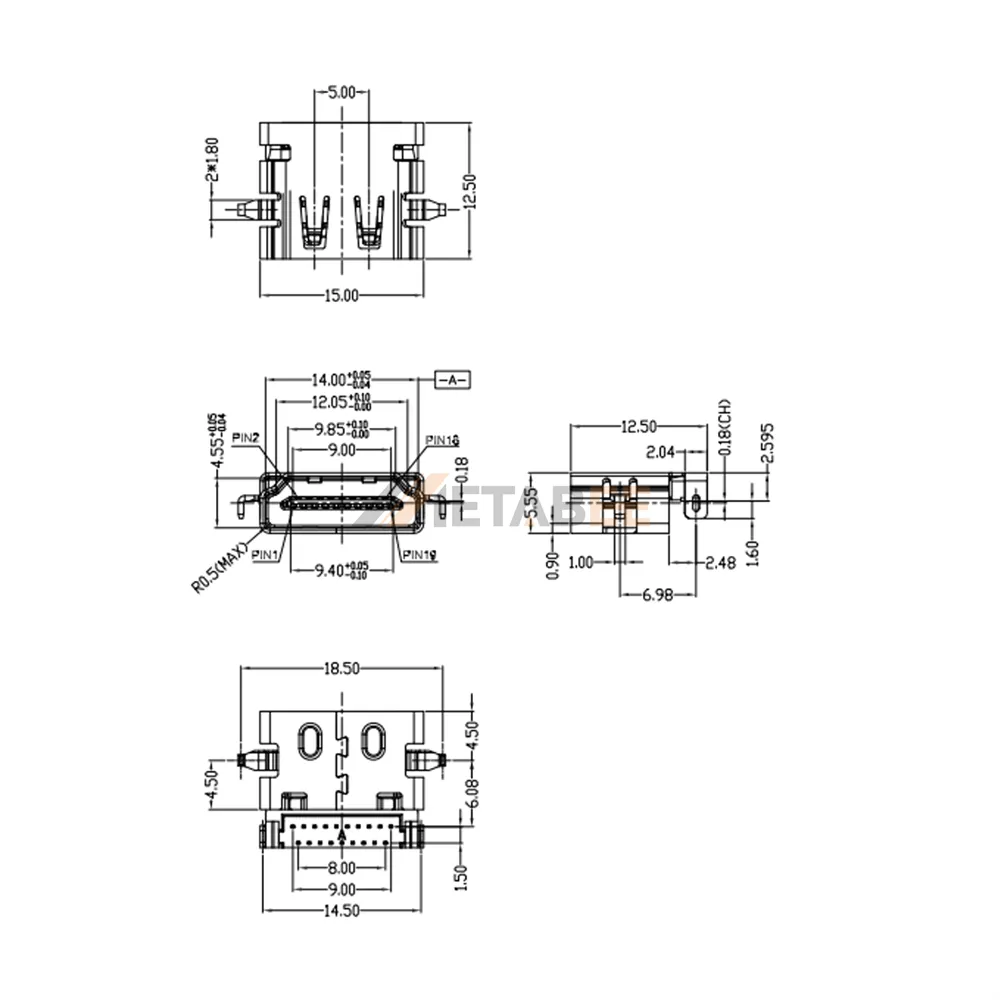

HDMI Type A Female Connector for PCB, Thru Hole, 90 Degree
Introduction:
This hdmi type a female connector for pcb is a single-port, 19-pin receptacle designed for reliable hdmi connectivity in electronic and pcb applications. Its 90-degree right-angle configuration supports space-efficient board layouts, while the through-hole mounting provides secure mechanical attachment and stable pcb installation.
With a rated current of 0.5a and rated voltage of 40v, this hdmi receptacle provides dependable electrical performance for compatible devices and systems. The ul94v-0 flame-retardant material enhances safety, while the -55°c to +85°c operating temperature range supports reliable operation across demanding environments.
Key Features
- Type a, 19-pin hdmi receptacle
- Single-port female connector
- 90-degree right-angle design
- Pcb through-hole mounting
- 0.5a rated current and 40v rated voltage
- Ul94v-0, -55°c to +85°c operating temperature
Main Specifications:
General Information:
| Product No.: | HDMI-S-RA-1-RF-05-TR | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Female Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
