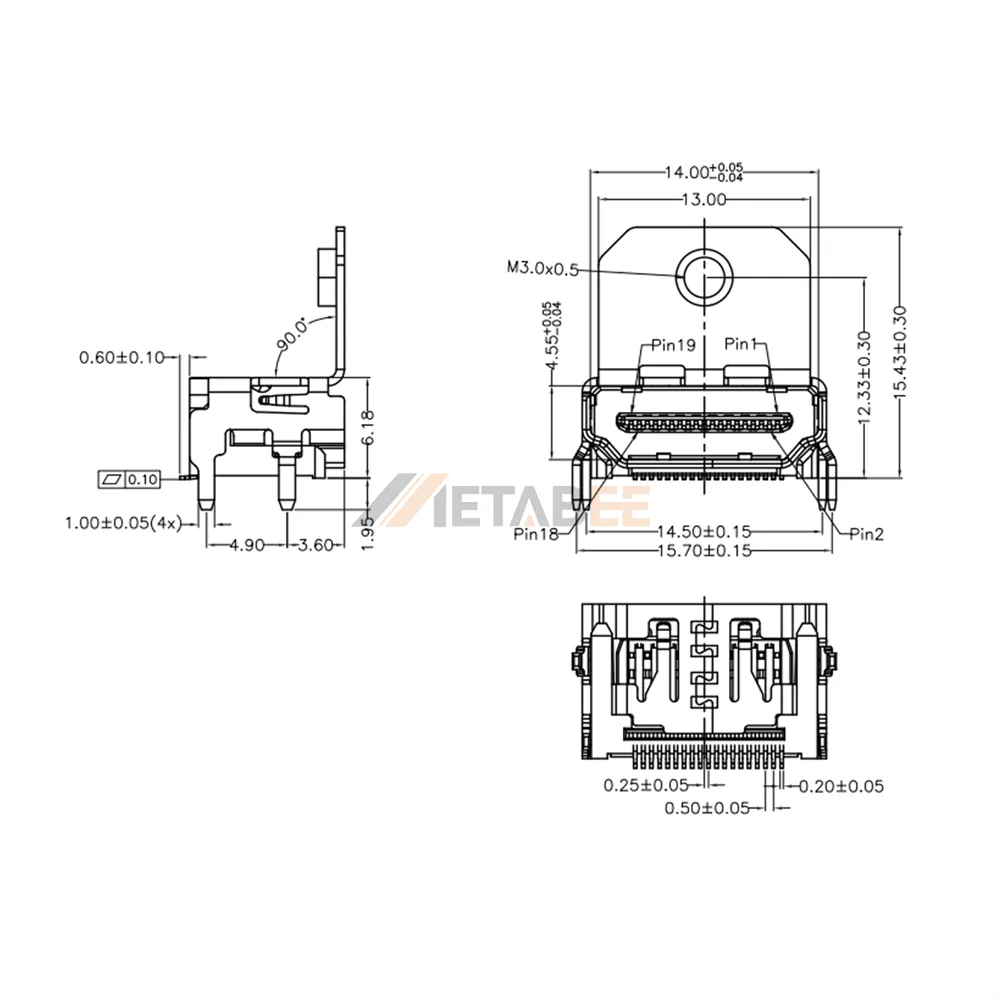

HDMI Type A Female Connector for PCB, Surface Mount
Introduction:
The HDMI type A female connector is a 19-pin receptacle designed for reliable pcb surface mount applications. Featuring a right-angle mounting orientation and single-port configuration, it helps optimize pcb space while providing convenient and stable hdmi connectivity for electronic equipment.
With a rated current of 0.5A and rated voltage of 40V, this connector delivers dependable electrical performance. The ul94v-0 flame-retardant material enhances safety, while the -55°C to +85°C operating temperature range supports reliable operation in a wide variety of demanding environments.
Key Features
- Type a, 19-pin hdmi receptacle
- Single-port configuration
- Right-angle mounting orientation
- Pcb surface mount design
- 0.5A rated current and 40V rated voltage
- Ul94v-0, -55°C to +85°C operating temperature
Main Specifications:
General Information:
| Product No.: | HDMI-S-RA-SMT-01-MF | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Female Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
