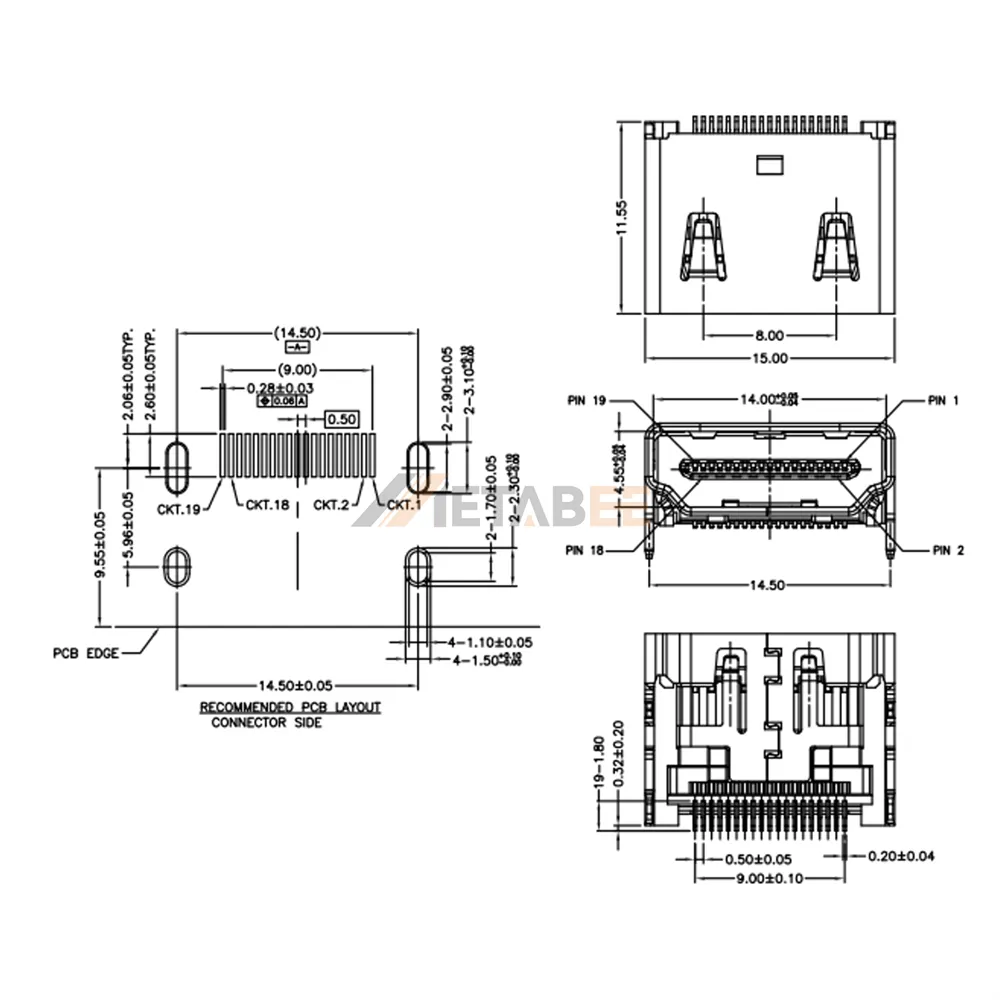

HDMI Type A Female Connector for PCB, SMT, Right Angle
Introduction:
Elevate your electronic designs with our premium HDMI Type A Female Connector, meticulously engineered for seamless integration into printed circuit boards (PCBs). This single-port, 19-pin receptacle ensures reliable high-definition video and audio transmission, making it an ideal choice for a wide array of multimedia applications. Its right-angle mounting orientation and PCB surface mount design offer versatile placement options, optimizing space and simplifying assembly in compact devices. Built for durability and performance, this connector is designed to meet the rigorous demands of modern electronics.
Engineered with precision, this HDMI connector boasts an electrical rating of 0.5A and 40V, guaranteeing stable power delivery and signal integrity. Safety is paramount, reflected in its UL94V-0 flame retardant rating, providing enhanced protection in various operating environments. Furthermore, its robust construction allows for a broad operating temperature range from -55°C to 85°C, ensuring consistent performance in extreme conditions. Whether for consumer electronics, industrial equipment, or automotive systems, this connector offers a dependable solution for your connectivity needs.
Key Features
- Type A Female Interface: Standard 19-pin receptacle for universal compatibility.
- Single Port Design: Streamlined connectivity for compact applications.
- Right-Angle Mounting: Space-saving configuration for diverse PCB layouts.
- PCB Surface Mount: Easy and efficient integration onto circuit boards.
- Electrical Reliability: Rated for 0.5A current and 40V voltage.
- High Durability: UL94V-0 flame retardant and -55°C to 85°C operating temperature.
Main Specifications:
General Information:
| Product No.: | HDMI-S-RA-SMT-04-TR | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Female Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
