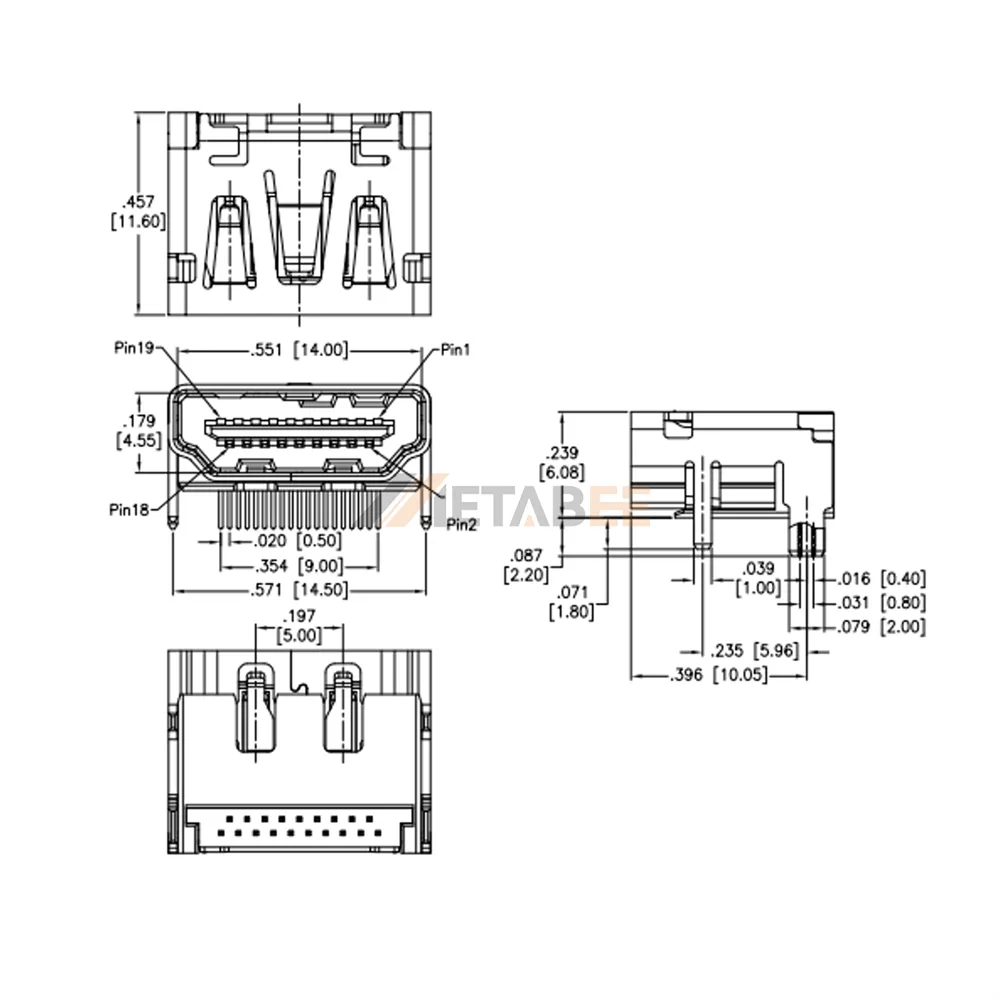

HDMI Type A Female Connector for PCB, 19 Pin, Thru Hole
Introduction:
The HDMI type a female connector for pcb is a single-port, 19-pin receptacle designed for reliable HDMI connectivity in pcb applications. Featuring a right-angle orientation and through-hole mounting, it provides secure mechanical attachment and stable electrical performance.
With a 0.5a rated current and 40v rated voltage, this HDMI receptacle is suitable for a wide range of consumer electronics, display equipment, and embedded devices. The ul94v-0 flame-retardant housing enhances safety and reliability, while its -55°c to +85°c operating temperature range supports dependable performance across demanding environments.
Key Features
- Type A HDMI receptacle
- Single port, 19-pin design
- Right-angle PCB orientation
- Through-hole PCB mounting
- 0.5A current / 40V voltage rating
- UL94V-0, -55°C to +85°C operating temperature
Main Specifications:
General Information:
| Product No.: | HDMI-S-RA-1 | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Female Connector for PCB:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
