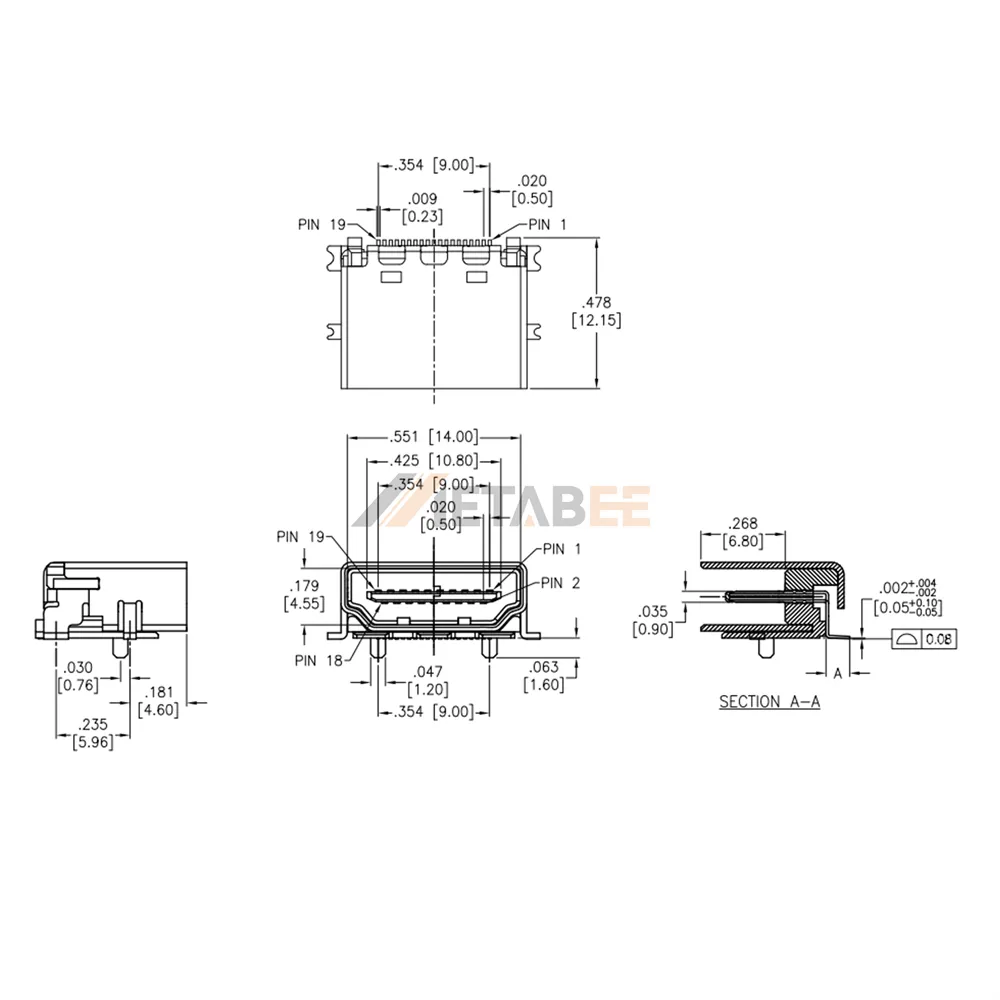

HDMI Type A Female Connector, 19 Pin, Surface Mount
Introduction:
This premium 19-pin type a female hdmi receptacle delivers high-speed digital audio and video transmission for compact pcb designs. Built for standard surface mount technology (smt), this single-port connector features a space-saving right-angle mounting orientation that integrates seamlessly into modern consumer electronics, displays, and embedded systems.
Engineered to meet rigorous industrial standards, it provides reliable electrical performance rated at 0.5 a and 40 v. The robust housing utilizes a ul94v-0 flame-retardant thermoplastic construction, ensuring exceptional heat resistance and mechanical durability across an extreme operating temperature range of -55°c to 85°c.
Key Features
- Interface: Standard 19-pin hdmi type a female receptacle (single-port).
- Mounting style: Right-angle pcb surface mount for low-profile layouts.
- Current rating: 0.5 a per contact for stable power delivery.
- Voltage rating: 40 v ac/dc reliable continuous operation.
- Flame resistance: Ul94v-0 rated housing for maximum safety.
- Operating range: Wide temperature tolerance from -55°c to 85°c.
Main Specifications:
General Information:
| Product No.: | HDMI-S-RA6-TSMT | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Female Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
