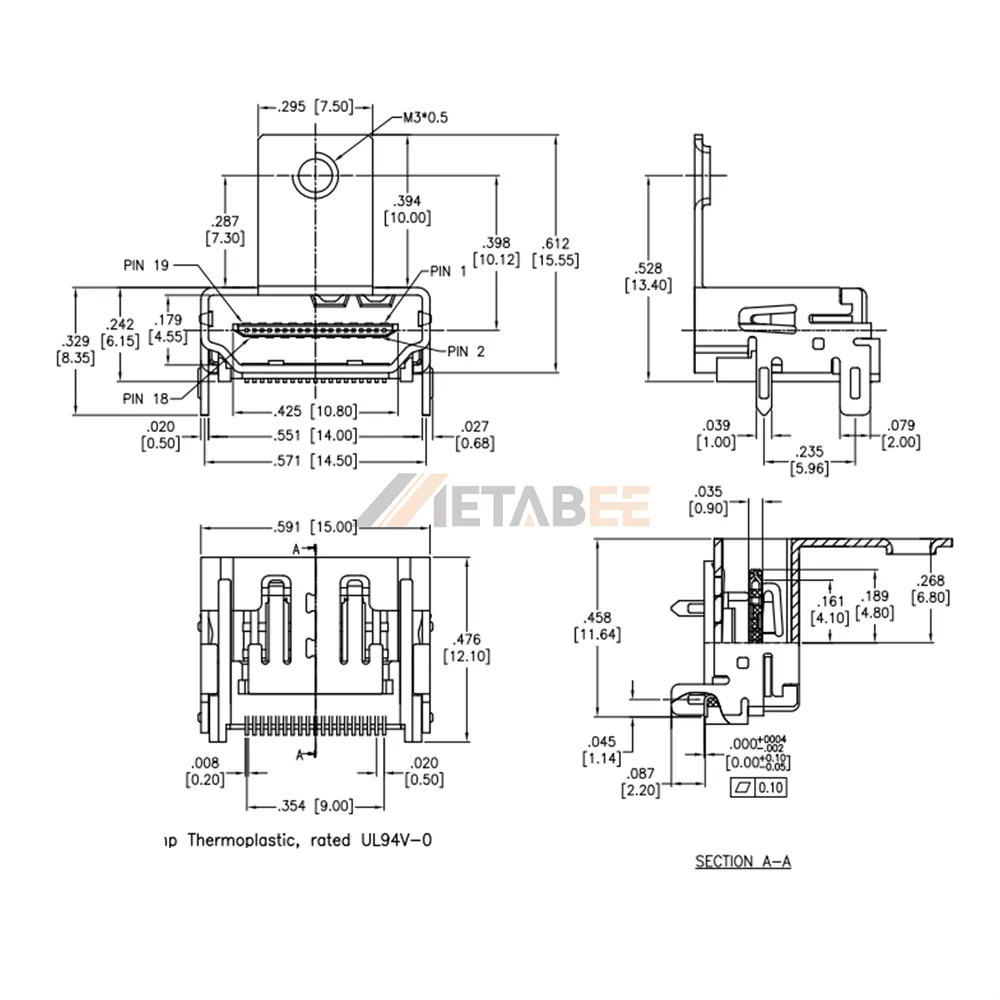

HDMI Type A Connector, Receptacle, PCB Surface Mount
Introduction:
This HDMI Type A receptacle delivers a dependable 19-pin interface in a right-angle, PCB surface mount configuration. Designed for streamlined board integration, the single-port connector suits compact audiovisual equipment, display modules, and embedded systems where space and signal integrity are critical.
The connector supports a rated current of 0.5A and a rated voltage of 40V, making it suitable for low-power digital video transmission. Built with UL94V-0 rated materials, it provides strong flame resistance for safer operation. It performs reliably across a wide temperature range from -55°C to 85°C, ensuring consistent functionality in demanding environments.
Key Features
- 19-pin HDMI Type A receptacle
- Right-angle PCB surface mount design
- Single port configuration
- 0.5A rated current and 40V rated voltage
- UL94V-0 flame retardant housing
- Operating temperature range of -55°C to 85°C
Main Specifications:
General Information:
| Product No.: | HDMI-S-RA-1-SMT-03B-MF-15 | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
