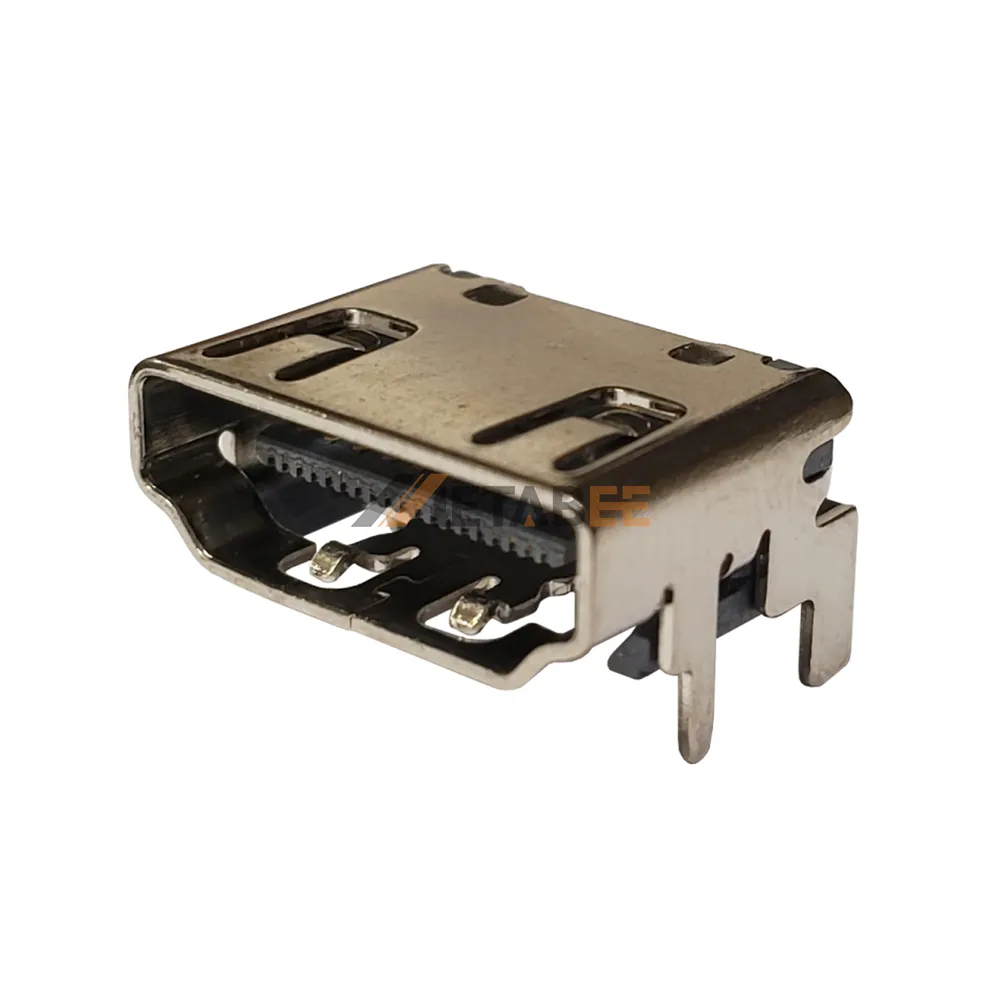

HDMI Type A 19 Pin Female Connector, SMT, R/A
Introduction:
Hdmi type a 19 pin female connector, smt, r/a is a robust surface-mount interface engineered for high-density pcb applications. This right-angle receptacle supports single-port hdmi connectivity, complying with type a standard for seamless audio/video transmission. Rated at 0.5a and 40v, it ensures stable performance in compact consumer electronics, industrial displays, and automotive infotainment systems. The connector’s 19-position design enables full hdmi functionality, including ethernet channel and audio return when paired with compatible cables. Its vertical profile saves board space while the solder tails provide reliable mechanical retention during reflow soldering.
Manufactured with ul94v-0 flame-retardant thermoplastic, this component offers exceptional safety against thermal runaway. The operating temperature range from -55°c to +85°c guarantees reliable operation under extreme environments, from cold storage units to engine-adjacent modules. Precision-stamped contacts with gold plating minimize signal degradation at high frequencies, while the right-angle orientation facilitates cable management in slim enclosures. Ideal for automated assembly, this connector reduces production costs and improves yield through its smt-friendly footprint and vacuum pick-up area.
Key Features
- Type a, 19-pin single-port receptacle for full hdmi compatibility
- Right-angle surface-mount design for space-constrained pcbs
- 0.5a, 40v electrical rating with stable signal integrity
- Ul94v-0 flame rating and -55°c to +85°c wide operating range
- Gold-plated contacts for low insertion loss and durability
- SMT package optimized for high-volume reflow soldering
Main Specifications:
General Information:
| Product No.: | HDMI21-S-RA-SMT-TR | |
| Connector Series: | HDMI 2.1 Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this HDMI Type A 19 Pin Female Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
