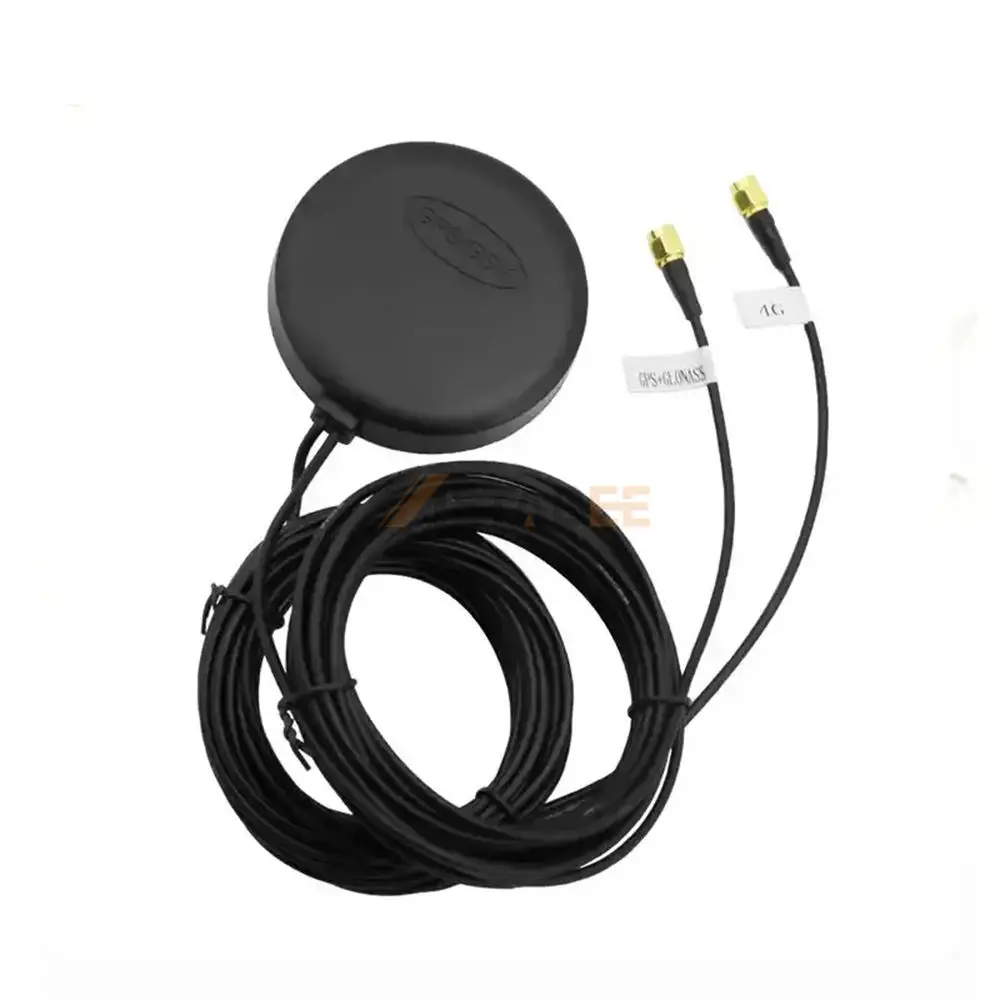

GPS/GNSS/WIFI/4G Multi-Band Antenna with SMA Male Connector, 4.5dBi, RG174 Cable, IP65
Introduction:
This GPS/GNSS/WiFi/4G Multi-Band Antenna delivers reliable positioning and high-speed data connectivity in one compact housing. Tuned for 1575.42MHz (GPS L1 band) while supporting broader cellular and Wi-Fi frequencies, it provides an omni-directional radiation pattern with 4.5dBi gain for balanced 360° coverage. The vertical polarization and low VSWR of ≤1.92 minimize signal reflection, ensuring stable transmission across multi-band environments. Built for outdoor applications such as telematics, fleet tracking, and IoT gateways, the antenna features an IP65-rated enclosure that withstands dust and water jets. It operates reliably from -30°C to 75°C, with 50W max input power and 50 Ohm impedance. The SMA Male connector comes pre-attached with a flexible RG174 cable, simplifying integration into compact devices and enclosures.
Key Features
- Multi-Band Support – Covers GPS/GNSS (1575.42MHz), WiFi, and 4G.
- Omni-Directional Pattern – 4.5dBi gain for full 360° signal coverage.
- Low VSWR (≤1.92) – High efficiency with minimal signal reflection.
- IP65 Rated – Dust-tight and protected against low-pressure water jets.
- SMA Male with RG174 Cable – Flexible, easy installation in tight spaces.
- Wide Temperature Range – Operates from -30°C to 75°C for outdoor use.
General Information:
| Product No.: | YC-GP00024 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male or Customized | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |
| Size: | – | |
| IP Rating: | IP65 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | Multi-Band | |
| Gain: | 4.5dBi | |
| VSWR: | ≦1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this GPS/GNSS/WIFI/4G Multi-Band Antenna with SMA Male Connector:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
